M600 Disassembly Instructions
Disassembling the M600 18
14.
Dismantle the Rear Brush as follows:
a.
Remove the main body with two hands, one each side, push out the rear brush.

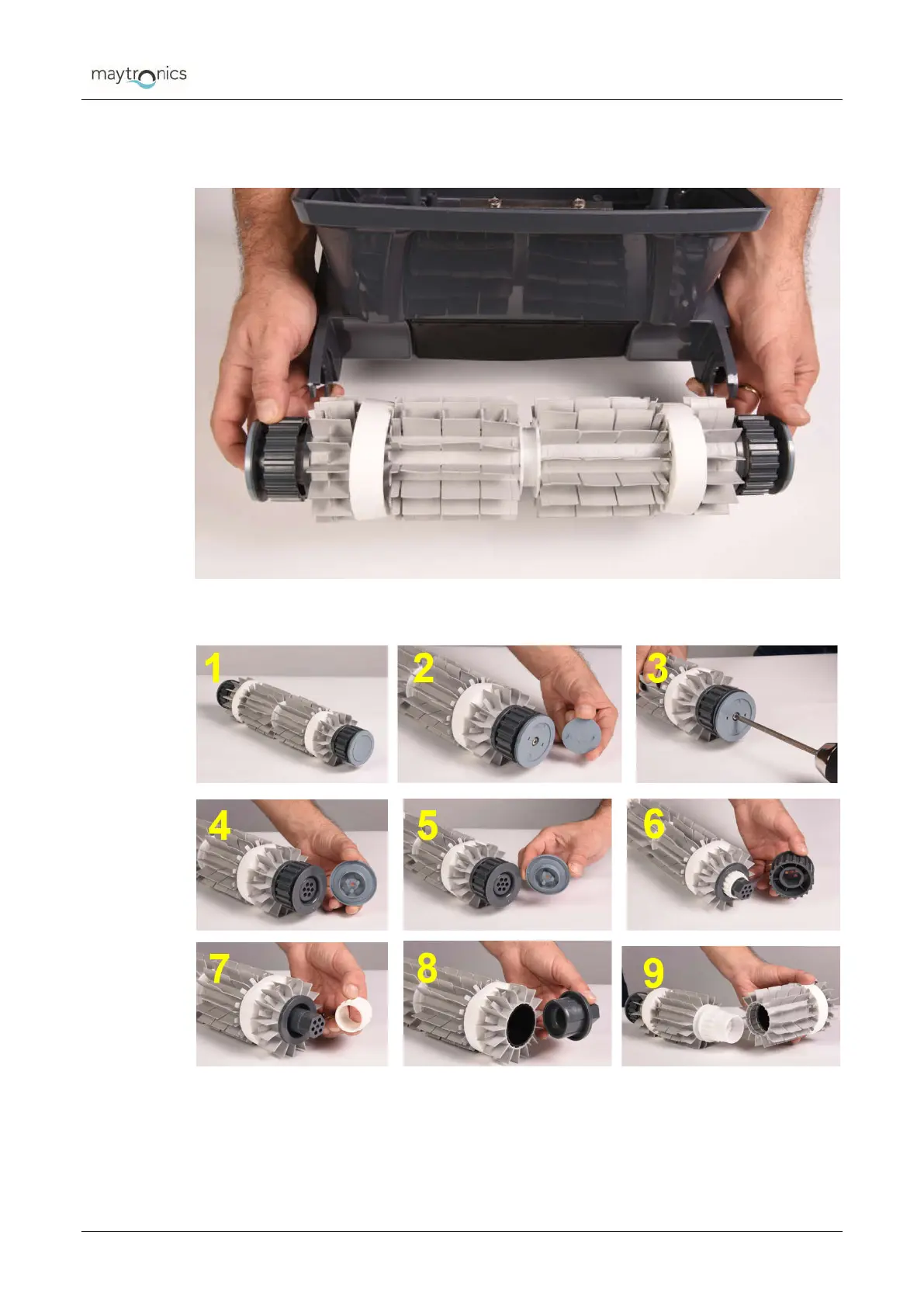

Figure 29: Dismantling the rear brush (step a)
b.
Dismantle the rear brush parts according to the numbered steps indicated below.
Figure 30: Dismantling the rear brush parts (step b)
