M600 Disassem
bly Instructions
7

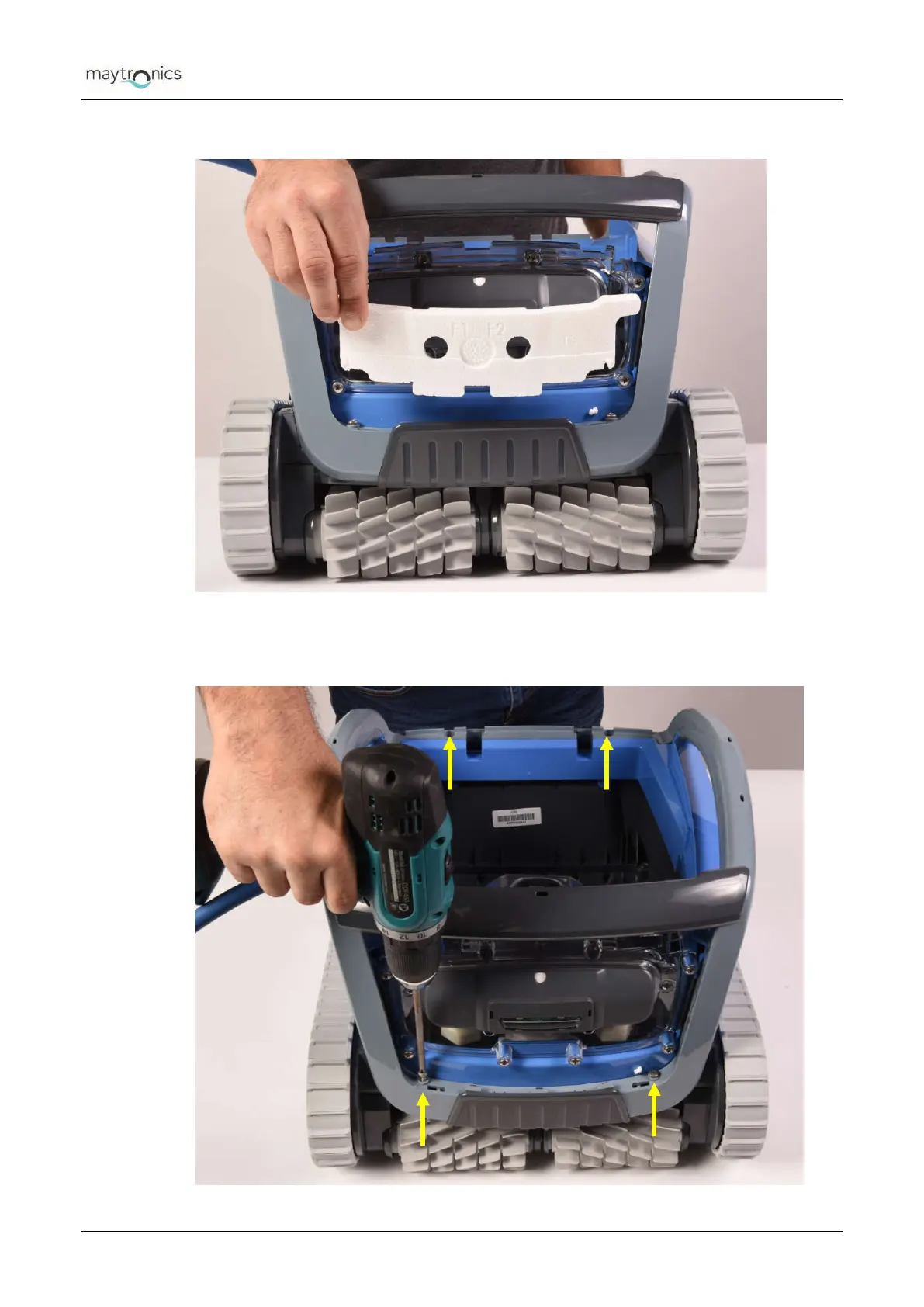

Remove the float f
rom its posi
tion.
Figure 7: Removi
ng the f
ront cover
5.
Dismantl
e the top body as foll
ows:
a.
Remove the
four
screws
that hol
d the top bo
dy in place.
Figure 8: D
ismantling the
top body
6
8
