M600 Disassembly Instructions
17
13.
Dismantle the motor unit as follows:
a.
Unfasten the two screws that secure the motor unit to the frame.

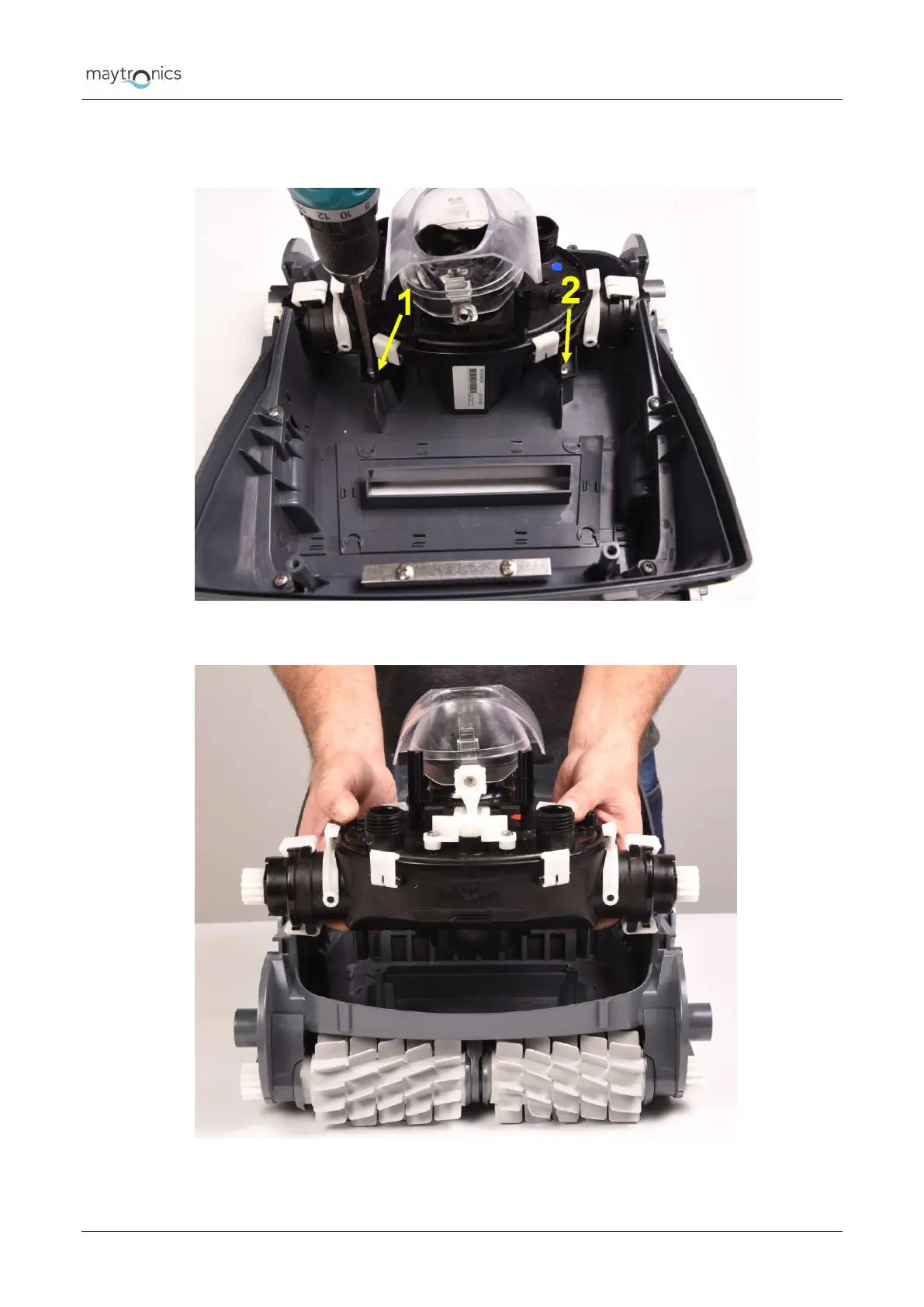

Figure 27: Dismantling the motor (step a)
b.
Pull up and remove the motor unit.
Figure 28: Dismantling the motor (step b)
