M600 Disassembly Instructions
23
18.
Using pliers, hold and gently push out each clip and remove the vacuum strips.

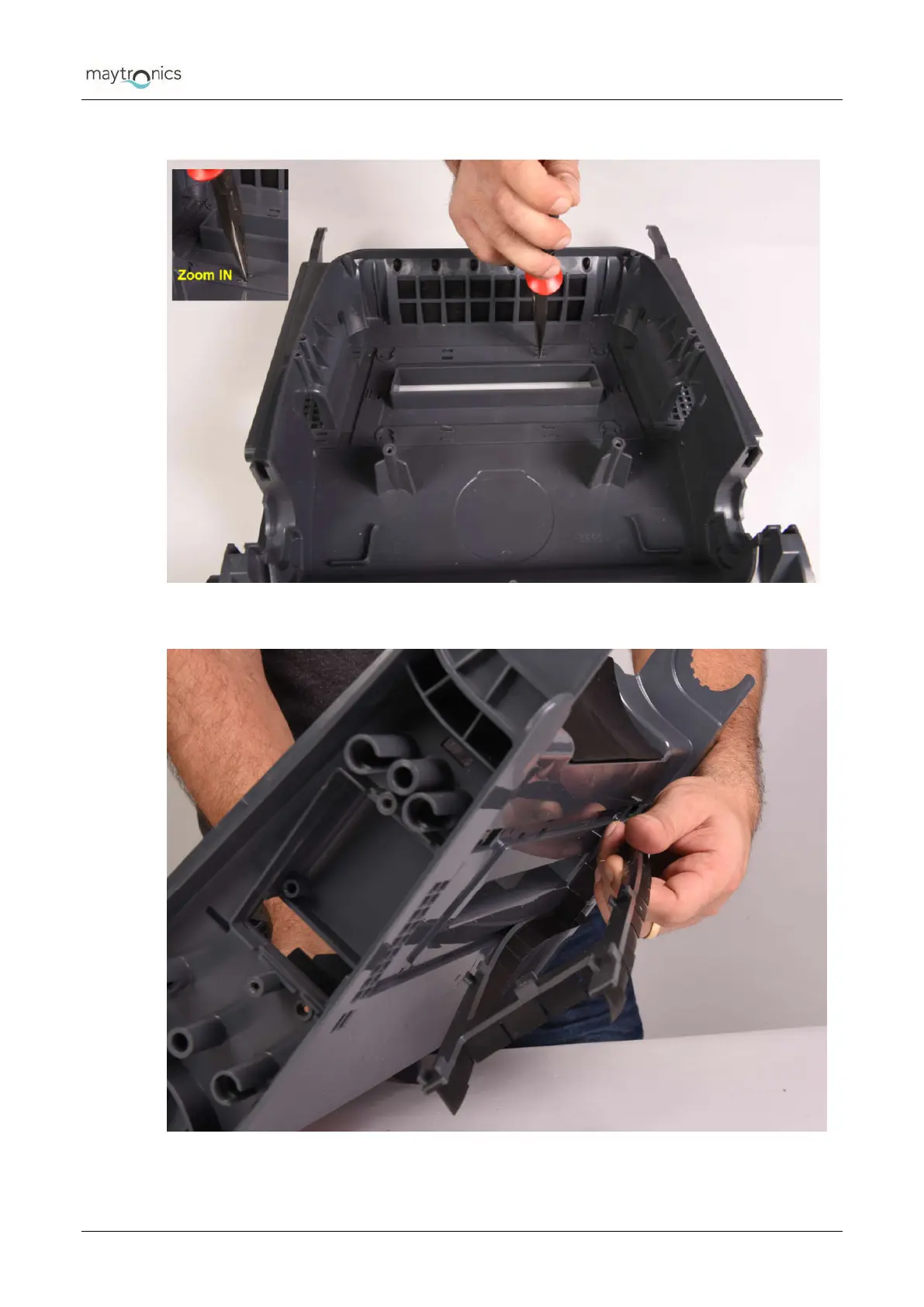

Figure 39: Removing the vacuum strip (step a)
Figure 40: Removing the vacuum strip (step b)
