G66M-R Transmission/Transaxle

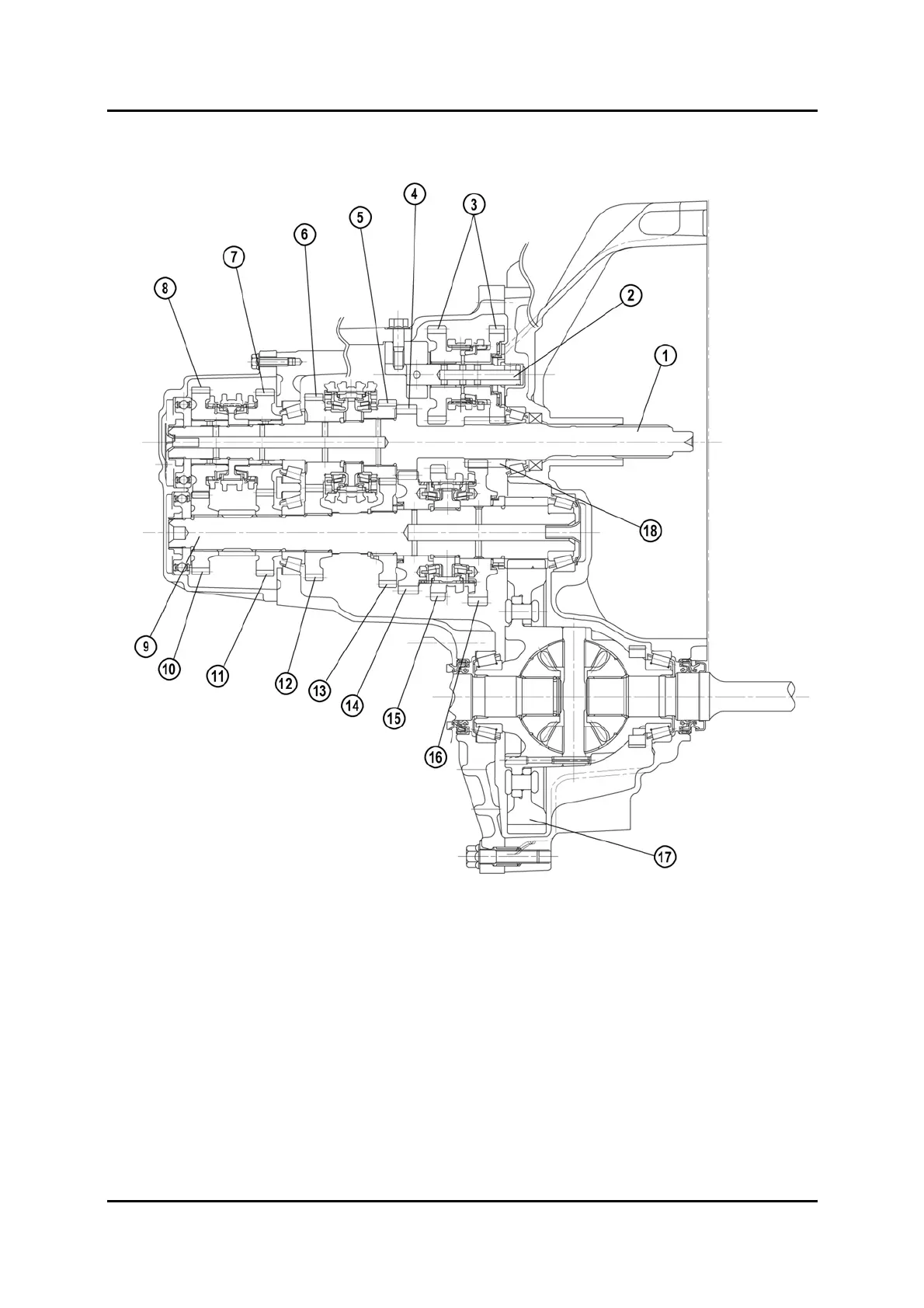

Cross-Sectional View
M6FL_05003
1 Primary shaft 10 Secondary Sixth gear
2 Reverse idler gear shaft 11 Secondary fifth gear
3 Reverse idler gear 12 Secondary fourth gear
4 Second gear 13 Secondary third gear
5 Third gear 14 Secondary second gear
6 Fourth gear 15 Clutch hub sleeve (reverse gear)
7 Fifth gear 16 First gear
8 Sixth gear 17 Differential gear
9 Secondary shaft 18 Reverse gear
05-8 Service Training Mazda6 Facelift
