Body & Accessories Accessories

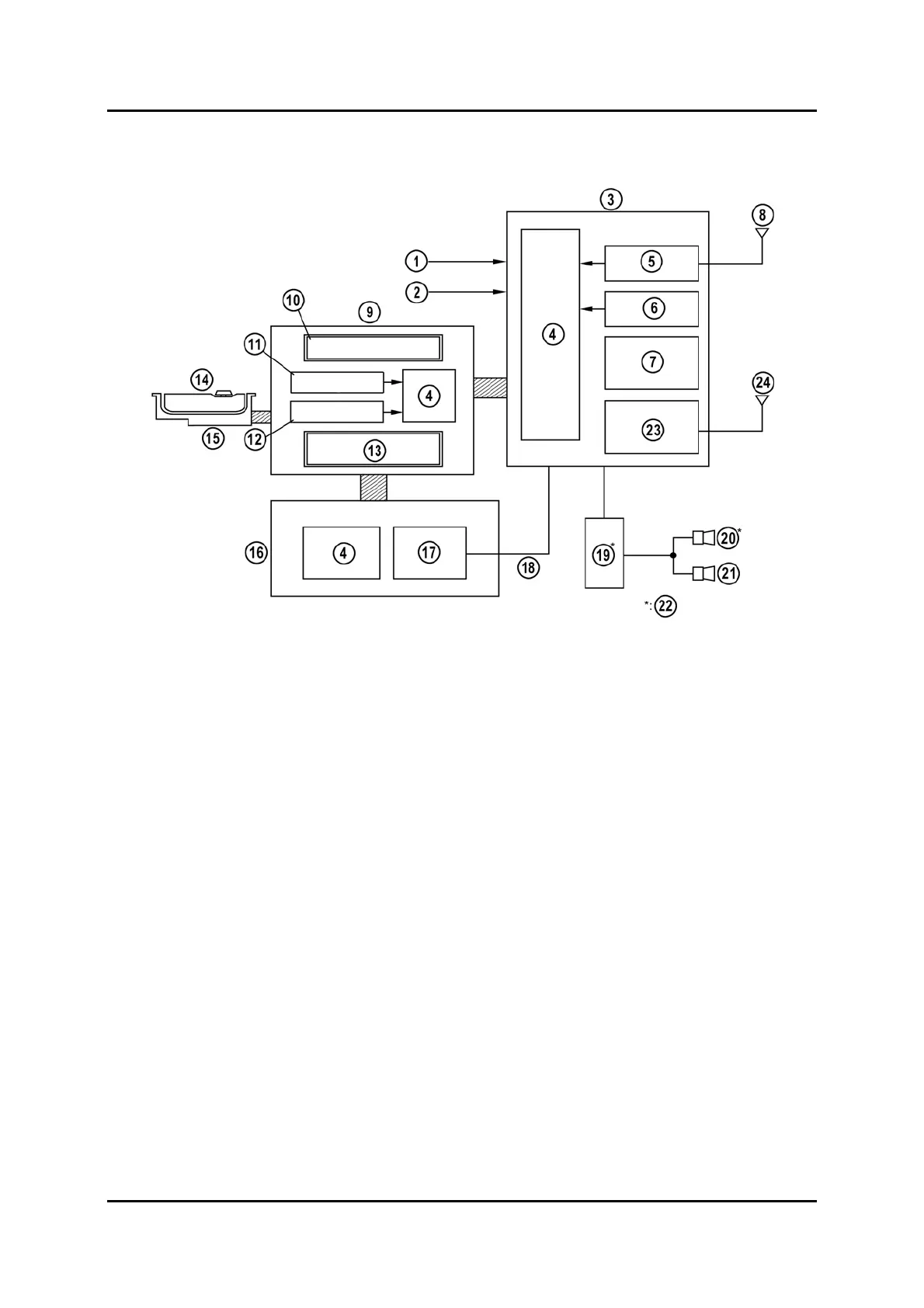

System Overview
M6FL_09042
1 ABS or DSC CM
13
Information display
2
TR switch (ATX) or back-up light
switch (MTX)
14 Remote control
3
Car-navigation unit 15
Cradle
4
CPU 16
Audio unit
5
GPS receiver 17
Power amplifier
6
Gyro sensor 18
Speaker output to driver’s side
7
DVD driver 19 Audio amplifier
8
GPS antenna 20
Tweeter (driver side)
9
LCD unit 21
Front door speaker (driver side)
10
LCD 22
BOSE system only
11
Tilt switch 23
RDS-TMC tuner
12
OPEN/CLOSE switch 24
RDS-TMC antenna
Service Training Mazda6 Facelift 09-71
