Transmission/Transaxle G66M-R
Transaxle Oil
• The G66M-R manual transaxle is filled with 2.95 litres of manual transaxle oil which
complies with the specification API Service GL-4 or GL-5 (grade) and SAE 75W-90
(viscosity) for all season use and SAE 80W-90 above 10° C.

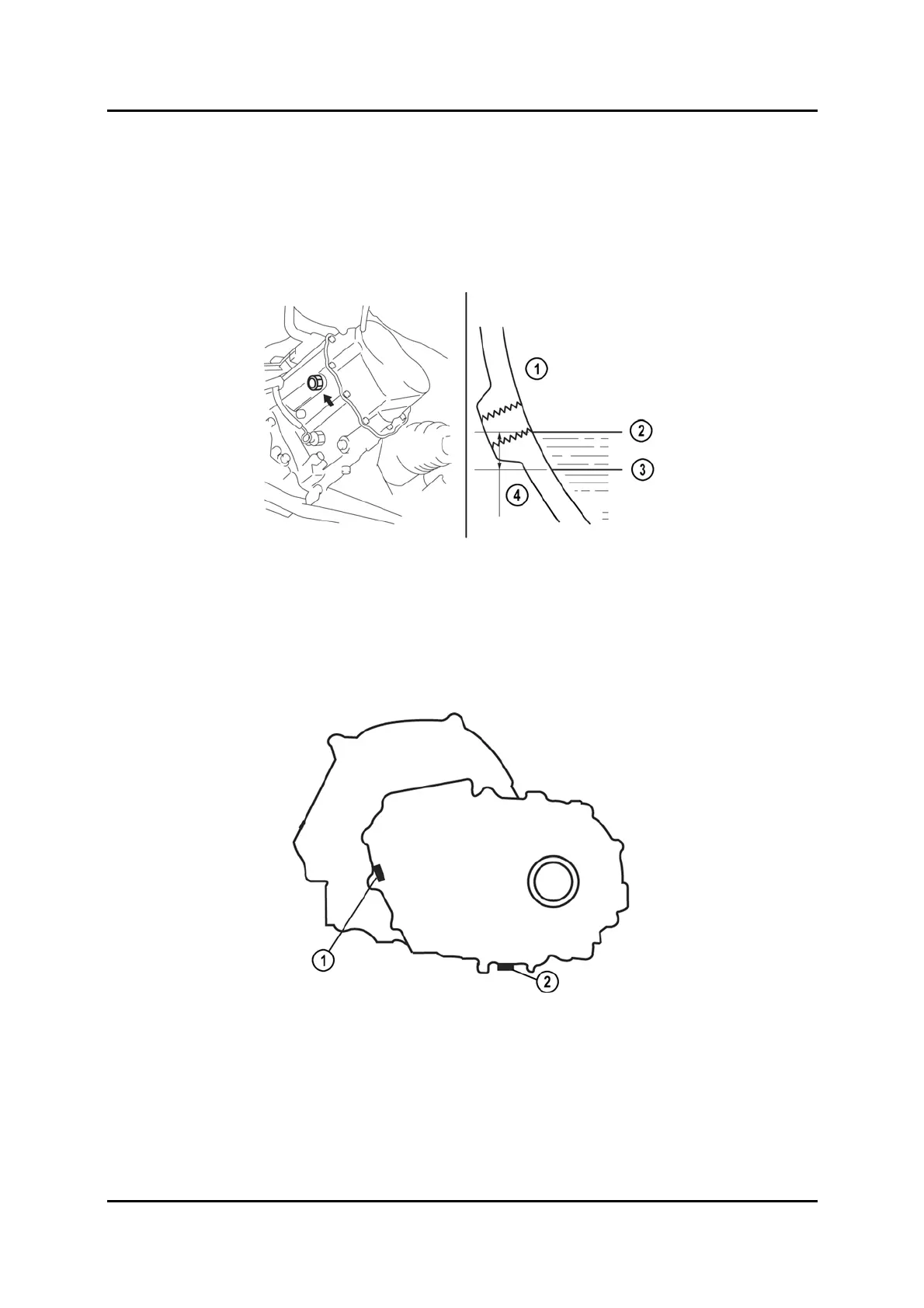

• To check the transaxle oil level, verify that the oil level is near the brim of the plug port.
M6FL_05012
1 Oil level 3 Low level
2 High level 4 About 10 mm
Drain Plug and Oil Level Plug Location
M6FL_05013
1 Oil level plug 2 Drain plug
Service Training Mazda6 Facelift 05-17
