Petrol Engines Engine
Crankshaft Position (CKP) Sensor

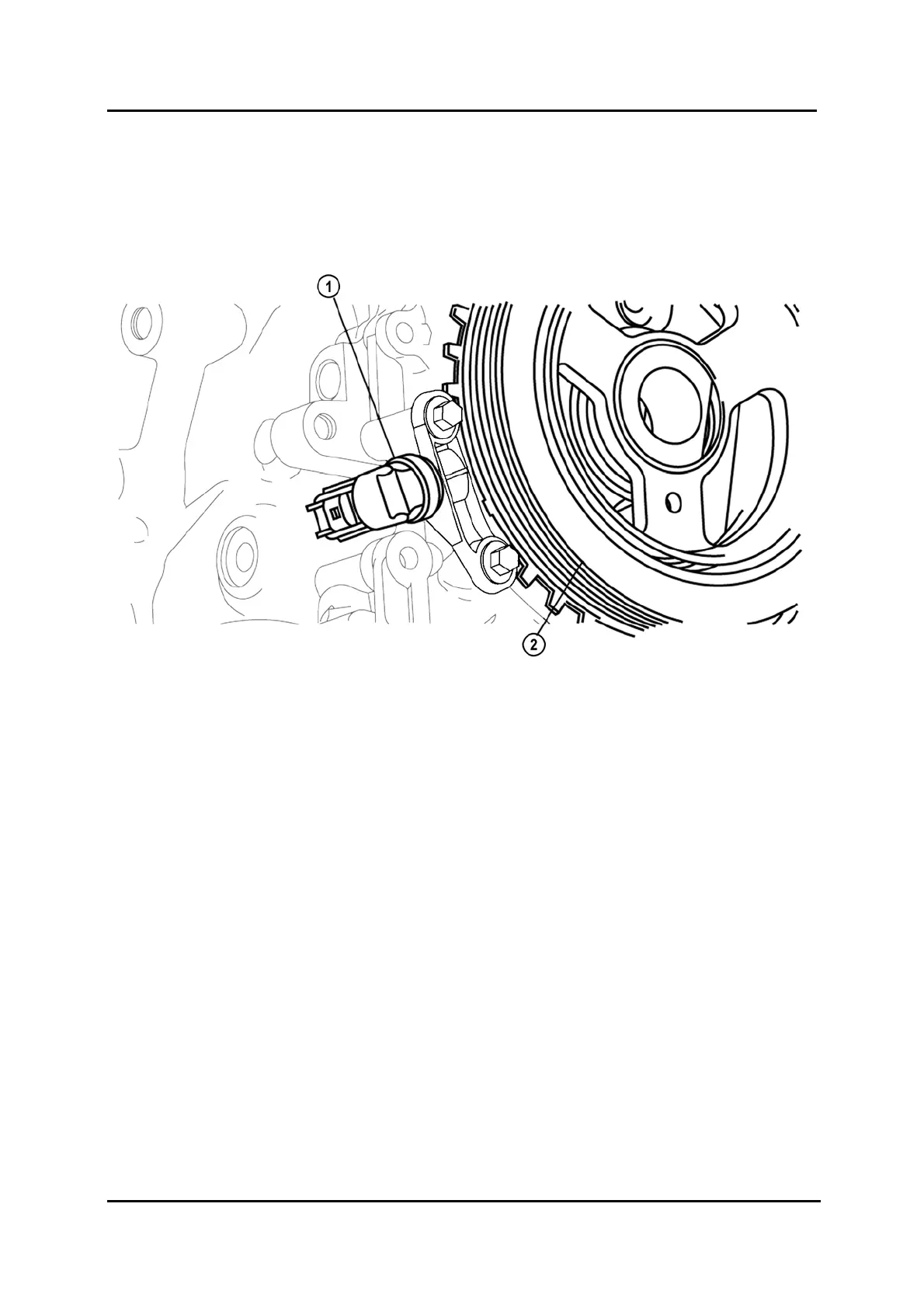

The CKP sensor is installed near the crankshaft pulley.
The crankshaft position sensor pulse wheel has 30 projections with 10° of crank angle
between the rising edge of each projection.
M6FL_01023
1 CKP Sensor 2 Crankshaft Pulley
01-26 Service Training Mazda6 Facelift
