Mazda 6 Facelift 2005 - Common Rail

Engine Diesel Engines
Common Rail
• A common rail located above the intake manifold has been introduced.
M6FL_01067

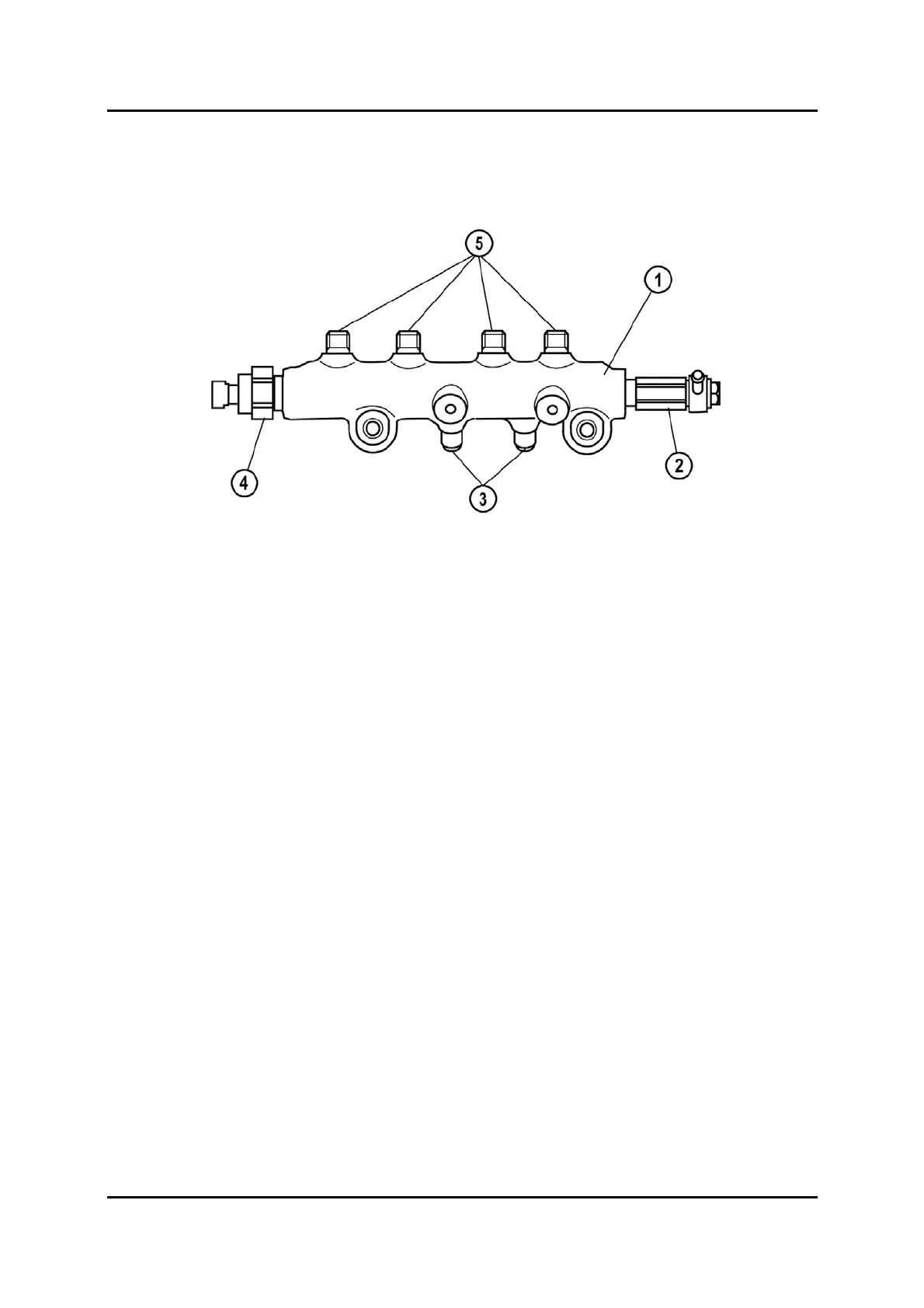

1 Common rail 4 Fuel pressure sensor
2 Pressure limiter valve 5 Connections (fuel injector-side)
3 Connections (high-pressure pump-side)
