Mazda 6 Facelift 2005 - Advanced Keyless Entry and Start System Operation

Body & Accessories Accessories

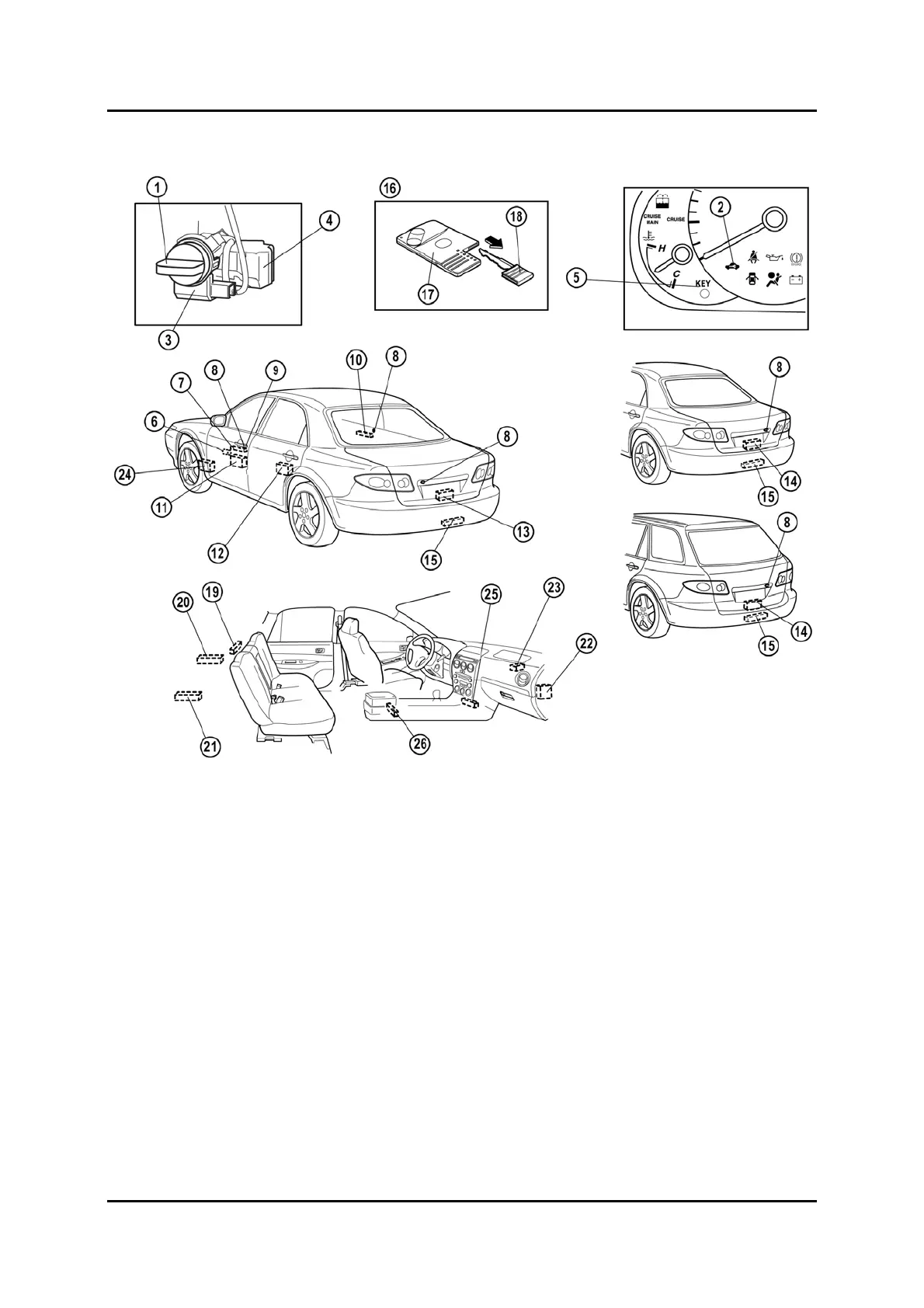

Advanced Keyless System Structural View
M6FL_09011
1
Start knob (ignition switch) 14 Liftgate latch and lock actuator (5HB,
WGN)
2 Security light (with immobilizer system) 15 Keyless antenna (exterior, rear)
3 Coil antenna (with immobilizer system) 16 Card key
4 Steering lock unit 17 Transmitter
5 Keyless warning light (green)
Keyless warning light (red)
18 Auxiliary key
6 Keyless buzzer 19 Keyless antenna (interior, rear) (4SD)
7 Keyless antenna (driver side) 20 Keyless antenna (interior, LR) (5HB,
WGN)
8 Request switch 21 Keyless antenna (interior, RR) (5HB,
WGN)
9 Front door key cylinder 22 Keyless control module
10 Keyless antenna (passenger side) 23 Keyless receiver
11 Front door latch and lock actuator 24 BCM
12 Rear door latch and lock actuator 25 Keyless antenna (interior, front)
13 Trunk lid opener (4SD) 26 Keyless antenna (interior, middle)
Service Training Mazda6 Facelift 09-19
