Body & Accessories Accessories
• Traffic events will be considered within a distance of 25 km from the current location of
the vehicle and be displayed by a sign on the display in the scale 50m…4km.
• The colour and type of the sign depends on the traffic information. The colours which are
related to the events are described in the following table:
Category Colour
Stationary Traffic Red
Traffic Jam Orange
Accidents Pink
Closed Road Black
Road Works/Danger Pink
Road Conditions/Weather/Delays Yellow
Parking/Out of order Grey
M6FL_09T011

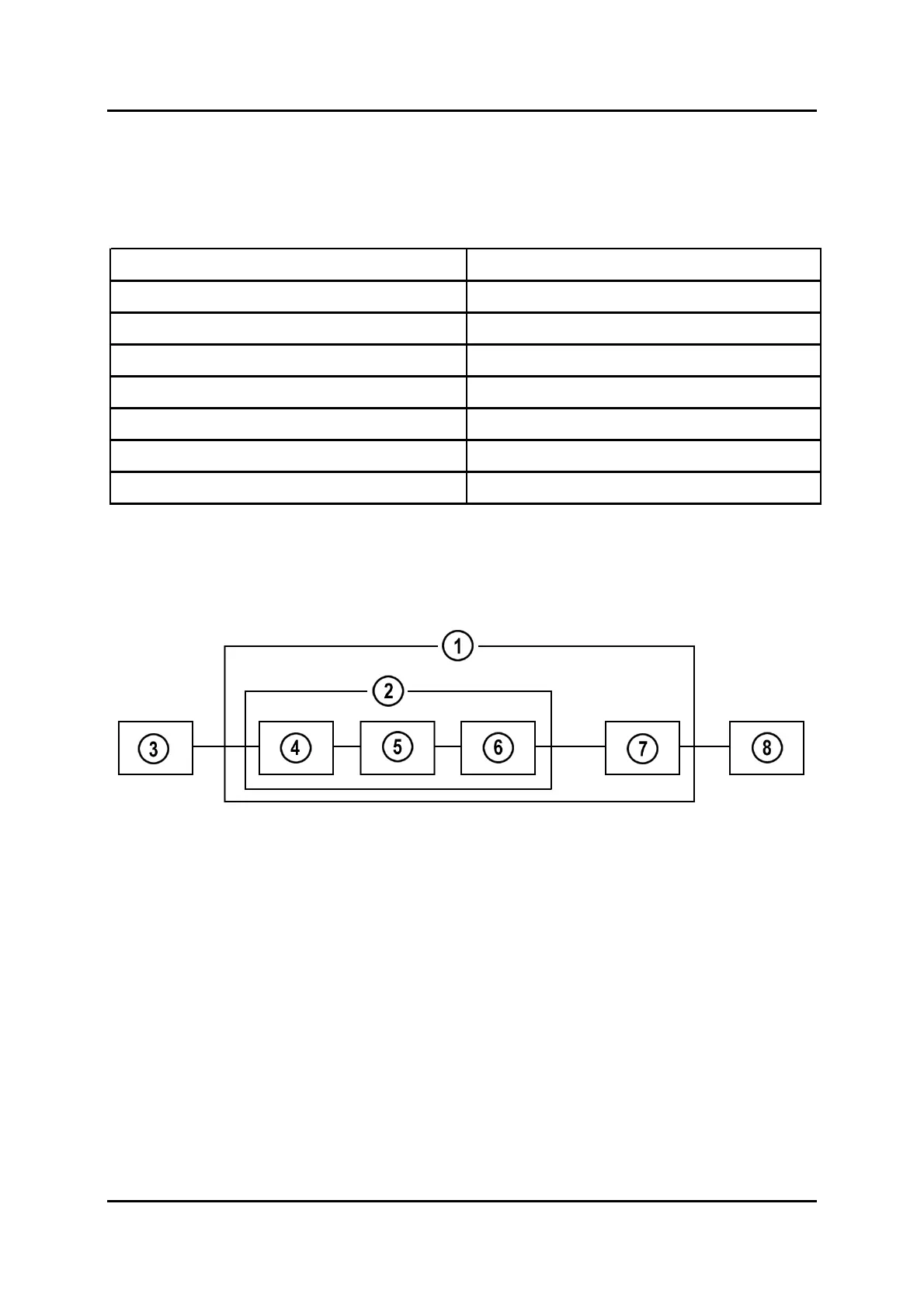

• Inside the vehicle the TMC signals are processed as shown below.
M6FL_09054
1 Navigation ECU (Electronic Control
Unit)
5 Decoder
2 RDS-TMC Receiver 6 CPU Communication Control
3 Vehicle Antenna 7 Navigation
4 FM Tuner 8 Display
