MCCOY KT5500 - Illustration 2.0.2: 80-0420-23 Power Tong Dimensions & Hazards

©2008-2017 McCoy Global
Manual № TM12012
80-0420-23 POWER TONG
Section 2
Page 2.4
Description & Specications

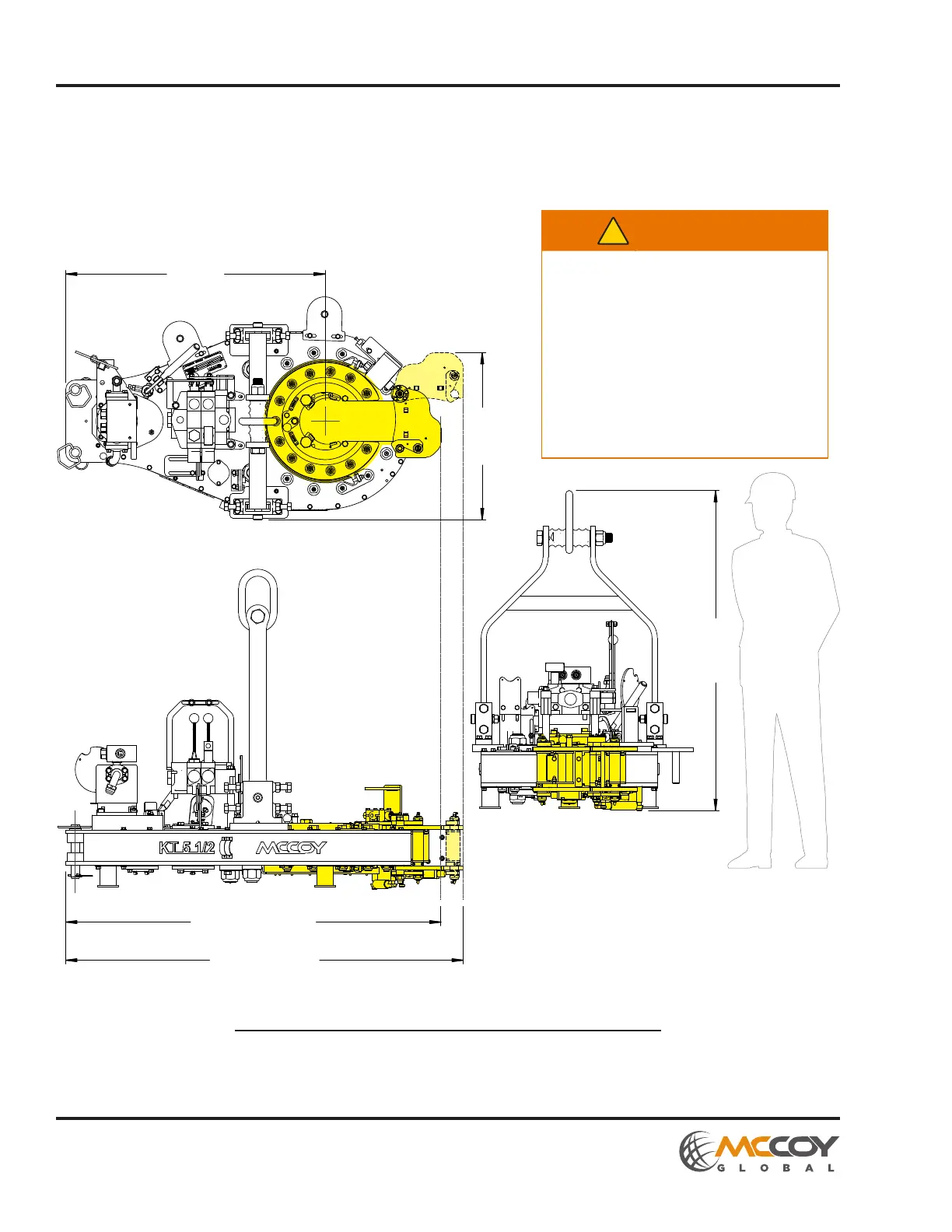

Illustration 2.0.2: 80-0420-23 Power Tong Dimensions & Hazards
2.0 EQUIPMENT DESCRIPTION (CONTINUED):
!
WARNING
IN ADDITION TO THE HAZARD AREAS
OF THIS EQUIPMENT THAT ARE
COATED YELLOW, THE ROTATING
CAGE PLATE ASSEMBLY POSES
A SIGNIFICANT HAZARD WHEN
THE EQUIPMENT IS ACTIVE. KEEP
HANDS CLEAR OF THE CAGE PLATE
WHEN EQUIPMENT IS ENERGIZED.
SAFE AREAS TO HANDLE WHILE
THE EQUIPMENT IS ENERGIZED ARE
INDICATED BY GREEN COATING.
24"
(60.6 cm)
DOOR CLOSED - 54"
(136.2 cm)
DOOR OPEN - 57"
(144.3 cm)
37"
(94.2 cm)
46"
(116.0 cm)
