Installation & Commissioning

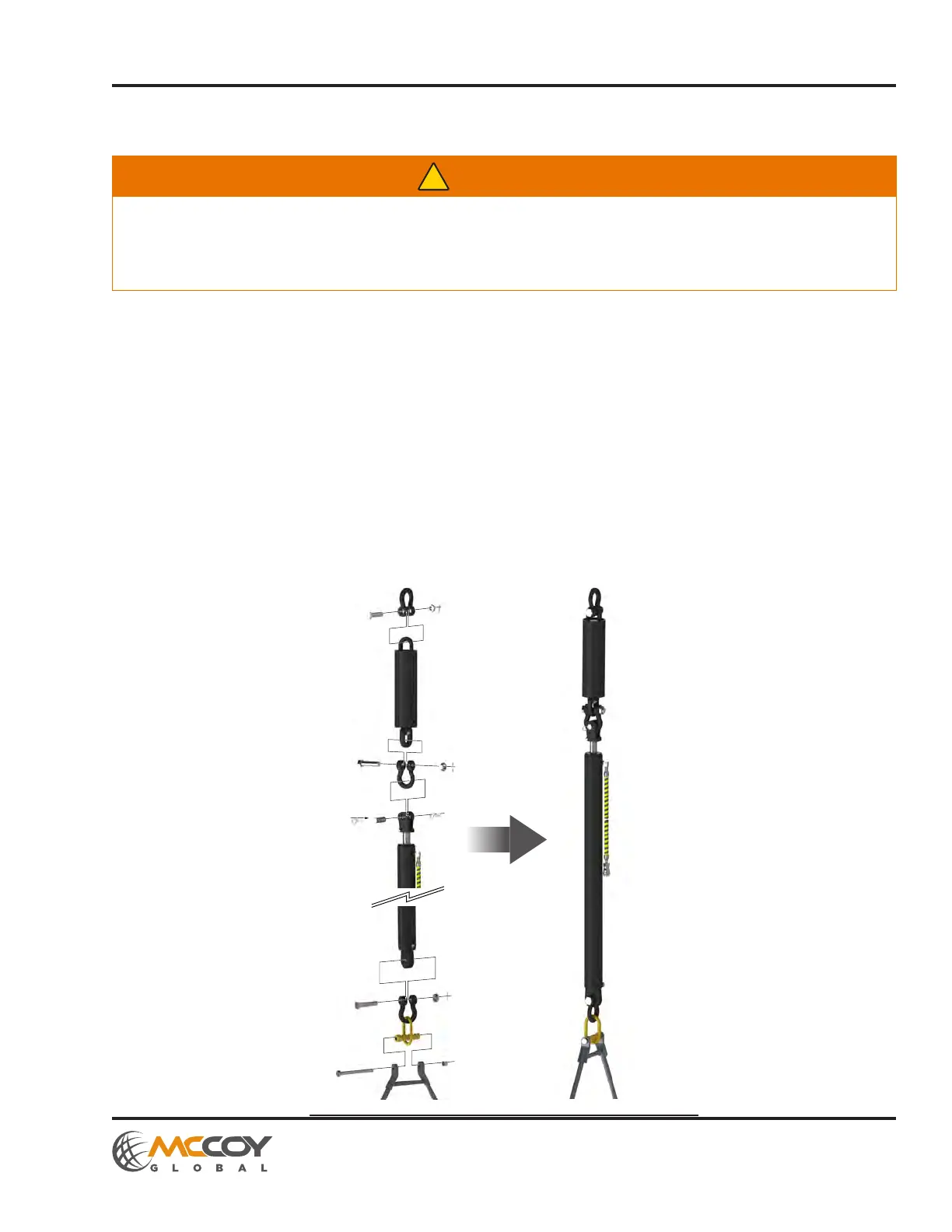

Illustration 3.2.1: Lift Cylinder & Spring Hanger Installation
3.2 LIFT CYLINDER INSTALLATION AND SAFETY
Follow these instructions for safely and securely installing the lift cylinder. Where not supplied, use shackles that are
safely rated for the maximum lifting capacity of the spring hanger.
!
WARNING
TEST LIFT CYLINDER BEFORE INSTALLATION. REFER TO THE LIFT CYLINDER TECHNICAL MANUAL
FOR DETAILED TESTING AND OPERATING PROCEDURES, AND DETAILED SAFETY GUIDELINES.
IF USING A SPRING HANGER ITS WEIGHT MUST BE ACCOUNTED FOR WHEN CALCULATING TOTAL
SUSPENDED WEIGHT.
3.2.1 Installation Procedure
1. Attach an appropriate shackle to the fixed end of the spring hanger. Ensure the nut securing the shackle bolt
is secondarily retained by a cotter pin.
2. Use a crane to hoist the spring hanger by the shackle installed in the previous step. Install a second shackle
to the rod end of the spring hanger. Ensure the nut securing the shackle bolt is secondarily retained by a
cotter pin.
3. Lay the lift cylinder on its side near the hoisted spring hanger. Remove the two R-clips securing the clevis pin
in the clevis of the lift cylinder, and remove the clevis pin.
4. Insert the shackle on the bottom of the spring hanger inside the lift cylinder clevis, and secure it in the clevis
with the clevis pin. Replace the two R-clips in the clevis pin.
5. Hoist the lift cylinder and spring hanger.
6. If not already done, remove the supplied shackle from the lift cylinder.
7. Place the shackle around the master lifting link on the tong sling, and re-attach the shackle to the lift cylinder.
Ensure the nut securing the shackle bolt is secondarily retained by a cotter pin.
