MCCOY KT5500 - Illustration 5.5.1: Lubrication Diagram

©2008-2017 McCoy Global
Manual № TM12012
80-0420-23 POWER TONG
Section 5
Page 5.6
Maintenance

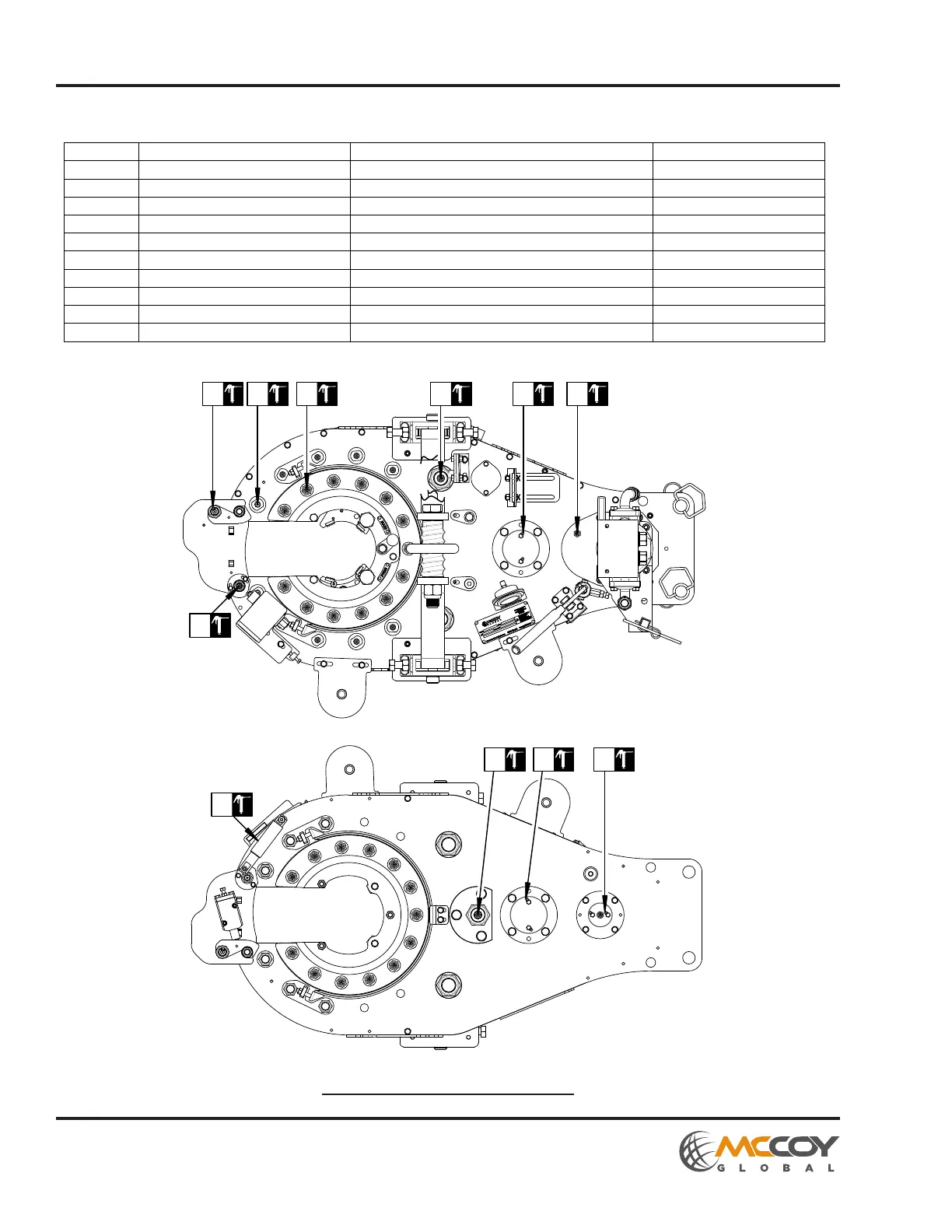

Illustration 5.5.1: Lubrication Diagram
5.5 LUBRICATION INSTRUCTIONS (CONTINUED):
TOP VIEW
BOTTOM VIEW
NUMBER OF LOCATIONSMIN. LUBRICATION AMOUNT (EACH LOCATION)LUBRICATION LOCATIONITEM NO.
2
2 SHOTSDOOR LATCH
1
10
2 SHOTSDUMBELL ROLLER ASSEMBLY
2
26
2 SHOTSCAM FOLLOWER ASSEMBLY
3
2
2 SHOTSROTARY IDLER GEAR ASSEMBLY4
42 SHOTSPINION GEAR ASSEMBLY
5
1
4 SHOTSGEARBOX
6
2
2 SHOTSDOOR PIVOT SHAFT7
2
OIL AS NECESSARYDOOR CYLINDER
8
1
2 SHOTS3/4 GEAR ASSEMBLY
9
3
2 SHOTSCLUTCH ASSEMBLY
10
10
9
8
5
6
5
4
3
