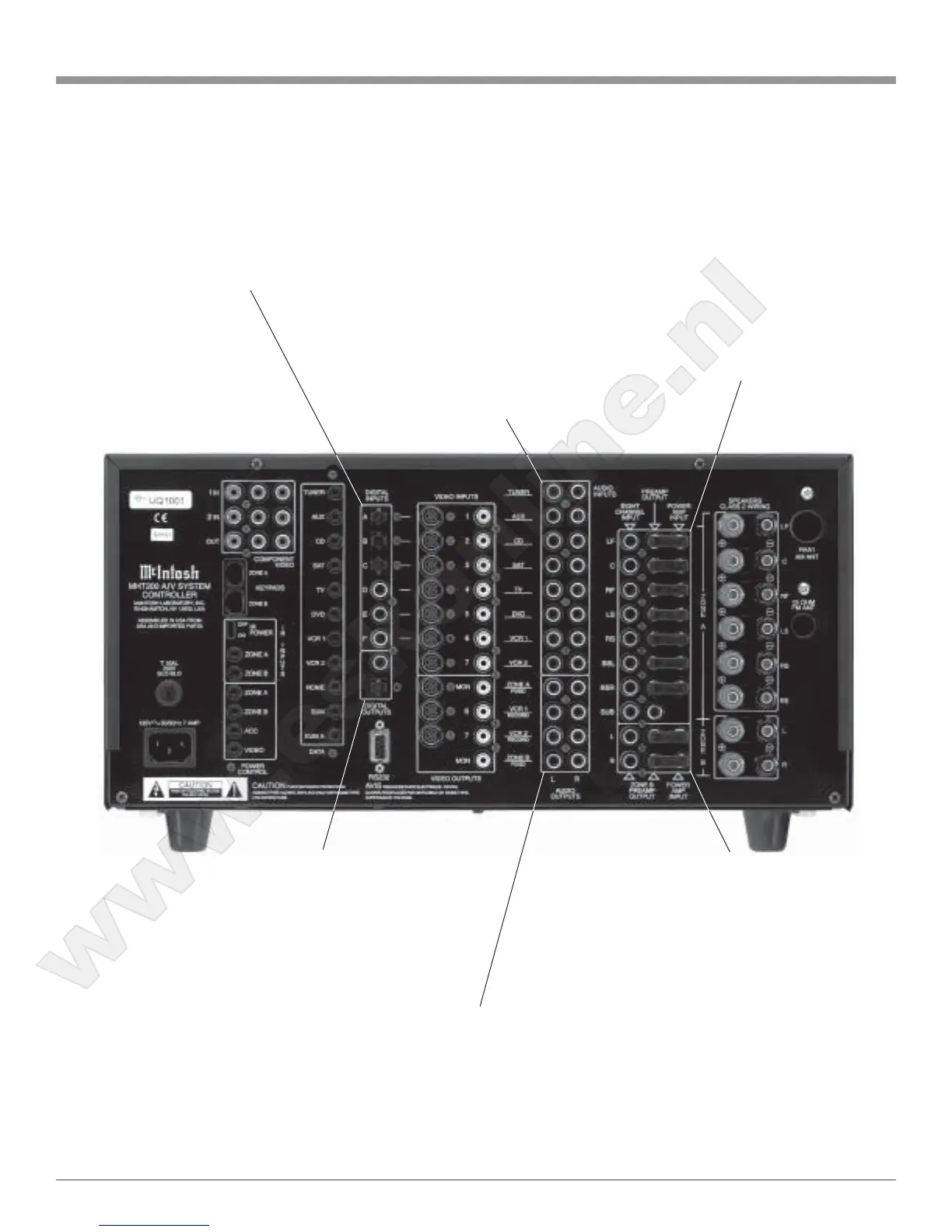

Rear Panel Audio and Digital Connections
EIGHT CHANNEL INPUTs
accept signals from a component
such as DVD-Audio/SACD
Players or an external processor.
ZONE A PREAMP OUTPUTs
provide all eight audio channel
signals to the MHT200 Power
Amplifier Inputs via the Exter-
nal McIntosh Plug In Jumpers.
ZONE A POWER AMP INPUTs
are for all eight Audio Power
Amplifier Channels
ZONE A FIXED OUTPUTS send a fixed line level,
two channel analog signal as selected by the INPUT
(Zone A Control). The OUTPUTS VCR 1 and 2 sup-
ply analog audio record signals for recorders. The
ZONE B OUTPUTS send a two channel signal from
the analog inputs as selected by the INPUT B Con-
trol
AUDIO INPUTS (1 thru 7) for analog audio
signals from a TUNER, AUX, CD, SAT, TV,
DVD,VCR1 or VCR2 Components. The
TUNER Left and Right jacks will provide
the Tuner Audio Output Signals when the
TM1 AM/FM Tuner Module is installed in-
side the MHT200
DIGITAL OUTPUTS both
optical and coaxial, provide
a digital audio signal to an
external digital processor
ZONE B PREAMP OUTPUTs
provide Left and Right Channel
Audio Signals to the MHT200
Power Amplifier Inputs via the
External McIntosh Plug-In
Jumpers. ZONE B POWER
AMP INPUTs are for both Au-
dio Power Amplifier Channels
The Optical DIGITAL INPUTS (A, B
and C) AUX, CD and SAT receive a
digital audio signal from the Optical
Output of a component. The Coaxial
DIGITAL INPUTS (D, E and F) TV,
DVD and VCR1 receive a digital au-
dio signal from the Coaxial Output of
a component
