12

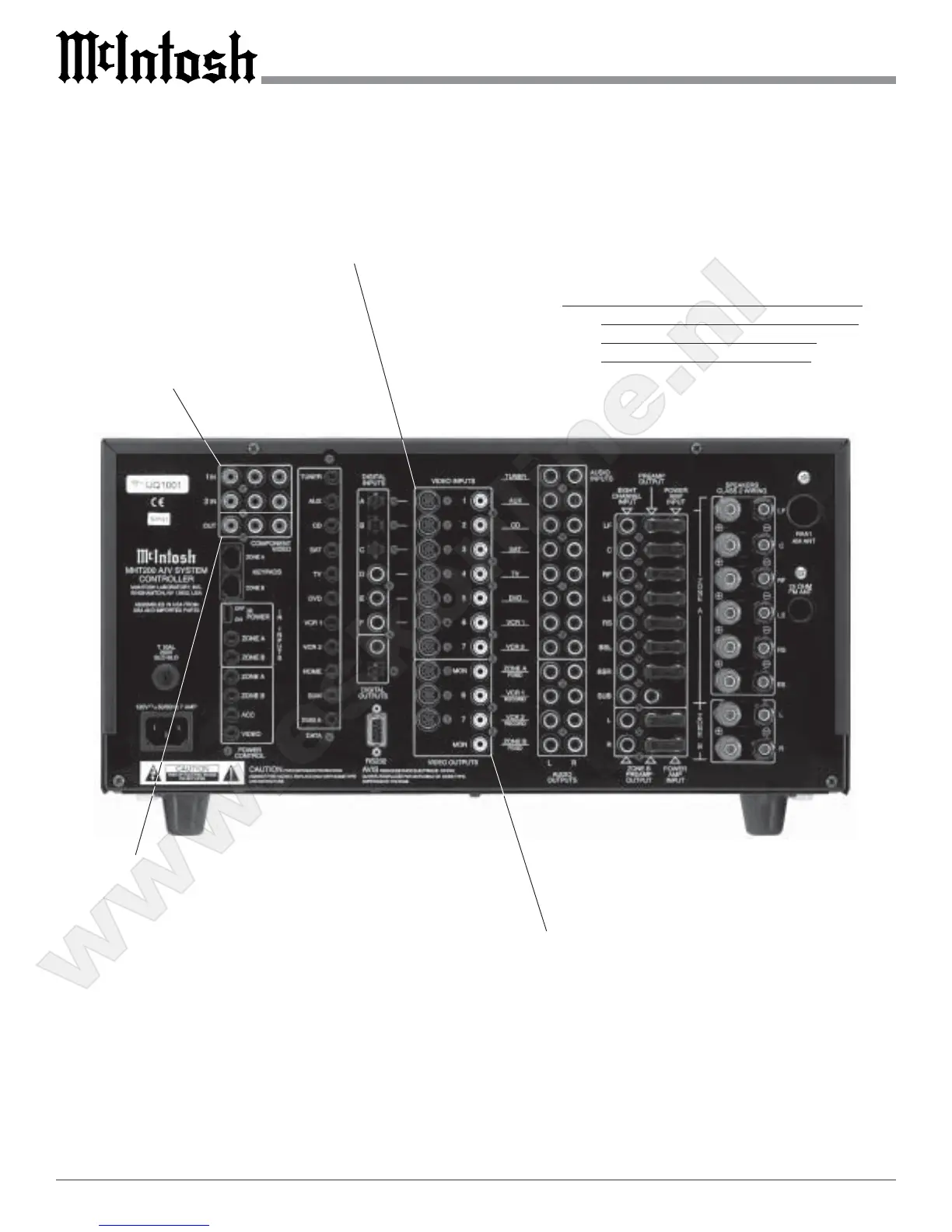

Rear Panel Video Connections
VIDEO INPUTS (1 thru 7) are for both
S-Video and Composite Video Signals
from a AUX, CD, SAT, TV, DVD,VCR1
or VCR2 components
COMPONENT INPUTS receive
Component Video (Y, P
R
and P
B
)
Signals from two Component
Video Sources
COMPONENT OUTPUTS send
Component Video (Y, P
R
and P
B
)
Signals to the ZONE A Video
Monitor
VIDEO OUTPUTS are for supply S-Video and
Composite Video Signals for recorders VCR 1
and 2. There are also MONitor Zone A S-Video
and Composite Video Signal Outputs for a
monitor/TV located in Zone A. The MONitor
Zone B has a Composite Video Signal Output
for monitor/TV located in Zone B
Note: If the MHT200 A/V System Controller has
the TM1 AM/FM Tuner Module installed,
proceed to page 59 for Rear Panel
Antenna Connection Information.
