COMPACT PIEZO LED

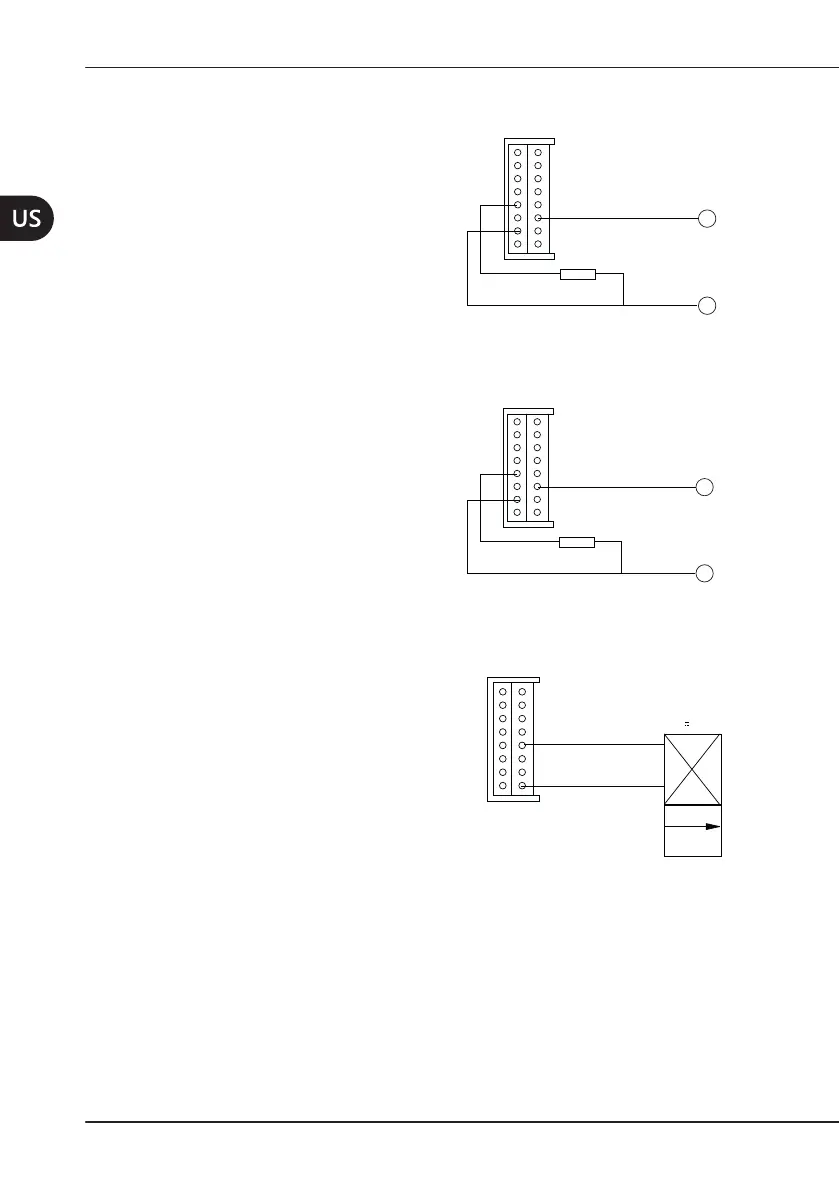

4.3.3.4 0-5VPowerRegulation
The power can be modulated with a
variable voltage between 0 and 5 Volts
appliedbetweenpins6and10(ground).
Connecta82kOhm,1/8W,1%resistance
between pins 12 and 10.
0-5V 1mA
1
2
3
4
5
6
7
8
13
16
15
14
12
9
10
11
+
-
82 kOhm 1/8W, 1%
resistance
4.3.3.5 0-10VPowerRegulation
The power can be modulated with a
variable voltage between 0 and 10 Volts
appliedbetweenpins6and10(ground).
Connecta10kOhm,1/8W,1%resistance
between pins 12 and 10.
0-10V 1mA
1
2
3
4
5
6
7
8
13
16
15
14
12
9
10
11
+
-
10 kOhm 1/8W, 1%
resistance
4.3.4 SolenoidValveControl
The compact piezo LED provides an
enabling in output for a solenoid valve
on the handpiece irrigation circuit. The
output distributes 24V with maximum
power 2.5W.
1
2
3
4
5
6
7
8
13
16
15
14
12
9
10
11
Solenoid valve
(optional)
24V 2,5W
