Medeli MD500 - MIDI; Connection rule; The method of connection; Major application

MIDI
Musical Instrument Digital Interface. The
standard interface between PC and
Electronic instrument.
The keyboard is equipped with standard
MIDI interface, including 1 MIDI IN and 1
MIDI OUT.
Connection
The keyboard can connected with PC or
other MIDI equipment.

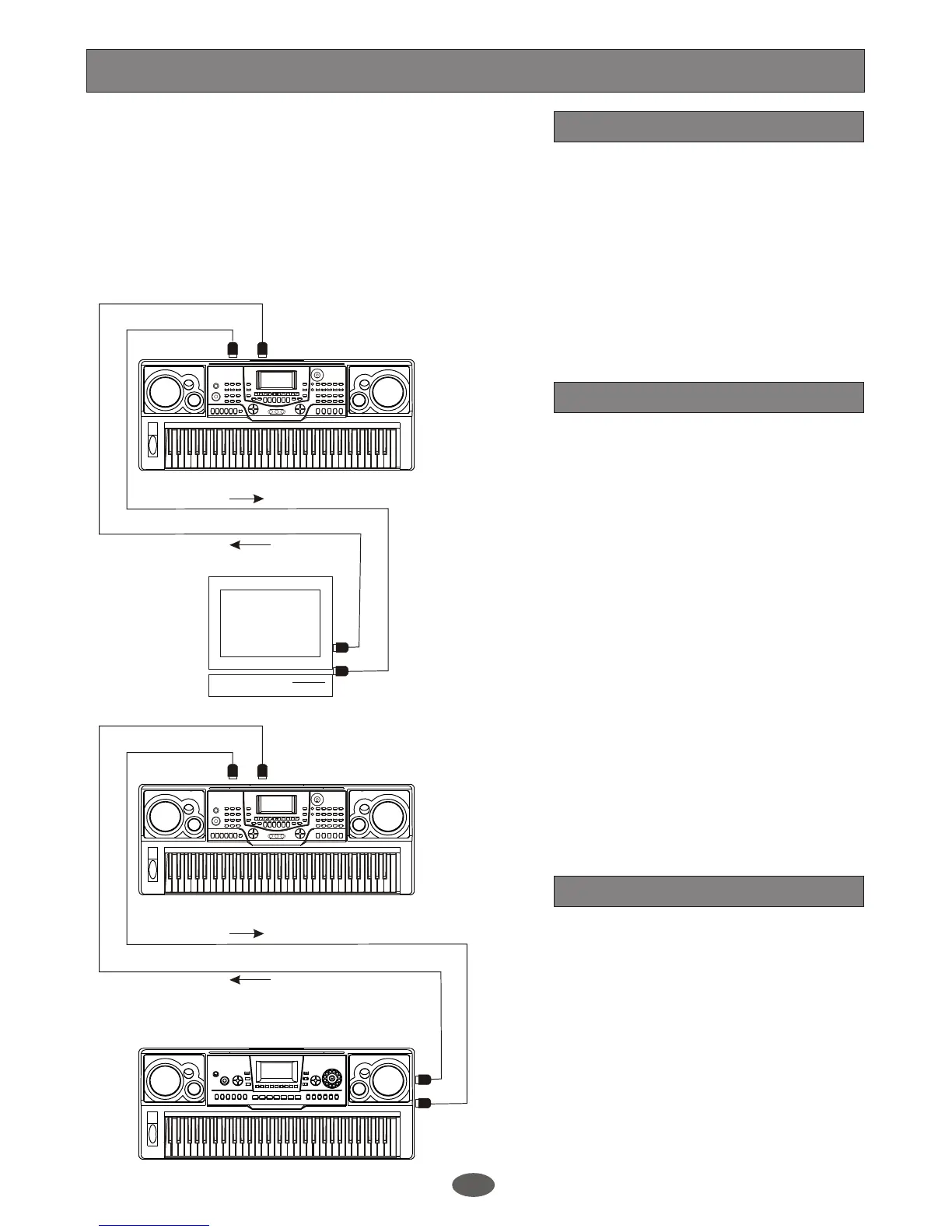

MIDI Connection
Major application
1.
1.
2.
3.
2.
The method of connection
Connect the MIDI interface with PC.
Connect the MIDI interface with the other
MIDI interface.
1.
The keyboard can control other equipment
or electronic instrument.
Other equipment can control the keyboard.
PC recorded data(MIDI) can be played on
the keyboard.
32
MIDI
What is MIDI?
Connection rule
In midi connection, the equipment which
control another equipment is called Host
Equipment ,while another is called affiliated
Equipment.
The host equipment's MIDI OUT connect
with affiliated equipment's MIDI I.
You can not connect MIDI OUT with MIDI
IN on the same equipment.
MIDI transmit
MIDI IN
MIDI OUT
MIDI receive
MIDI IN MIDI OUT
MIDI transmit
MIDI IN
MIDI OUT
MIDI receive
MIDI IN MIDI OUT
