Medeli MD500 User Manual

Improper handling of the batteries can cause them to burst or leak, creating the danger of personal
injury or damage of the keyboard. Be sure to take the following important precautions when using
batteries:
Never use batteries of different types.
Never mix old batteries with new ones.
Always make sure to remove the batteries from the keyboard's battery compartment.
When the keyboard is not expected to be used for a long period of time, remove the batteries from
the keyboard.
Replace a complete set of eight new batteries as soon as possible after any sign of discharge.

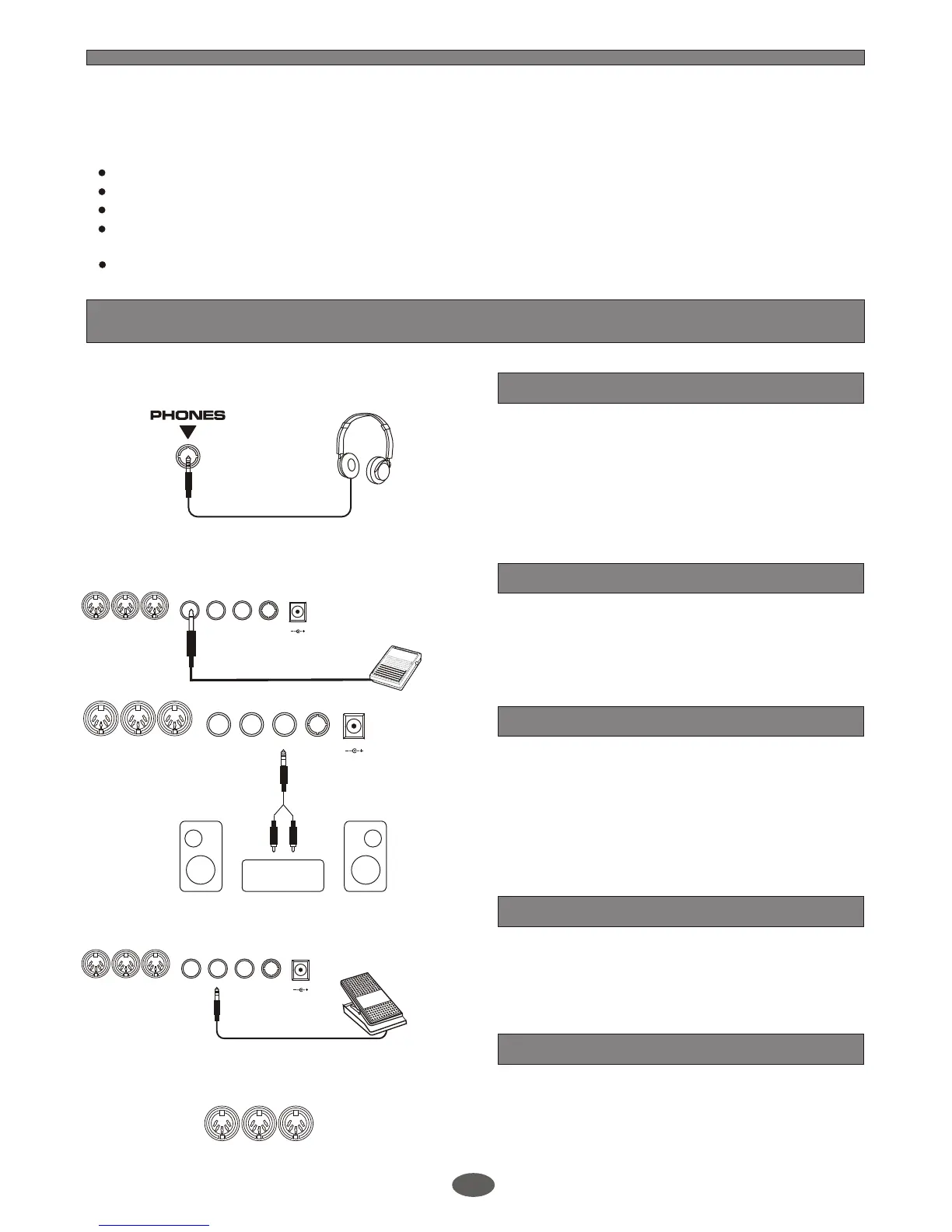

The headphone jack
A pair of stereo headphones can be plugged into
the PHONES jack for private practice or late
night playing. The internal speaker system is auto-
matically turned off when the headphones is
plugged into the PHONES jack.
The PHONES jack is in the front .
6
Cautions£¡
The sustain jack
An optional foot switch can be plugged into the
SUSTAIN jack for sustain control. The foot switch
function is like the sustain pedal on a piano
Press for sustain, Release for normal sound.
The Aux. Out jack
The AUX. OUT jack delivers the output of the
keyboard for connection to an external amplifier.
Using an audio cord, plug into AUX. OUT jack
located on the rear panel. Then plug the other
end of the cord into LINE IN or AUX. IN of the
amplifier.
Stereo
System
DC 12V
AUX. OUTVOLUMESUSTAINMIDI OUT
MIDI IN
MIDI THRU
DC 12V
AUX. OUTVOLUMESUSTAINMIDI OUT
MIDI IN
MIDI THRU
Connections
The volume jack
An optional volume control can be plugged into
the VOLUME jack for adjusting the volume of
sound.
DC 12V
AUX. OUTVOLUMESUSTAINMIDI OUT
MIDI IN
MIDI THRU
The MIDI IN/OUT jacks
The MIDI IN connector receives MIDI data from
an external MIDI device.
The MIDI OUT connector transmits MIDI data
generated by the electronic keyboard to an
external MIDI device.
MIDI OUT
MIDI IN
MIDI THRU
