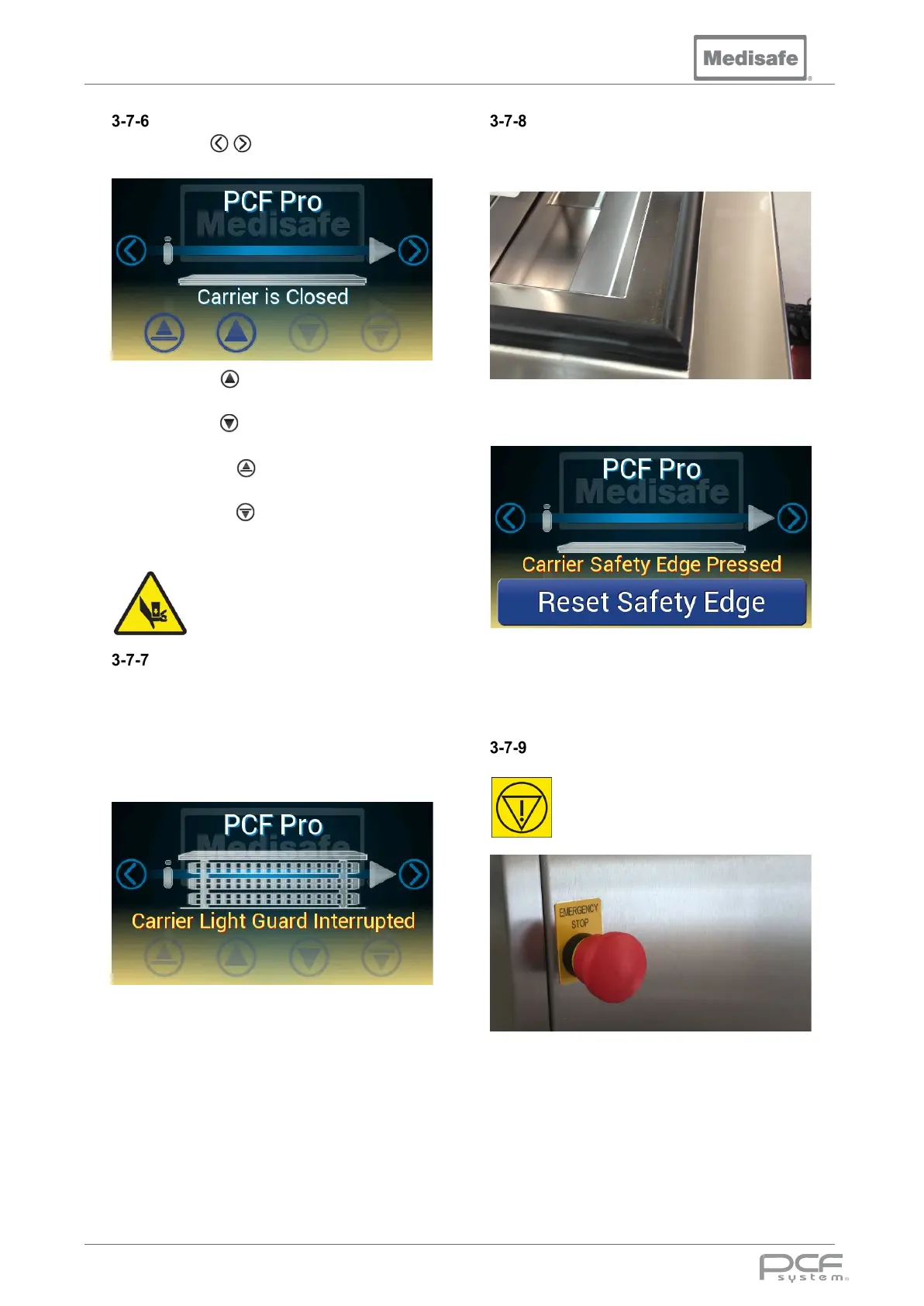

Carrier Lift Controls
Use the scroll arrows to cycle through to
the carrier lift icon.
Press and hold to index the carrier lift up to
the next level
Press and hold to index the carrier lift down
to the next level
Press and hold to open the carrier lift
without stopping at each level
Press and hold to close the carrier lift
without stopping at each level
Pinch points are created during
lid articulation. Keep hands clear
when opening or closing the lid.
Light Guard
To protect against accidental damage of the
baskets and Lifting system, a light beam
sensor monitors for obstruction along the front
of the Carrier Lift. If this beam is broken (i.e by
instruments, baskets or basket flags) the
carrier lift will stop and a message will be
displayed:
Note: If the Carrier Lift was travelling down
when a fault is detected, to release an
obstruction it will stop, reverse, travel up a few
centimetres and stop.
Once the obstruction is removed from the light
guard path, the machine will allow the Carrier
Lift to be operated again.
Safety Edge
To protect the operator from crush injury a
Safety Edge pressure activated strip circles
the tank perimeter.
If the safety edge is pressed, the carrier lift will
stop and a message will be displayed:
To allow the Carrier Lift to be operated again,
remove the obstruction and press Reset
Safety Edge on the display.
Emergency Stop
In the unlikely event of an
uncontrolled fault, the emergency
stop button can be pushed to cut
power to the Carrier Lift and other
critical outputs.
When the emergency stop is pressed, the
machine will display an error message and
abort a cycle if one was running (see section
3-9-10). Normal operation can only be
resumed once the emergency stop button has
been pulled out.
