TECHNOPOOL3 INSTALLATION
Dosing systems for swimming pools ENGLISH
ADSP7000716 rev. 1.0 25/01/2017 8/64
2.3.1 Assembly of the accessories
Probe holder assembly
- The injection probe holder (j) can be installed on a DN50 or DN60 PVC tube, after a 24mm hole has been
drilled
- Ensure the injection tube is inserted so that it points in the direction of flow marked by the arrow
- The injection probe holder must be installed within ± 45
o
of the vertical.

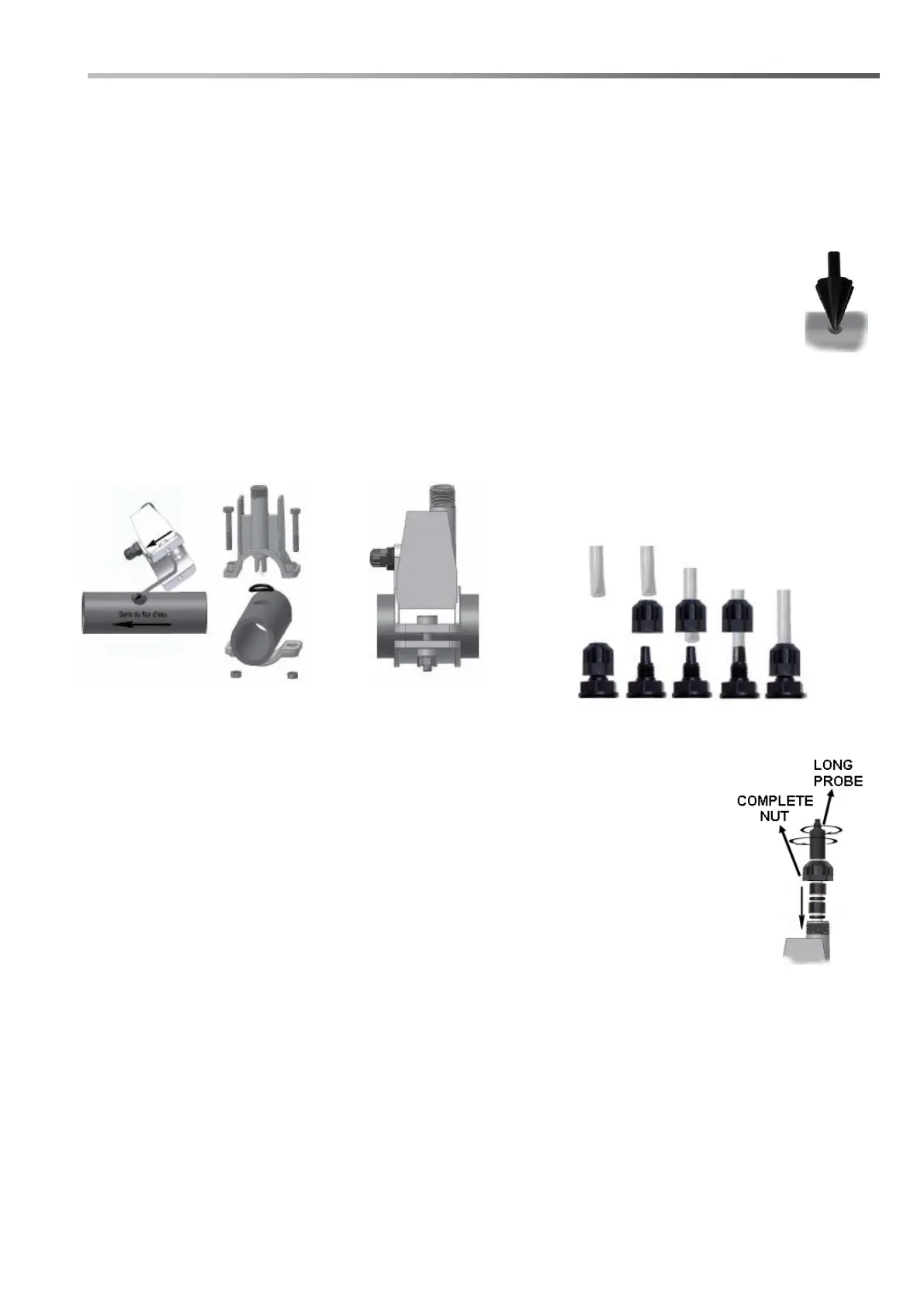

How to make D24mm hole
- Drill a 5 mm pilot hole in the top of the PVC tube
- Enlarge the hole with the special tool D24mm supplied in the kit
- Remove any burrs from the hole
2 in 1 Probe holder installation(ref. j):
- Put the o-ring (ref. 8) on the injection tube
- Insert the injection tube inside the PVC tube, ensuring that the injection is in the same direction as the pool
circulation (indicated by the arrow on the sticker)
- Put the big o-ring in its seat keeping it in its position, place the upper part of the probe holder (ref. j) on the
PVC tube
- Use the screws to join the 2 parts of the probe holder (if the PVC pipe is DN63 use the 2 spacer (ref. 9))
Warning Do not fully tighten one nut before the other.
Installation of 4 x 6 tube (ref. 2) on d
e f g elements
Long probe Installation (120 mm)
- A standard electrode (12x120 mm) can be used, in that case you must use all the
accessories inside the kit
- Put the nut (ref. 11) on the probe body and than, alternatively, one spacer (ref. 6) and one
o-ring (ref. 7), like shown in the picture on the side
- Insert with care the electrode in the probe holder, having care that all the components
reach their seats. Then screw the nut with care (ref. 11).
Warning Do not bend the electrode otherwise it will be damaged. Electrode inner part is
very fragile.
