Megger frax 101 User Manual

6
FRAX User's Manual
© 2011 Megger Sweden AB

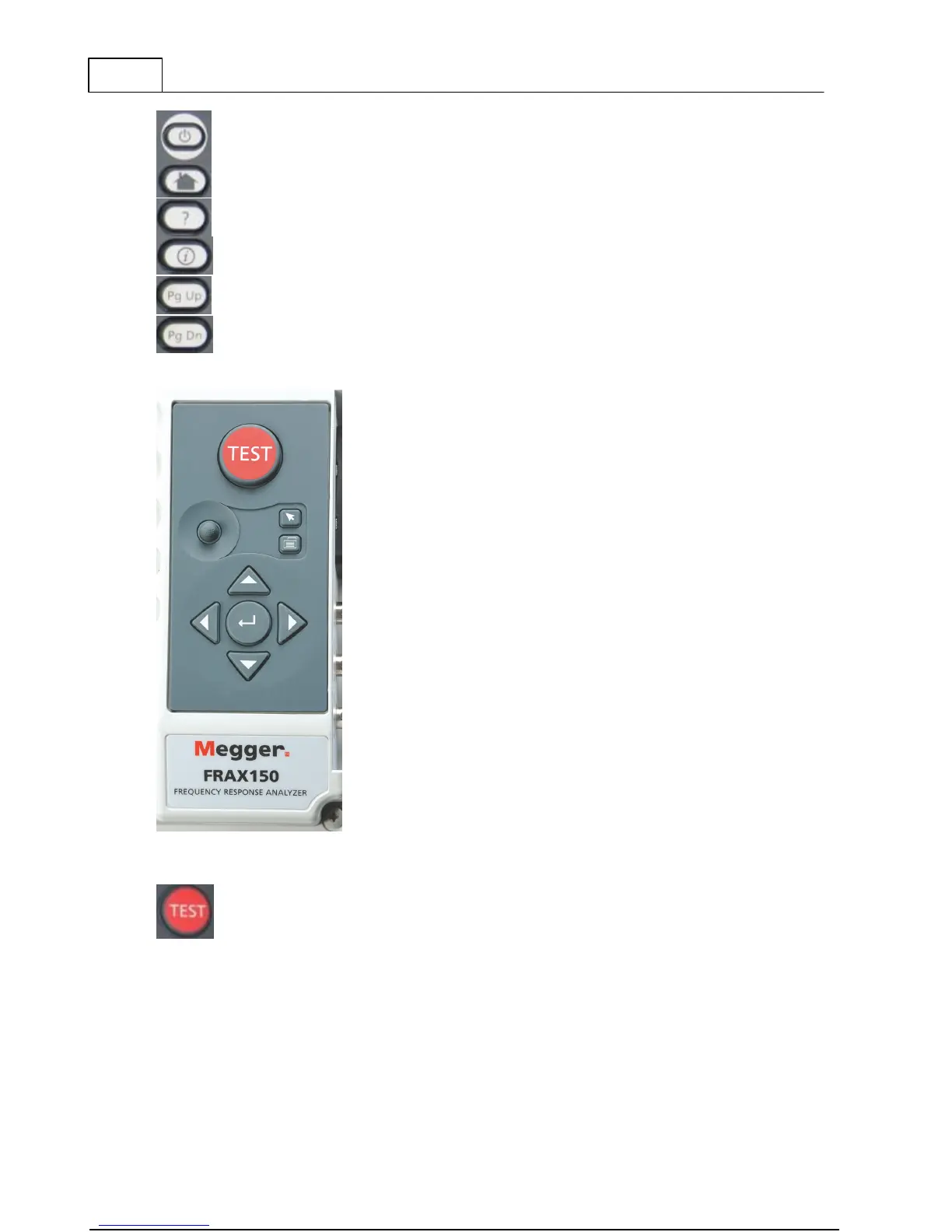

Power down. Shuts down the FRAX-150 computer.
Home (not used)
Help
Information (not used)
Page Up
Page Down
On the right you will find the navigation panel.
In the middle of the navigation panel you will find the controls for the pointer and buttons
for left (top) and right click (bottom). The navigation panel also contains:
Test button. Press this to start a new test or measurement. This button has the
same functionality as the "Start" button on the FRAX-150 screen.

Megger frax 101 Specifications

General

Brand	Megger
Model	frax 101
Category	Measuring Instruments
Language	English
