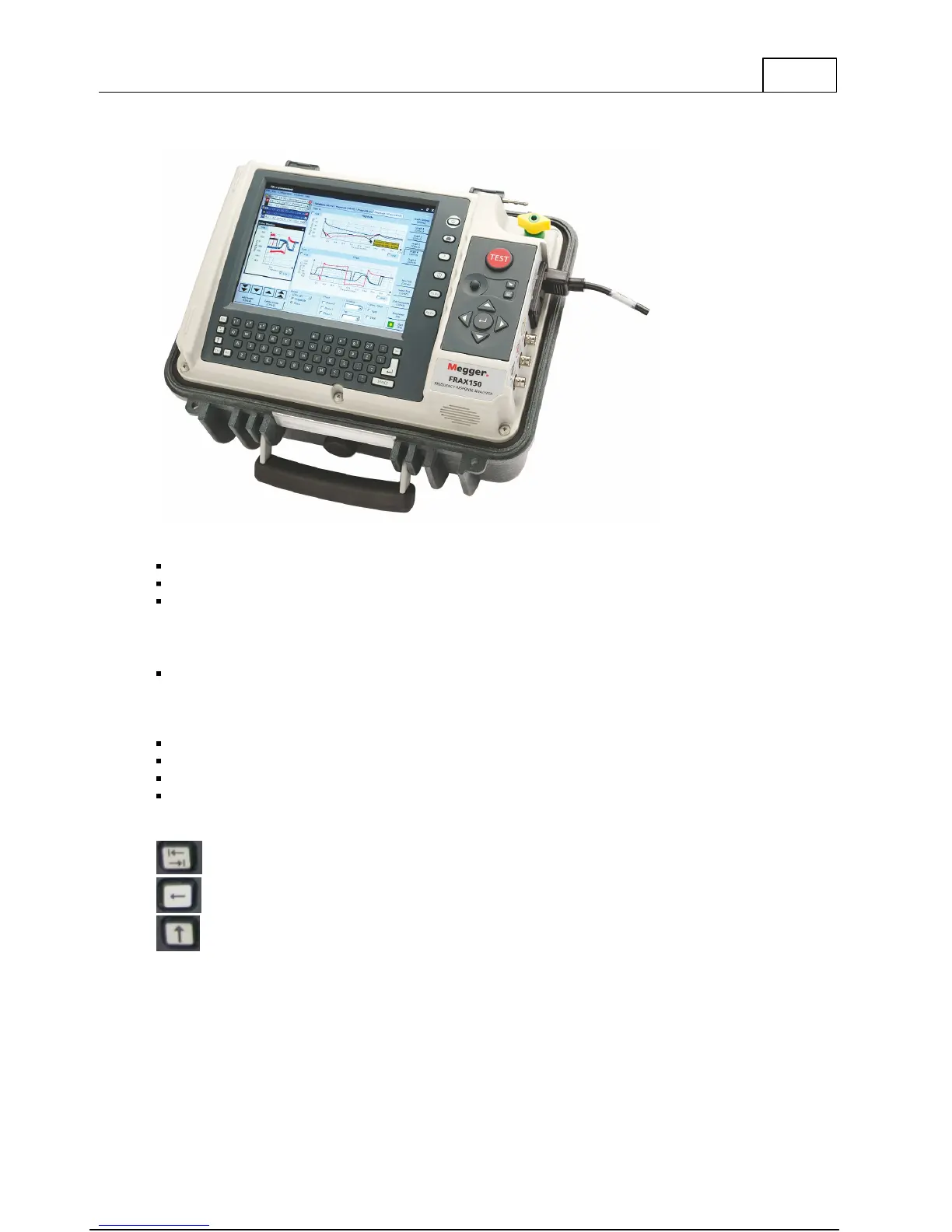

1.3.2 FRAX-150
Left-hand side, top down:
USB:
USB-connectors
Network:
For connecting the FRAX-150 to LAN
Serial port:
For serial communication.
Right-hand side, top
down:
Protective Earth/Ground
connector
Always connect the instrument to station earth/ground using
the separate earth/ground cable. The separate earth/ground
wire should be the first connection made and the last
removed.
Power connector
Generator (Yellow):
Generator output connected to Reference at Red Clip
Reference (Red):
Reference input connected to Generator at Red Clip
Measure (Black):
Measure input Connected to Black Clip
Below the screen is a standard qwerty keyboard containing some special keys.
Tab
Backspace (or with shift) Delete
Shift key
On the right of the screen are some function buttons. They are

Megger frax 101 Specifications

General

Brand	Megger
Model	frax 101
Category	Measuring Instruments
Language	English
