CIGRE Brochure 342 (XFRA)
XFRA or Export FRA is a storage file format recommended in CIGRE Brochure 342. When
exporting to XFRA you are given the opportunity to inspect and make alterations to what will
be written to the file. Pay attention to the terminal settings, especially if you are using
custom sweep names that don't use the default sweep names.
Column type export
Exports active sweeps to a *.txt file. Make sure that only graphs you want to export are visible
in the Graph, as only active graphs are exported. Example: If you look at a magnitude graph,
only magnitude will be exported, if Magnitude and Phase is visible, both Magnitude and
Phase will be exported.

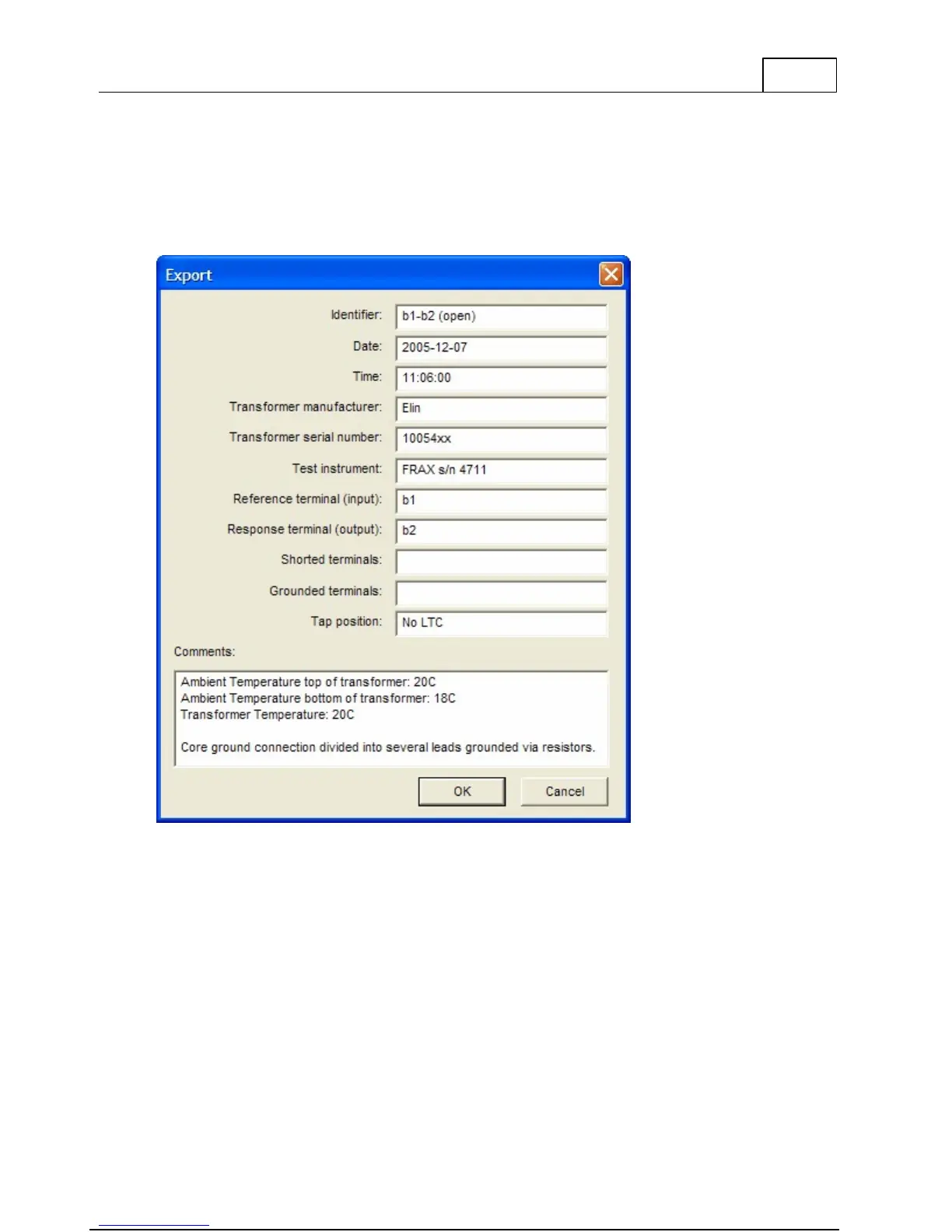

Select suitable export details and press OK.
