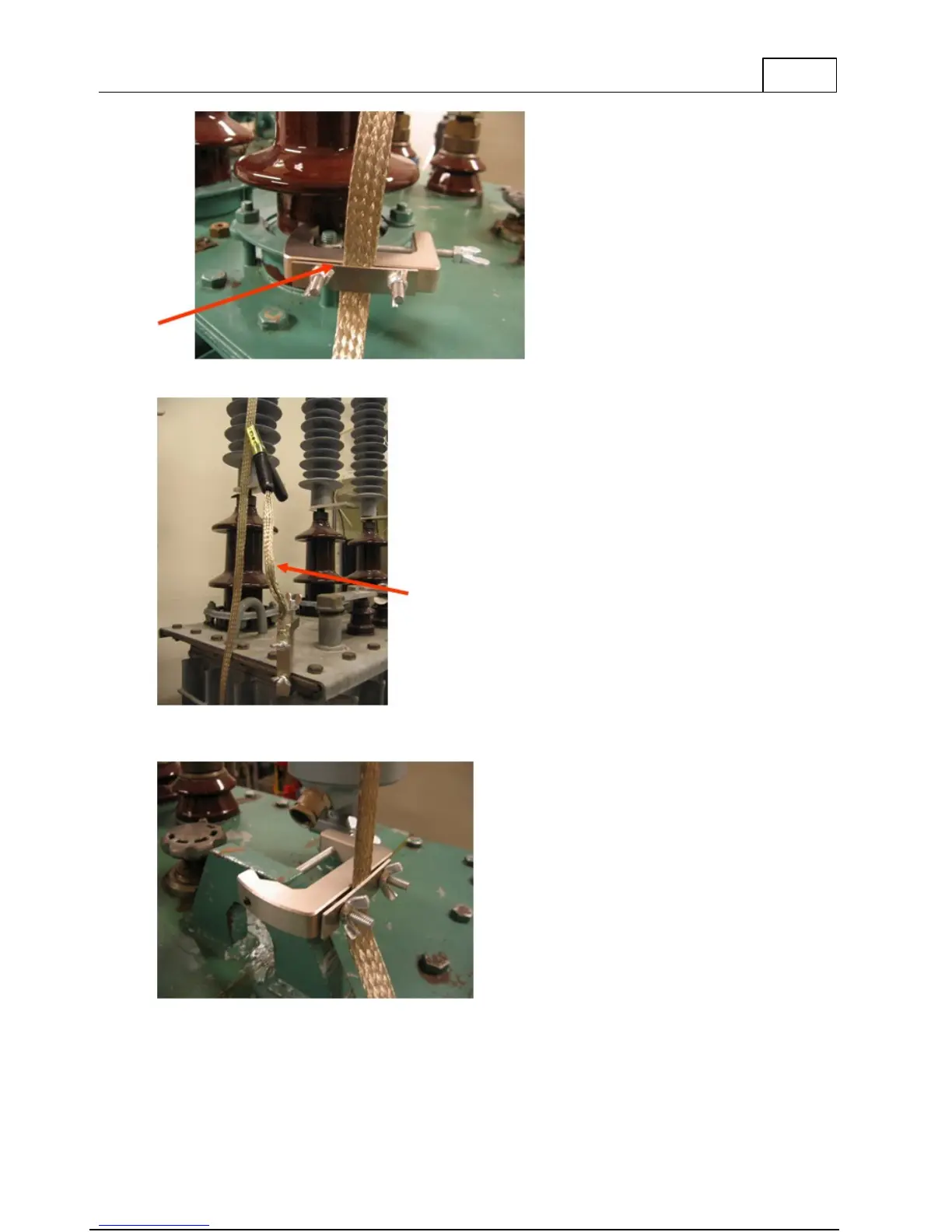

Place the braid between the G-clamp and the braid plate. Tighten the braid to create a
straight line from the C-clamp to the G-clamp. Tighten the wing nuts.
For extra flexibility when connecting the braids to ground, the short braid with clamp
included in the ground braid set can be used.
