12.2 Test results recall
(MIT420/2, MIT430/2, MIT481/2, MIT485/2 and MIT2500)
All stored test results may be recalled to the screen.
1. Turn the instrument ‘ON’ by rotating the selector switch to the recall (RCL) position.

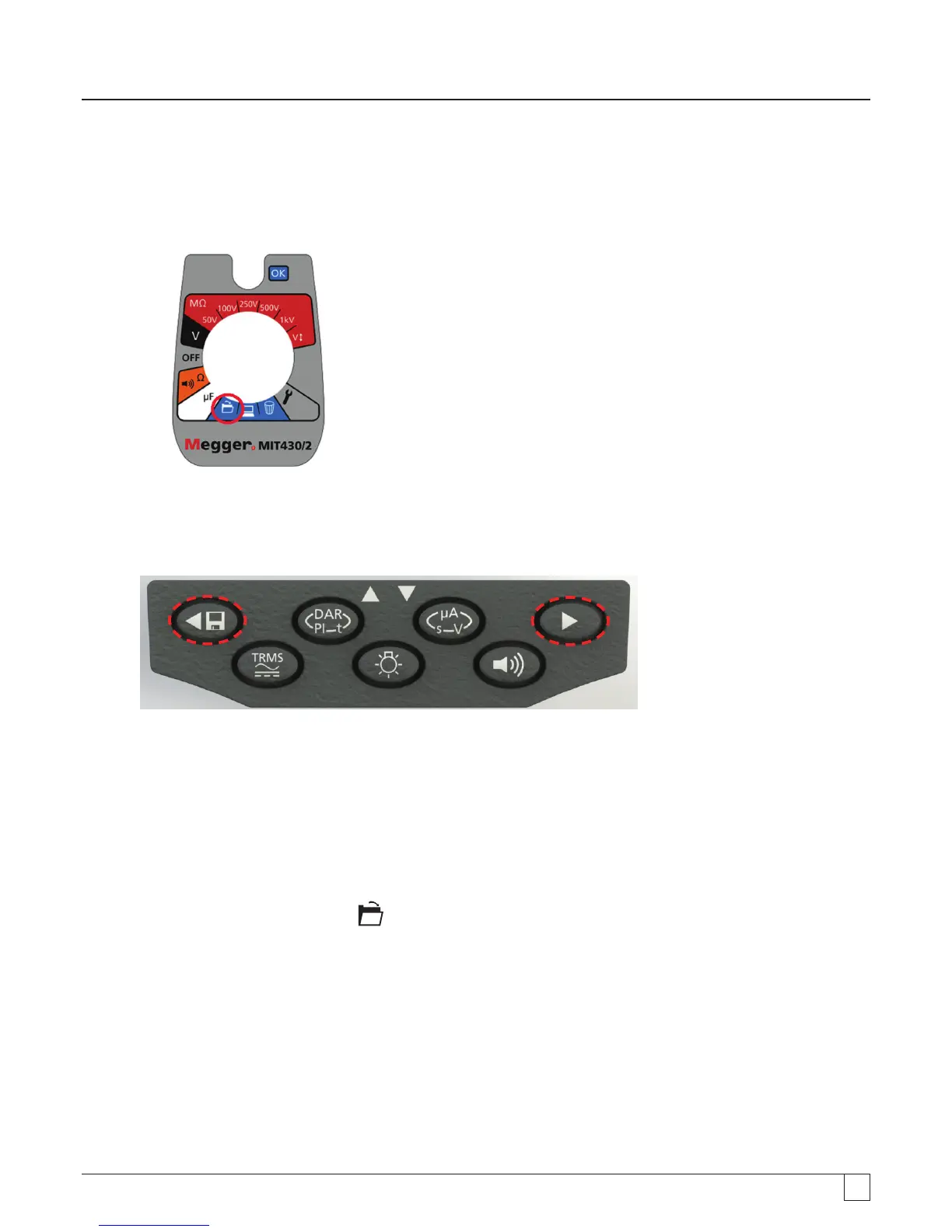

- Figure 42
2. The latest unique test result identification number will be displayed.
Where no results have previously been stored, the display will indicate this by three dashes.
3. Press [OK] to display last stored result, or select the particular test result identification number by using the LEFT and RIGHT
buttons as below:
- Figure 43
then press ‘OK’ to select.
4. The test result will be displayed. Additional information stored with the test result may be viewed using the relevant button.
For example on insulation test µA can be recalled using the µA/S/V key. The TRMS key will operate on voltage results.
12.2.1 PI and DAR recall.
Additional recall information is available if the result stored was a PI or DAR test, as the result is a ratio of two measured values.
To recall a PI or DAR result:
1. Rotate the selector switch to the recall
position and observe the latest unique test result identification number displayed.
2. Locate the particular test result identification number by using the UP and DOWN buttons, then press ‘OK’ to select.
3. The test result will be displayed.
To scroll through the different measurements used in calculating the PI or DAR ratio, use the DOWN only button.
