Thread Feeder (replacement and adjustment)

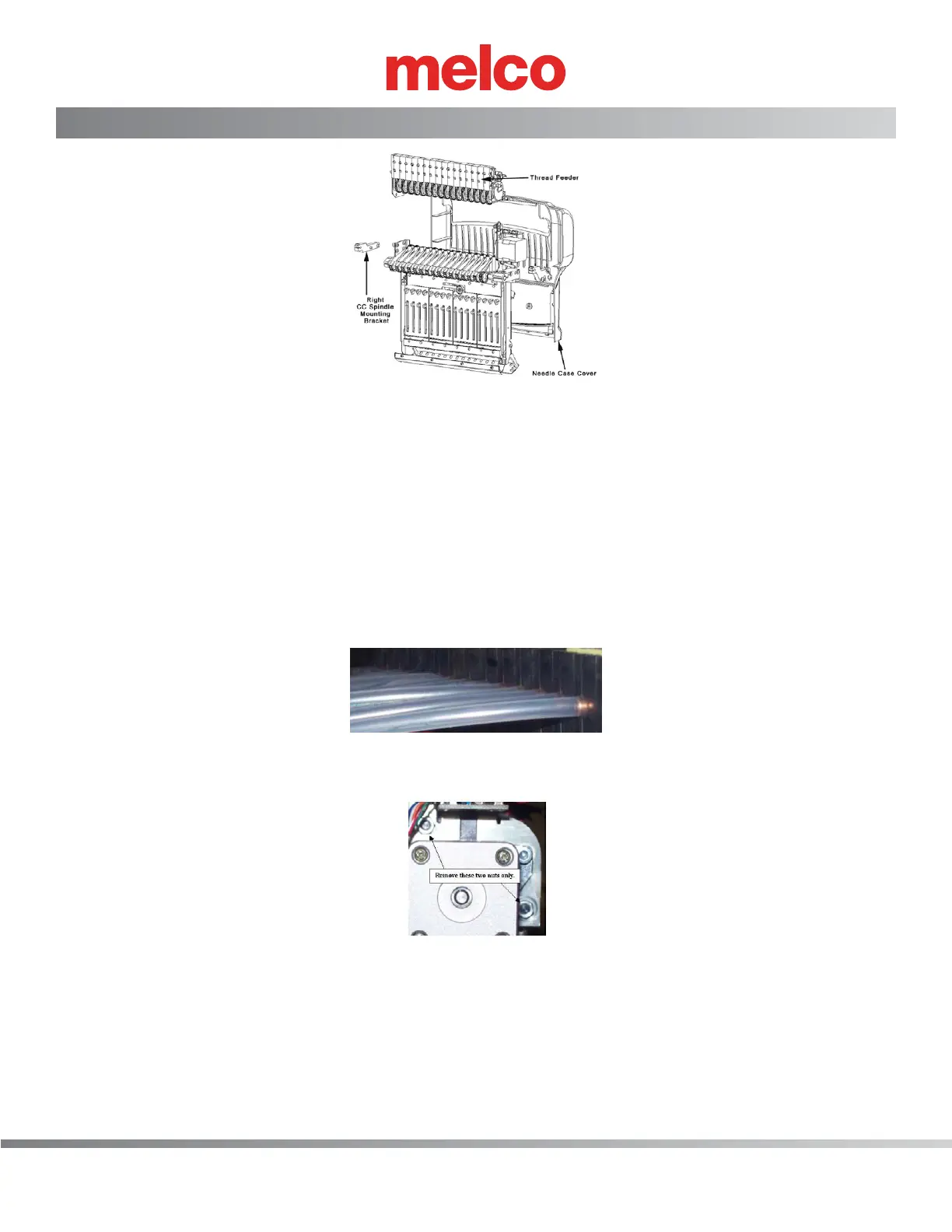

Figure 1 - Needle Case Assembly
Replacement Parts Needed: (for part numbers and description, click on the links)
• Thread Feeder Assembly, 16 Needle (comes with hardware installed)
Replacement Procedure
1. Turn the machine off.
2. Remove the needle case access cover.
3. Remove the needle case cover.
Figure 2 - Thread Tubes Connected to Thread Feeder Assembly
4. Remove the thread tubes from the back of the thread feeder.
Figure 3 - Thread Feeder Assembly, Left Bracket
