Test Designs

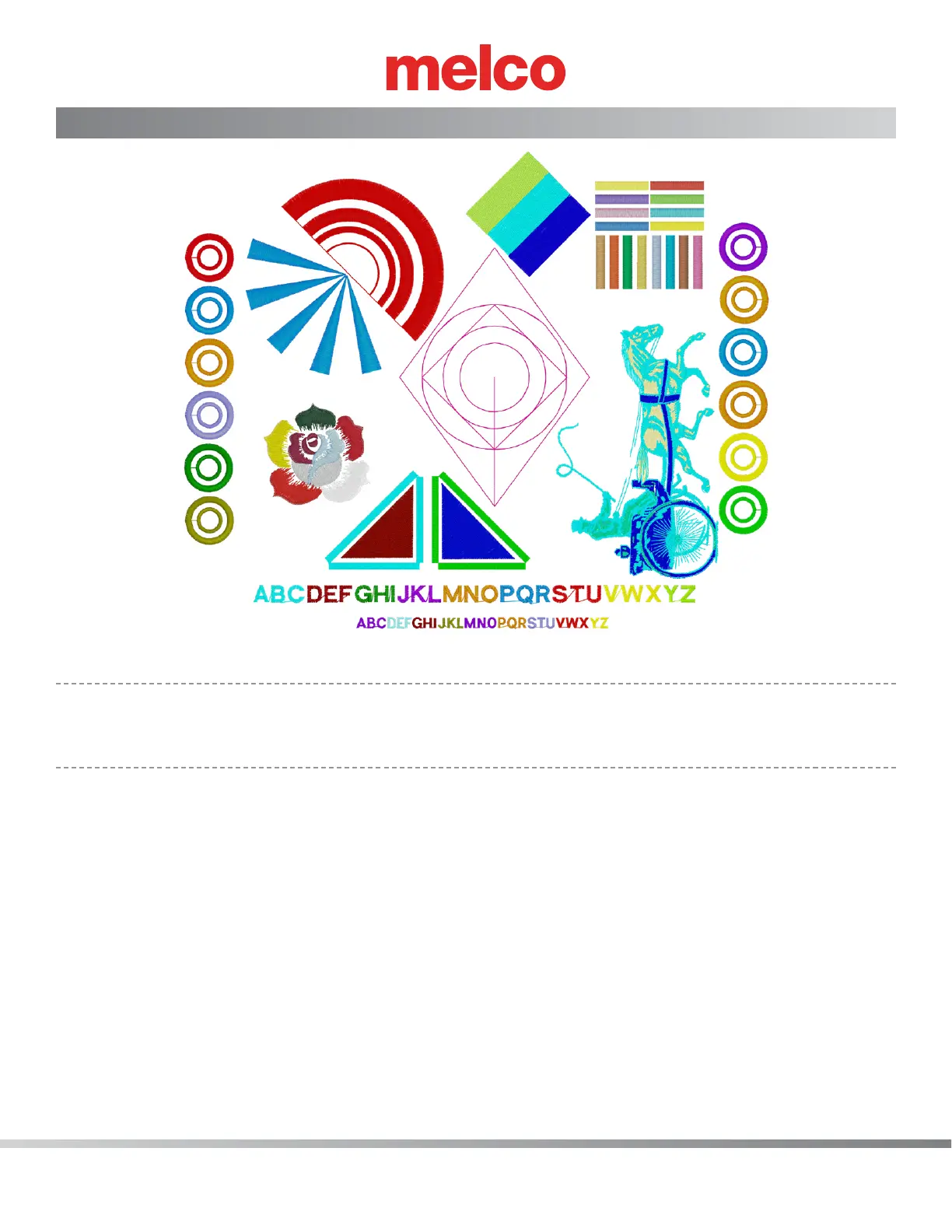

Figure 1 - Test Design BRAVOPASSXXX
•
Note: Reference to the test design dash level will not be specied in this manual. Instead the
design name will refer to the latest available revision of the test design indicated by “ XXX” at
the end of the design name.
The BRAVOPASSXXX is the ofcial factory “go/no go” design that is used to test all machines before they
are shipped to customers. The use of this design to help in diagnostics and troubleshooting is recom-
mended because it allows you to test under known design conditions without having digitizing conicts
involved in the trouble shooting.
This design produces more information when sewn on white broad cloth (or any white polyester materi-
al) and one layer of backing. The use of a white colored fabric is important so that the thread contrasts
against the white and makes defects in the sew patterns more visible. Avoid the use of white or similar
colored threads, as they will blend in to the bobbin thread making it difcult to detect problems.
This design has been broken down into individual components that are available as a separate design as
indicated: (click on the separate design name to view the design or to get specications)
