58 of 289
•

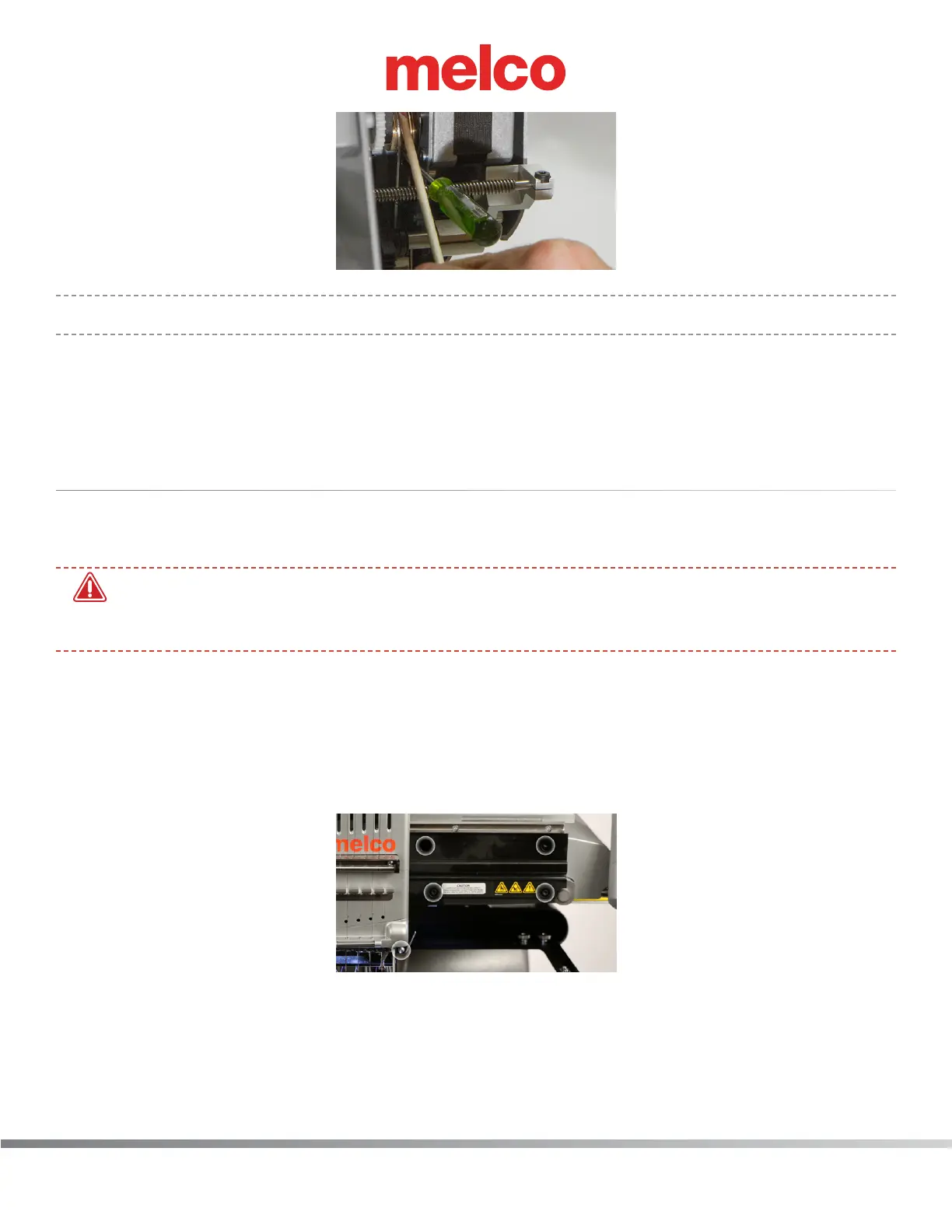

IMPORTANT: Ensure that no grease is applied to the black grabber ag on the right side.
34. Once the grease has been applied, release the grabber connecting lever and remove the small
screwdriver.
This completes the monthly maintenance procedure
Quarterly Maintenance
Take-Up Lever Cam, Presser Foot Cam Follower, & Right Needle Bar Guide
•
WARNING!! If you currently have a hoop or clamping system on the machine, please remove it.
Failure to fully remove a clamping system can result in damage to the machine. When you click
on the next button, the machine will move to the appropriate position.
1. Color change to needle #1.
2. Move the x-beam all the way back.
3. In the software, go to “Tools>Maintenance> Head Timing Tab” and got to “Bottom Center”.
4. Using a 3mm and a 2.5mm Allen wrench, loosen and remove the ve (5) screws shown in the
image.
5. After removing the mounting screws, move the right upper arm front cover slightly away from the
machine. Then, rotate it counter clockwise as shown in the image and remove it completely from
the machine.
