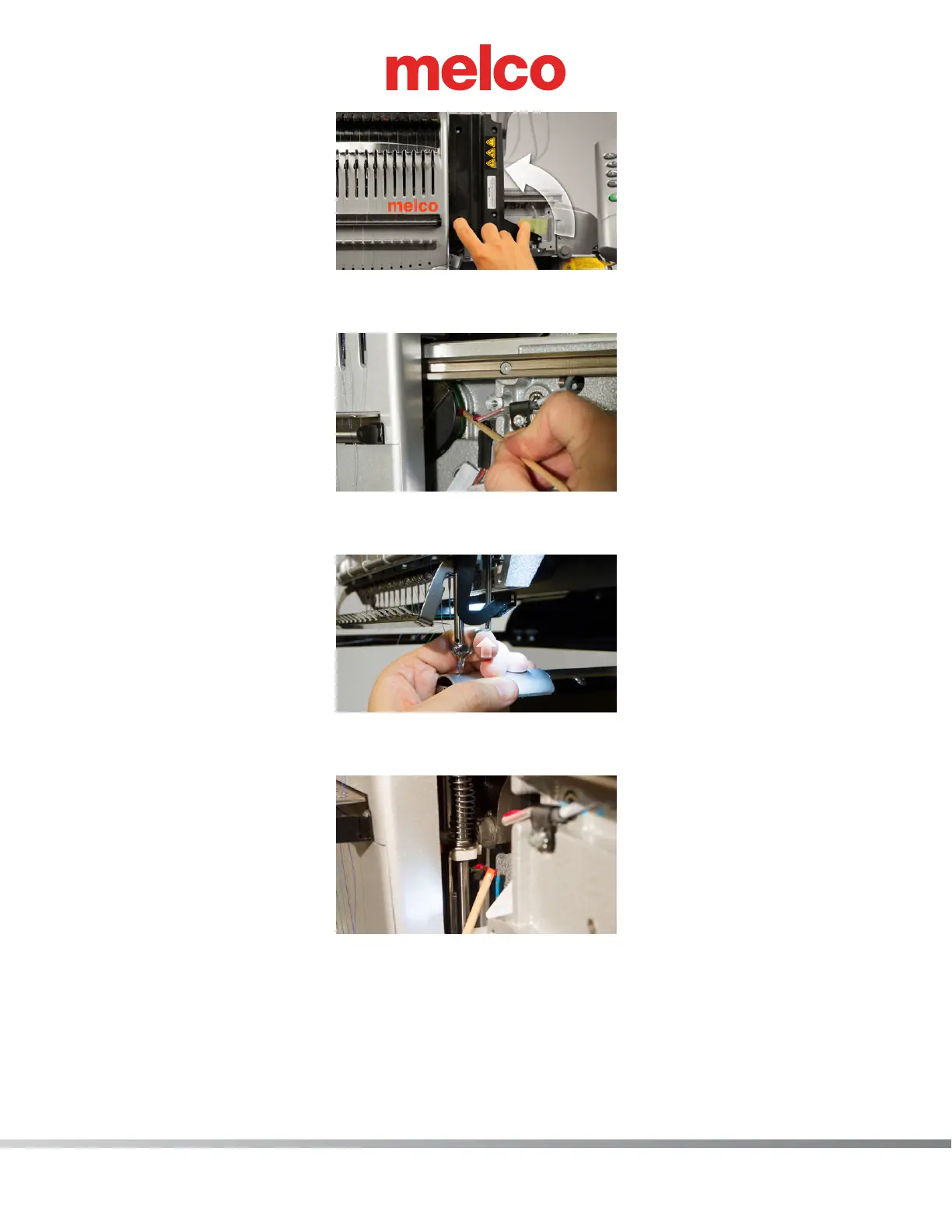

6. Using the grease applicator, apply some HP grease to the back surface of the take-up Lever Cam
as shown in the image.
7. To gain access to the next maintenance point, the presser foot must be manually raised. Place a
nger below the back bend of the presser foot and lift the presser foot as shown in the image.
8. Using the grease applicator, apply a small amount of the HP grease to the upper presser foot cam
follower.
9. Position the right upper arm front cover in its original location. You will need to rotate it back into
place in the reverse of the way it was removed.
