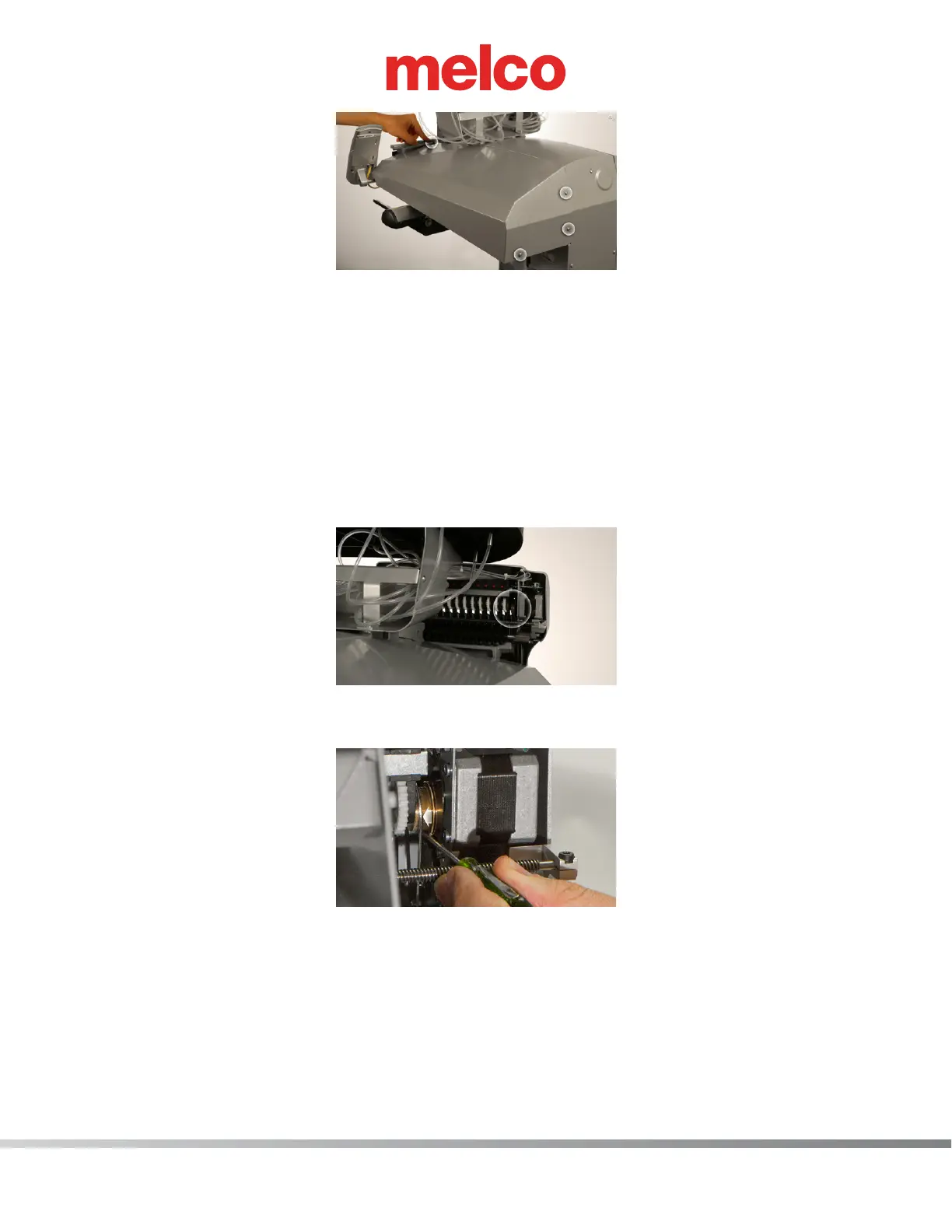

27. Loosely install one (1) of the rear (shorter) mounting screws to hold the cover in place.
28. Install the other two (2) mounting screws. The longer of the screws secures the front. The shorter
of the screws secures the rear.
29. Carefully tighten all three (3) screws only enough to secure the cover in place. Over-tightening of
the screws may result in cosmetic damage to or cracking of the cover.
30. If the x-cable is not positioned near the lower edge of the cut-out on the right side of the x-cable
tension gauge as shown in the image, the tension is out of specication and needs adjustment. If
this is the case, press on the out of specication button to continue.
31. Locate the grabber eccentric on the upper left back side of the needlecase as shown in the image.
32. With a small at blade screwdriver, carefully move and hold the grabber connecting lever over to
the left as shown in the image.
33. Using the grease applicator, apply a small amount of HP grease onto the grabber eccentric surface
between the grabber connecting lever and the grabber home ag as shown in the image.
