232 of 289

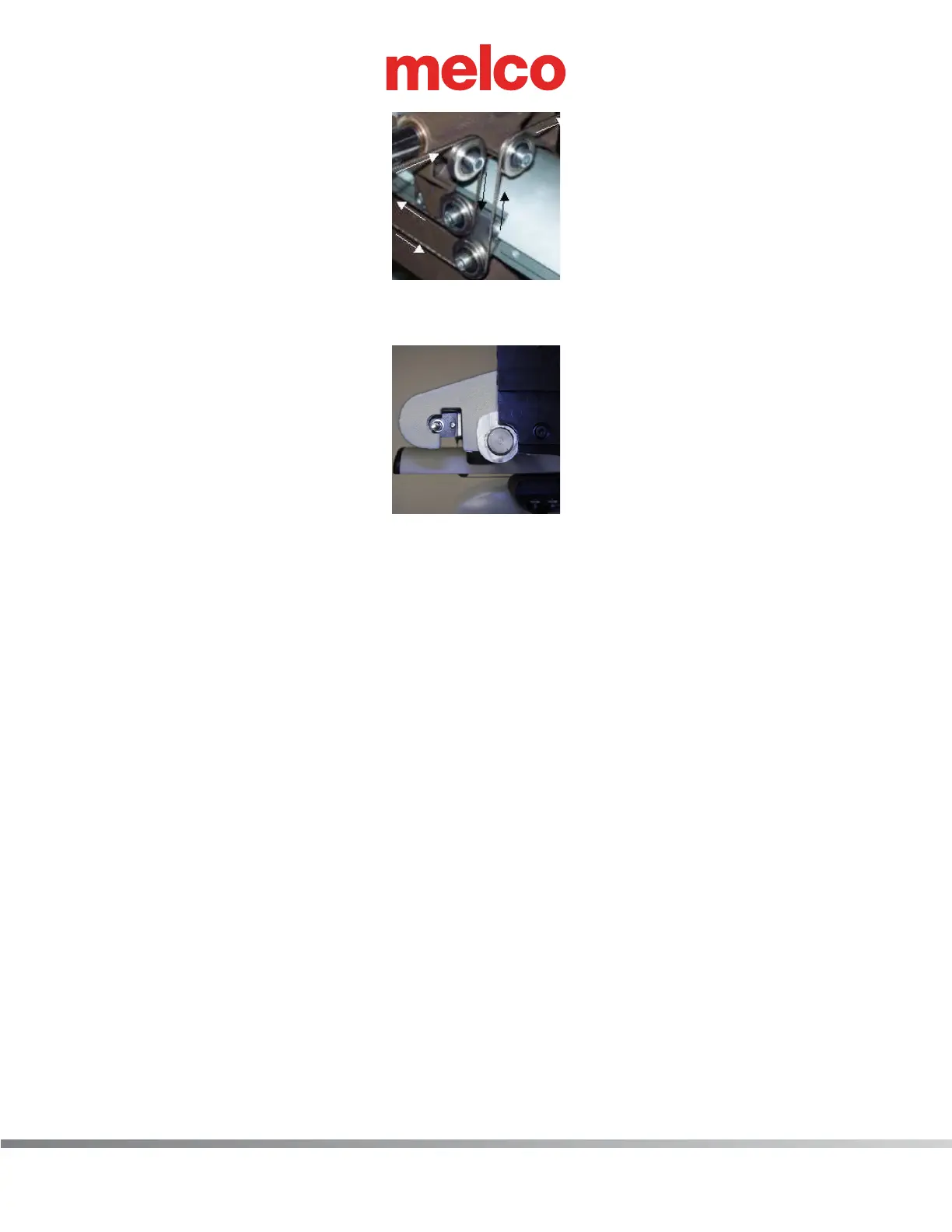

Figure 9 - Left Beam Cable Pulleys
13. Repeat steps 8-10 for the left side cable.
Figure 10 - Cable Tensioning Bracket (Left side of machine)
14. Install the washer and nut to the threaded end of the stud. Use needle nose pliers to hold the
cable stud before tightening the nut to prevent the cable from twisting.
15. Tension the x-cable using the procedures prescribed in “X-Cable Tensioning”.
16. Install the upper arm back cover.
17. Install the left and right arm covers
