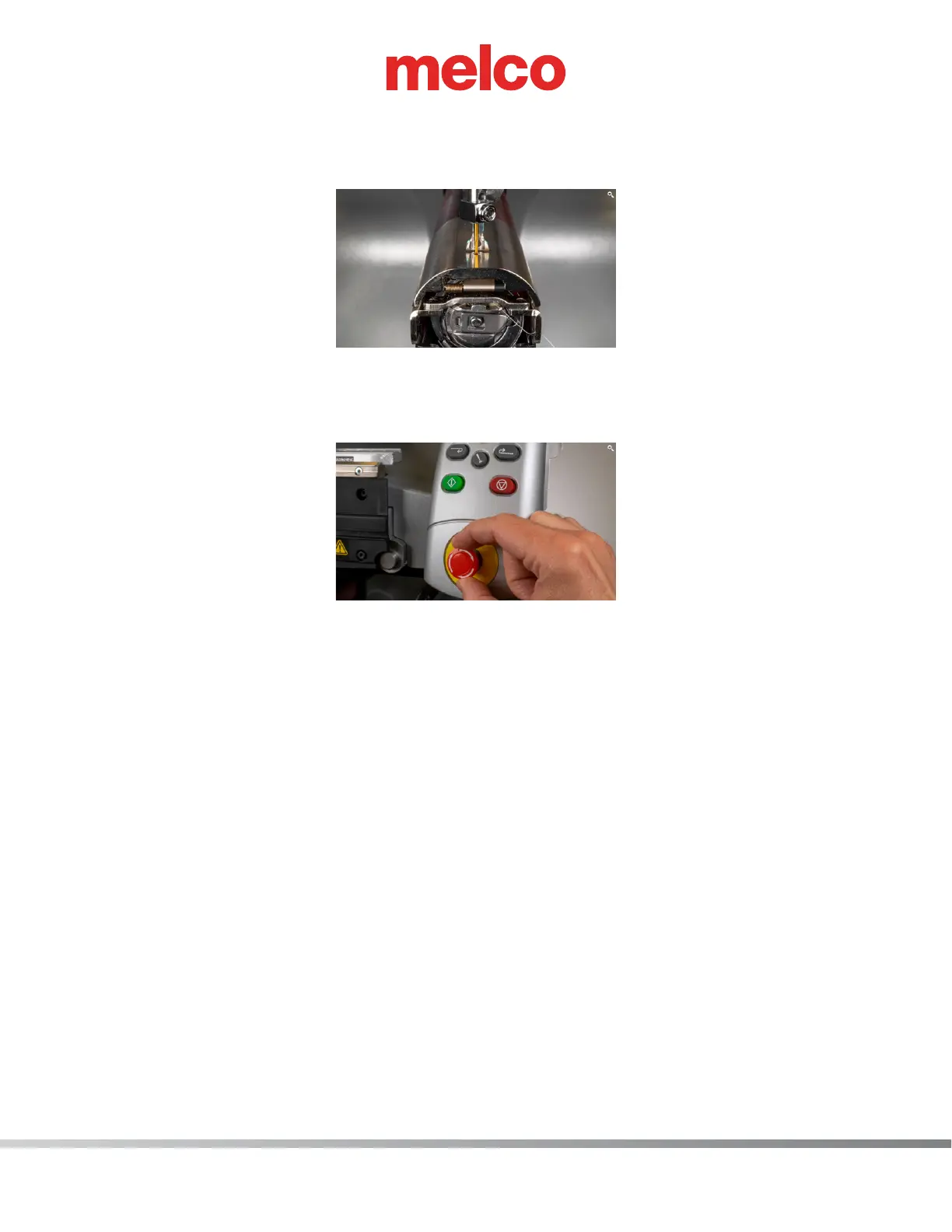

26. Move the needle plate left or right until the needle is centered (left/right) in the needle plate hole
as shown in the image.
27. Fully tighten the two (2) hex head needle plate screws.
28. After the needle plate is in place and tightened, release the e-stop by turning the button in the
direction of the arrows.
29. When e-stop is released, the machine will move the needle back up to its appropriate position.
.
This completes the weekly maintenance procedure.
