Fuse Replacement
LOCATION OF FUSES
The outboard 12‑volt 5‑amp fuse is located under the hood.

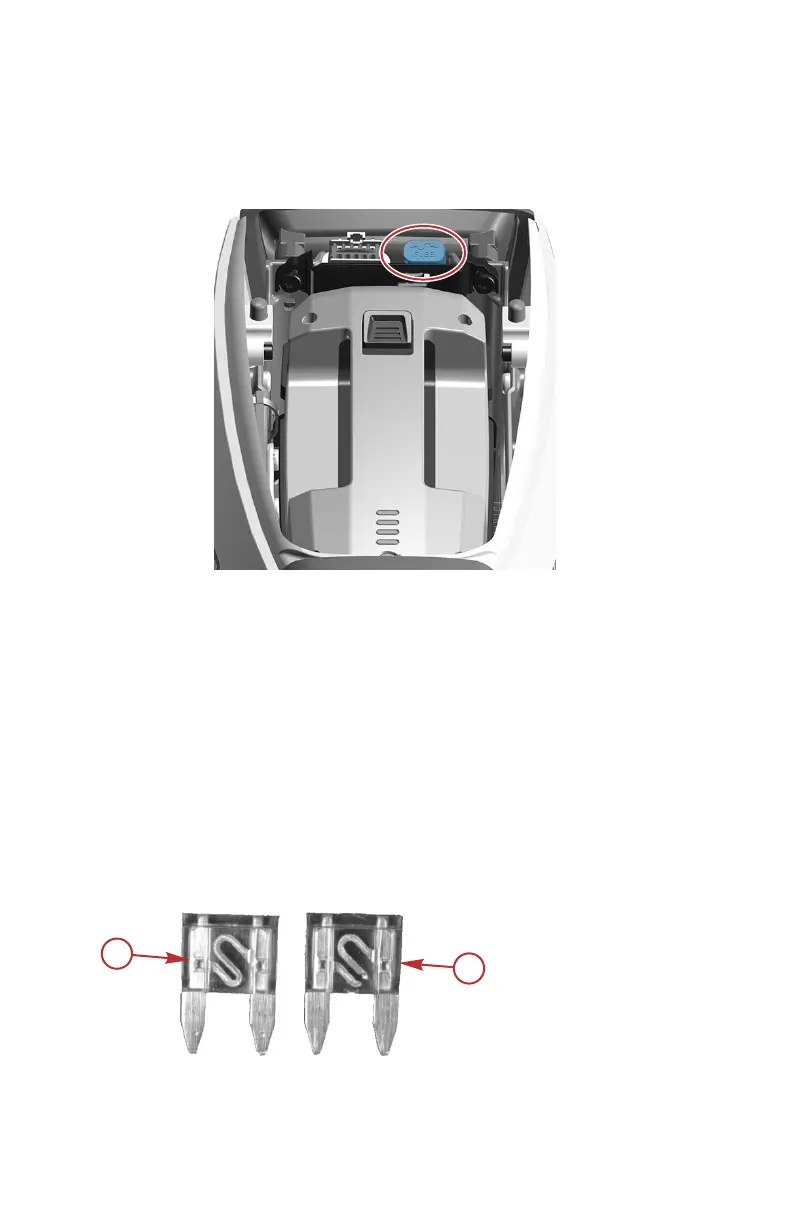

Fuse location
FUSE IDENTIFICATION AND REPLACEMENT
IMPORTANT: Always carry spare 5‑amp 12‑volt fuses.
Do not attempt to service the 48‑volt circuit fuse. If suspected to be failed, the
outboard needs to be serviced by an authorized technician.
The 48‑volt circuit fuse is located behind the cowling.
IMPORTANT:Do not place a fuse of higher amperage rating in place of the
5‑amp 12‑volt fuse. Damage to the wiring or components of the outboard may
result.
Remove the 5‑amp 12‑volt fuse and examine the silver colored band inside the
fuse. If the band is broken, replace the fuse. Replace the fuse with a new fuse
of the same rating.
Identifying an open fuse
a - Good fuse
b - Open (blown) fuse
