Mercury Avator 7.5e User Manual

CRITICAL
If a critical state is detected, the audio warning system will sound for six
seconds and then turn off.

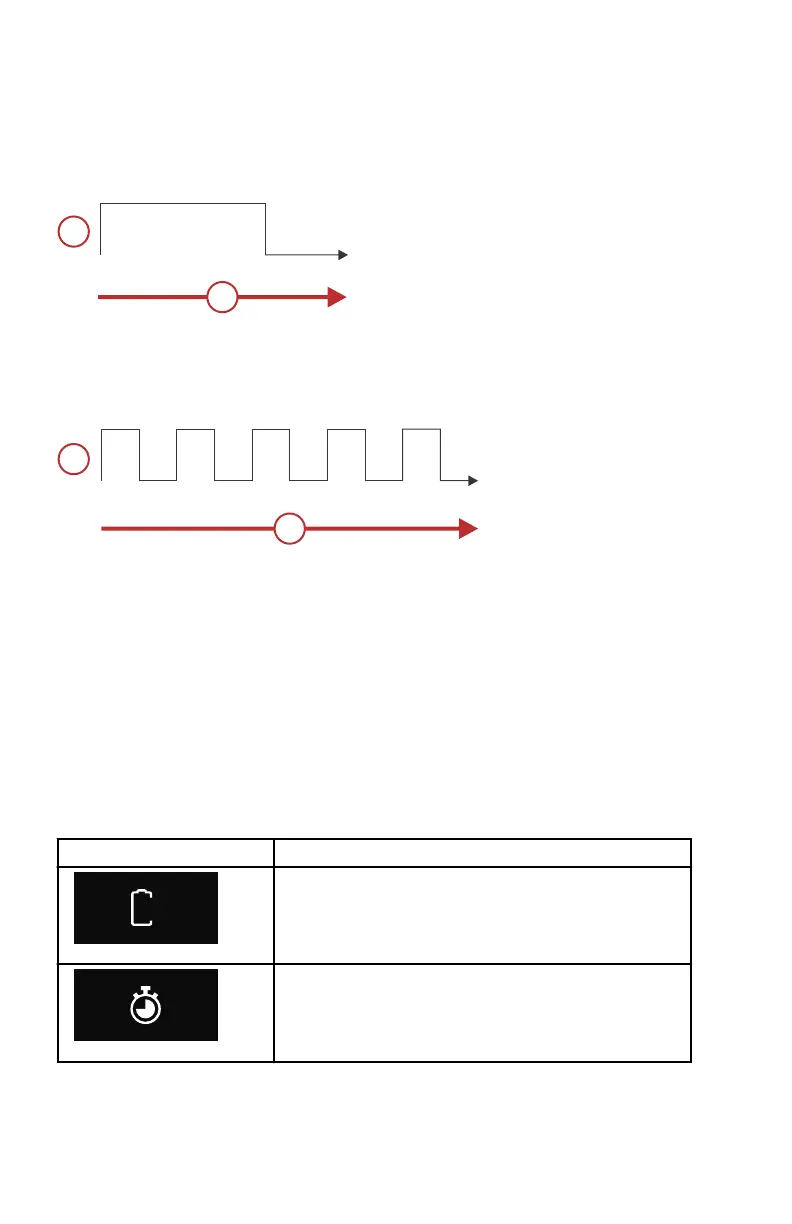

a - Horn (on or off)
b - Time (in seconds)
NONCONFIGURED ALARM
If the helm has not been properly configured using the CDS G3 service tool, the
audio warning system will sound for five one‑second intervals.
a - Horn (on or off)
b - Time (in seconds)
TESTING THE AUDIO WARNING SYSTEM
1.
Tiller models only‑ press and release the power button on the display.
2.
Remote control models only ‑ turn the key switch to the ON position.
3. The alarm will sound if the system is functioning correctly.
Display Icon Legend
GENERAL
Icon
Description
%
76104
Battery percent
76106
Time remaining
53403
a
b
ON
6
OFF
ON ON
OFF
ON
OFF
ON
OFF
ON
OFF
1
1
1
1
1
1
1
1
1
OFF
53402
a
b
FEATURES AND CONTROLS
 74 eng

Mercury Avator 7.5e Specifications

General

Power Source	Electric
Control	Tiller
Mounting	Transom
Operating Voltage	48V
Power	750W
Engine Type	Electric motor
Run Time	Up to 1 hour at full throttle
Propeller	3-blade
Warranty	2 years
Shaft Length	Short
