Mercury Avator 7.5e - Features and Controls; Tiller Handle Features

Tiller Handle Features
IMPORTANT:Until the operator is familiar with the characteristics and features
of this tiller handle control, it is strongly suggested to initially test‑operate the
boat in a safe area. Use all ranges and features of the tiller handle control in
an area free of swimmers, obstructions and in water deep enough to prevent
beaching.
•
Throttle grip friction knob ‑ Turn the friction knob to set and maintain
the throttle at a desired speed. Turn the knob clockwise to increase the
friction or turn the knob counterclockwise to decrease the friction.
•
Tiller handle tilt ‑ Tiller handle can be lowered for handling. It can be
raised to allow for outboard installation and removal.
•
Tiller lock release lever ‑ Push the lock release lever down to allow the
tiller handle to be raised or lowered.

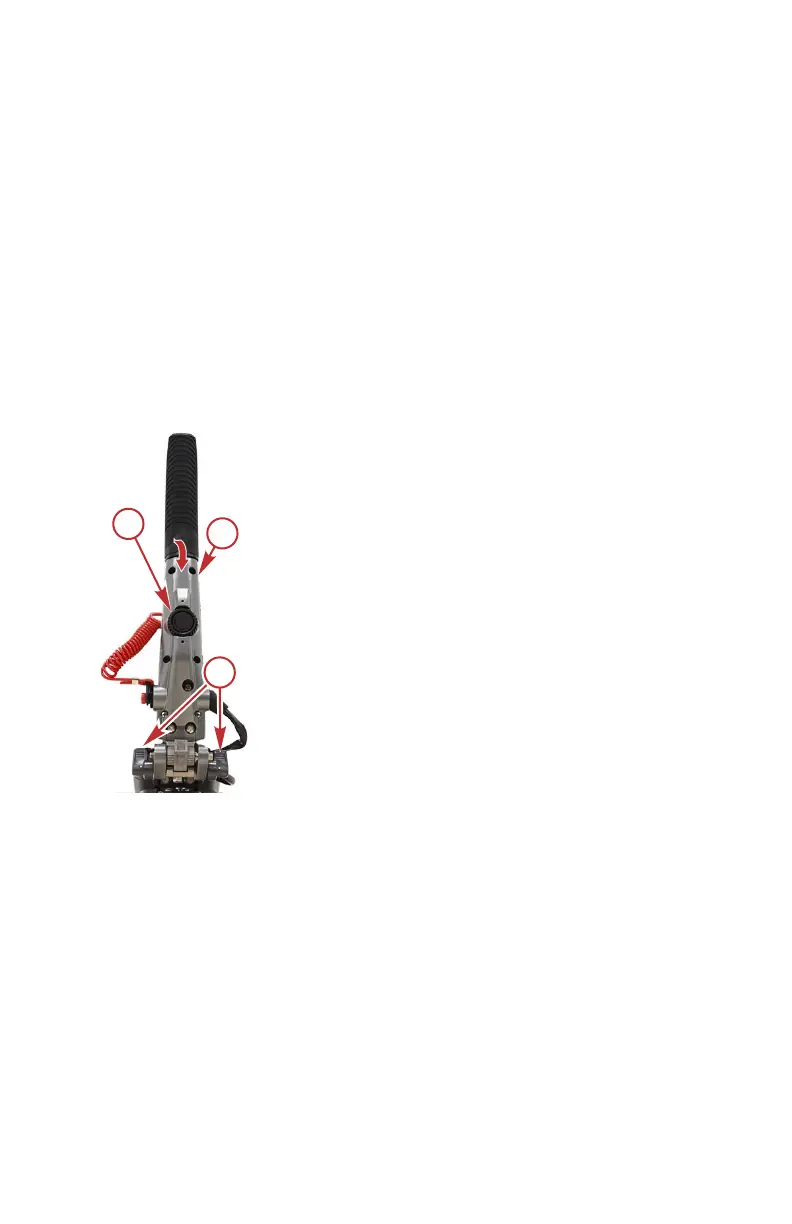

a - Throttle grip friction knob
b - Tiller handle
c - Tiller lock release lever
75528
a
b
c
b
