Avator Outboard Trim System
!
WARNING
Operating the outboard without ensuring the trim lock is engaged in a locked
position can cause serious injury or death. The outboard can tilt upwards
when decelerating or operating in reverse, causing loss of boat control.
Always engage the trim lock of the outboard in the locked position before
operating.
The Avator outboard system allows the operator to lock the outboard in five trim
positions.
NOTE:For information on trailering or transporting the outboard refer to
Trailering for Transportation
.
The Avator outboard trim system should be adjusted only with the outboard
powered OFF.
BASIC TRIMMING OPERATION
Raise the trim position:
1. Move the trim lock lever in the rearward direction to the unlocked position.
2. Push down on the tiller handle with the handle locked in either the raised
position or in the horizontal position.
3. Grip the cowl hand hold and raise the outboard to the desired trim
position.
4. Lock the trim lock lever into position and release the outboard.
Lower the trim position:
1. To lower trim position, move the trim lock lever to the unlocked position
and turn the outboard to either full left or full right position.

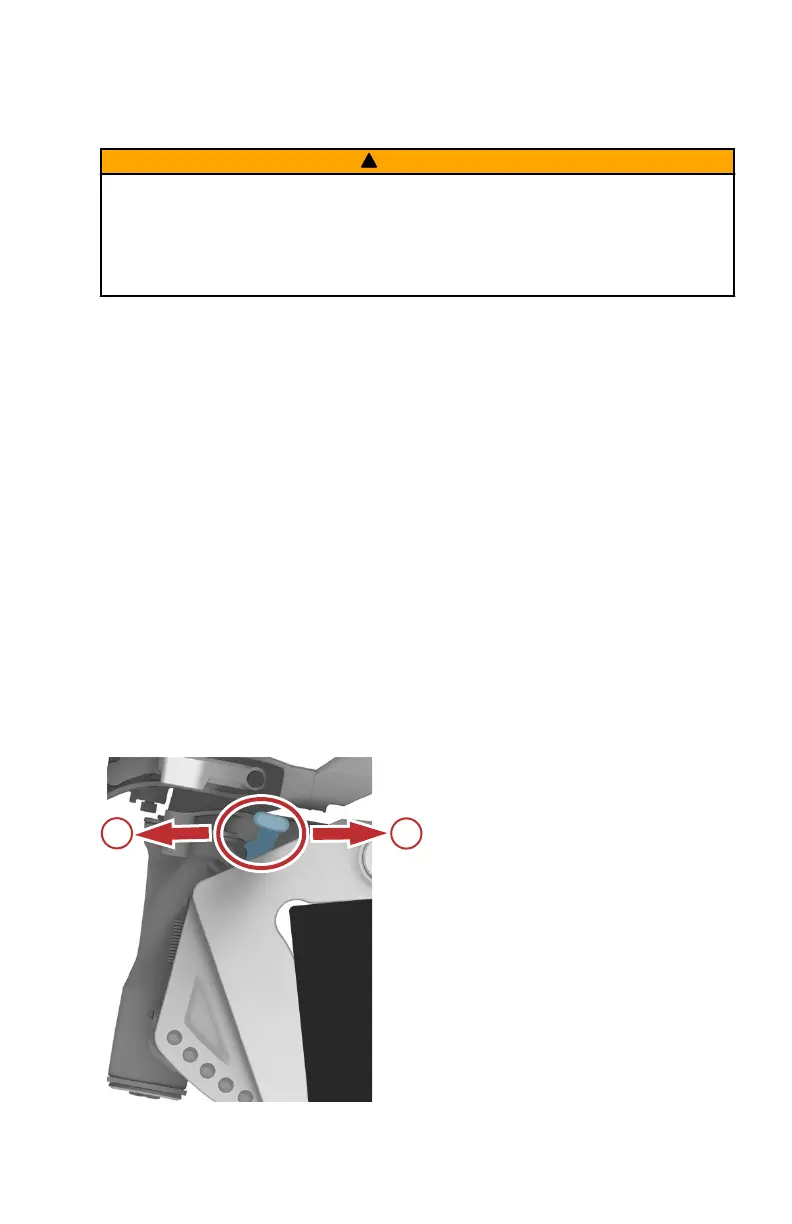

a - Trim lock unlocked position
b - Trim lock locked position
FEATURES AND CONTROLS
eng 69
