Mercury Avator 7.5e User Manual

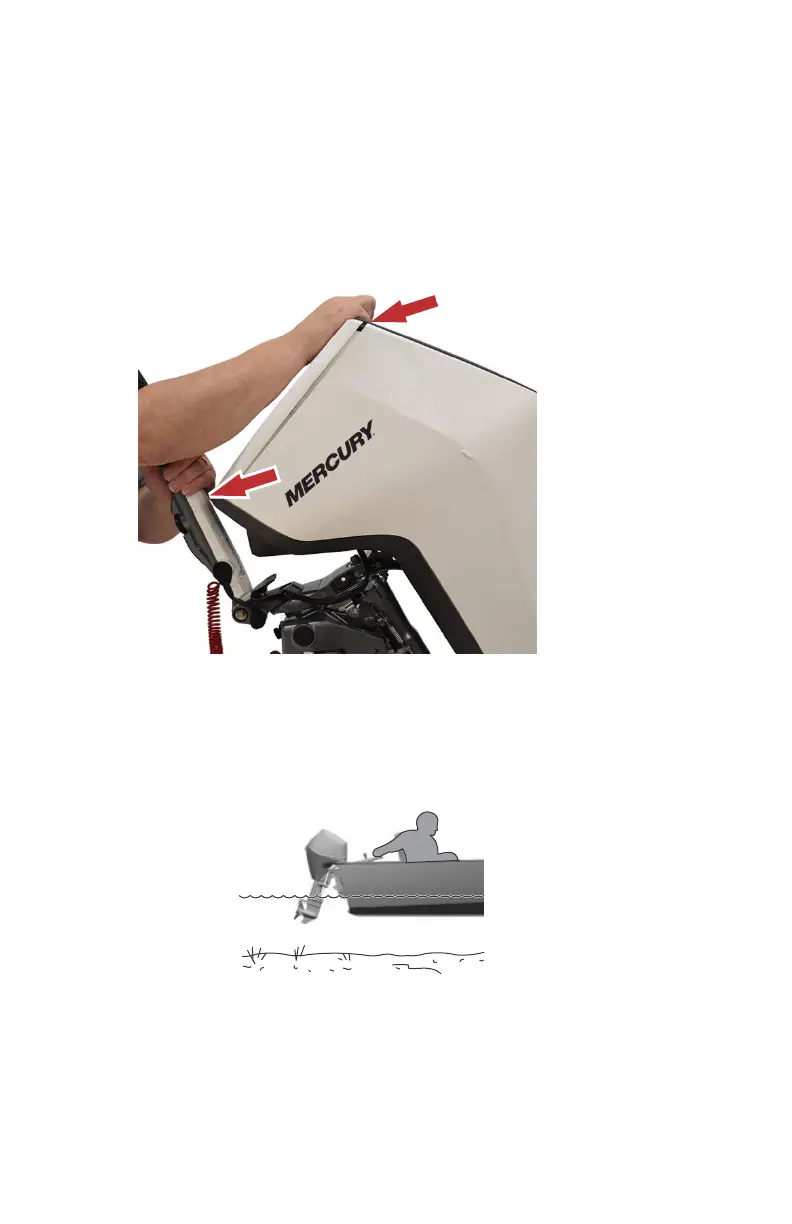

2. Push down on the tiller handle with the handle locked in the raised
position.
3. Grip the cowl hand hold and raise the outboard as far as it can travel.
NOTE:The outboard will be at or near the horizontal position at the uppermost
travel limit.
4. Slowly let the outboard down to the lowest trim position.
5. Lock the trim lock lever into position and release the outboard.
75537
SHALLOW WATER OPERATION
When operating the boat in shallow water, the outboard can be adjusted
and locked at a higher trim angle. Operate the outboard below 8.04 kph (5
mph) while trimmed up for shallow water operation. Keep the propeller blades
completely submerged in the water.
74513
FEATURES AND CONTROLS
 70 eng

Mercury Avator 7.5e Specifications

General

Power Source	Electric
Control	Tiller
Mounting	Transom
Operating Voltage	48V
Power	750W
Engine Type	Electric motor
Run Time	Up to 1 hour at full throttle
Propeller	3-blade
Warranty	2 years
Shaft Length	Short
