4. Take a hold of the top cowl grip, and raise the outboard to an elevated
trim position high enough to prevent contact with obstacles.

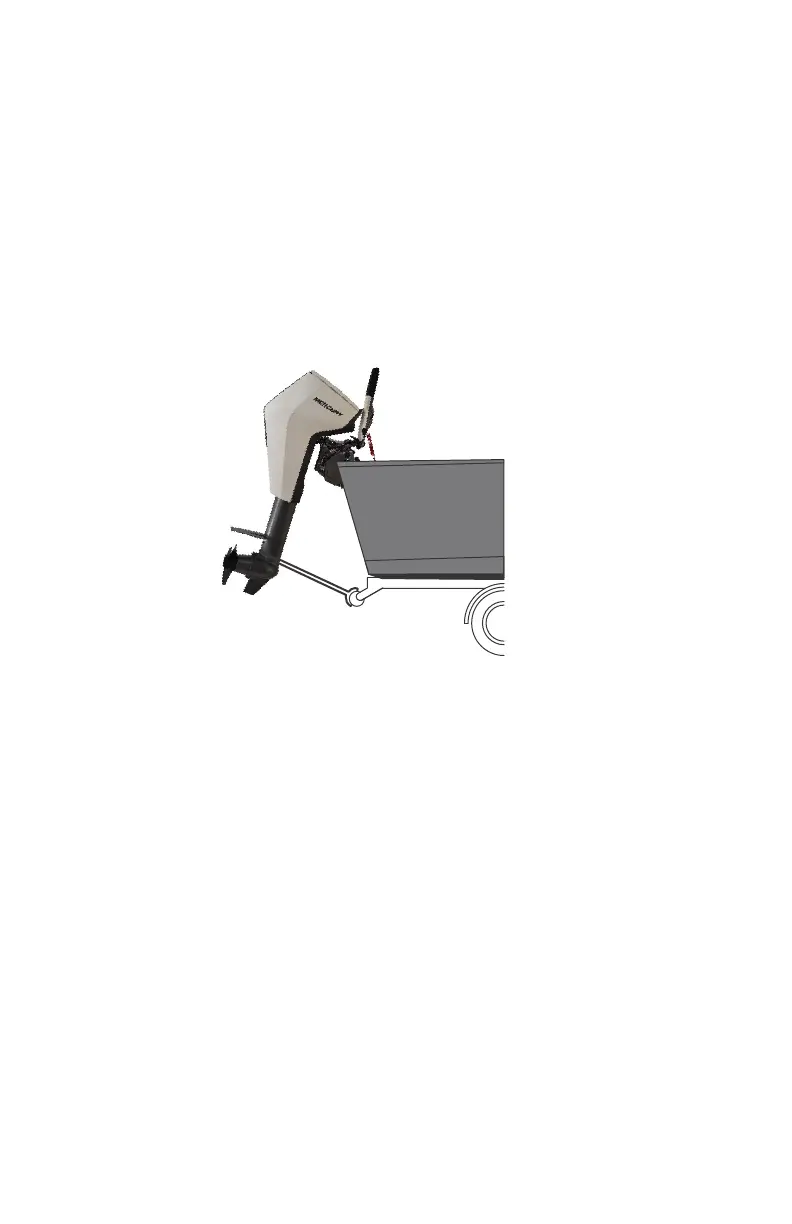

5. Insert and adjust the trailering support rod between the nose cone of the
torpedo and the transom assembly.
IMPORTANT:Do not rely on the outboard support brace to maintain proper
ground clearance for trailering. The outboard motor support brace is not
intended to support the outboard for trailering over raised obstructions. Always
be aware of terrain and obstruction heights when trailering the boat.
6. Secure the outboard support brace to the outboard with the included
bungee straps.
75519
TRANSPORTING
 62 eng

Mercury Avator 7.5e Specifications

General

Power Source	Electric
Control	Tiller
Mounting	Transom
Operating Voltage	48V
Power	750W
Engine Type	Electric motor
Run Time	Up to 1 hour at full throttle
Propeller	3-blade
Warranty	2 years
Shaft Length	Short
