Mercury Avator 7.5e User Manual

5. Rear cowl upper panel
The cowl panels must be installed in the following sequence: (The port and rear
cowl panels may not need to be installed for some procedures).
1. Rear cowl upper panel
2. Port cowl panel
3. Starboard cowl panel
4. Front cowl lower panel
5. Front cowl upper panel
FRONT COWL UPPER PANEL REMOVAL
1.
Remove the battery. Refer to Battery Removal.
2. Remove the four short hex head screws from the front cowl upper panel.

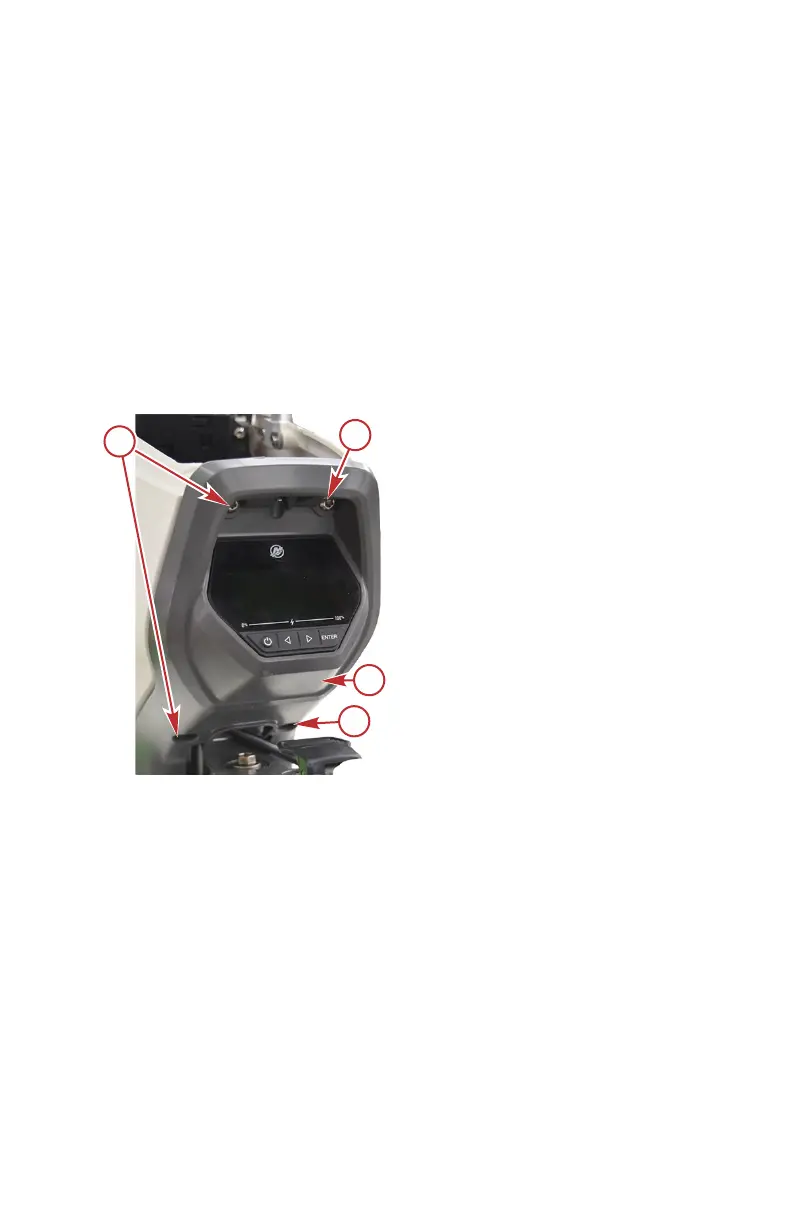

Tiller model shown, other models
similar.
a - Short hex head screws (4)
b - Front cowl upper panel
3. Remove the front cowl upper panel from the outboard.
a
a
a
b
a
76043
INSTALLATION
eng 47 

Mercury Avator 7.5e Specifications

General

Power Source	Electric
Control	Tiller
Mounting	Transom
Operating Voltage	48V
Power	750W
Engine Type	Electric motor
Run Time	Up to 1 hour at full throttle
Propeller	3-blade
Warranty	2 years
Shaft Length	Short
