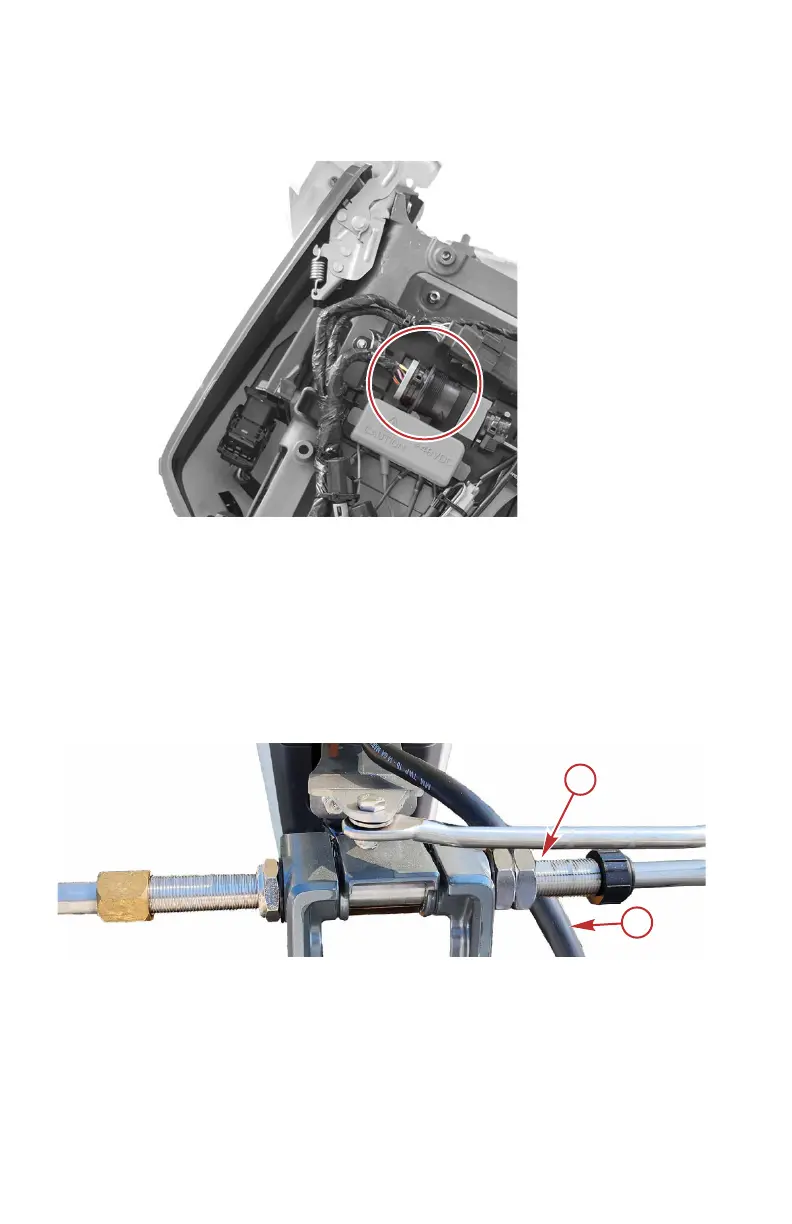

7. Secure the 14‑pin data harness to the outboard just behind the connector
with a cable tie.
76098
8. Verify the connectors are connected by pulling on the connections.
NOTE:The connectors should be aligned and seated flush for a proper
connection.
9. Route the 14‑pin data harness alongside the outboard main bracket
assembly toward the front of the outboard and down and around the front
of the outboard to be positioned exiting right above the steering bracket
assembly.
10. Route the 14‑pin harness under the steering tube assembly.
a - Steering assembly
b - 14‑pin harness
a
b
76164
INSTALLATION
 56 eng
