Mercury Avator 7.5e User Manual

SmartCraft CONNECT Serial Number
SN:
Refer to SmartCraft CONNECT quick reference guide for the link to
configuration instructions online.
1.
Remove the battery from the outboard. Refer to Battery Removal.
2.
Remove the front cowl upper panel from the outboard. Refer to Front
Cowl Upper Panel Removal.
3.
Remove the front cowl lower panel from the outboard. Refer to Front
Cowl Lower Panel Removal.
4.
Remove the starboard cowl panel from the outboard. Refer to Starboard
Cowl Panel Removal.

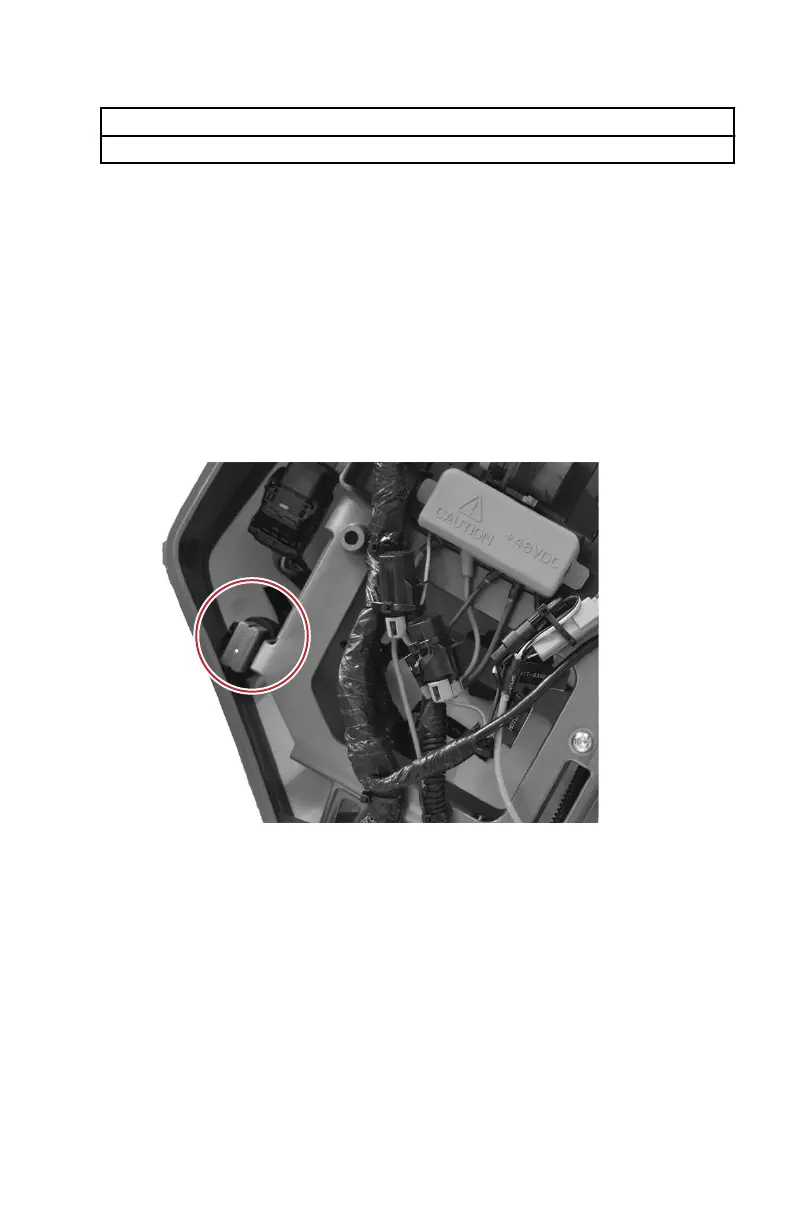

5. Remove and discard the terminator connector cap from the 10‑pin data
harness connection.
76053
6. Connect the 10‑pin connector on the SmartCraft CONNECT to the
outboard wiring harness connector.
7. Verify the connectors are connected by pulling on the connections.
NOTE:The connectors should be aligned and seated flush for a proper
connection.
IMPORTANT:Do not secure the SmartCraft CONNECT to the main battery
bracket assembly. The cable ties will interfere with the battery.
8. Install the SmartCraft CONNECT on the outboard and secure the
SmartCraft CONNECT harness to the outboard with the cable ties.
FEATURES AND CONTROLS
eng 79 

Mercury Avator 7.5e Specifications

General

Power Source	Electric
Control	Tiller
Mounting	Transom
Operating Voltage	48V
Power	750W
Engine Type	Electric motor
Run Time	Up to 1 hour at full throttle
Propeller	3-blade
Warranty	2 years
Shaft Length	Short
