Freeze Frame Screen
The Freeze Frame screen displays previously recorded faults, even when they are no longer active. It also saves a snapshot of
numerous data items in the instant that the fault occurred. Faults are listed in the order that they occurred, starting with the
most recent. This history may be cleared by clicking the gear icon in the upper right corner of the display and selecting "Clear
History."

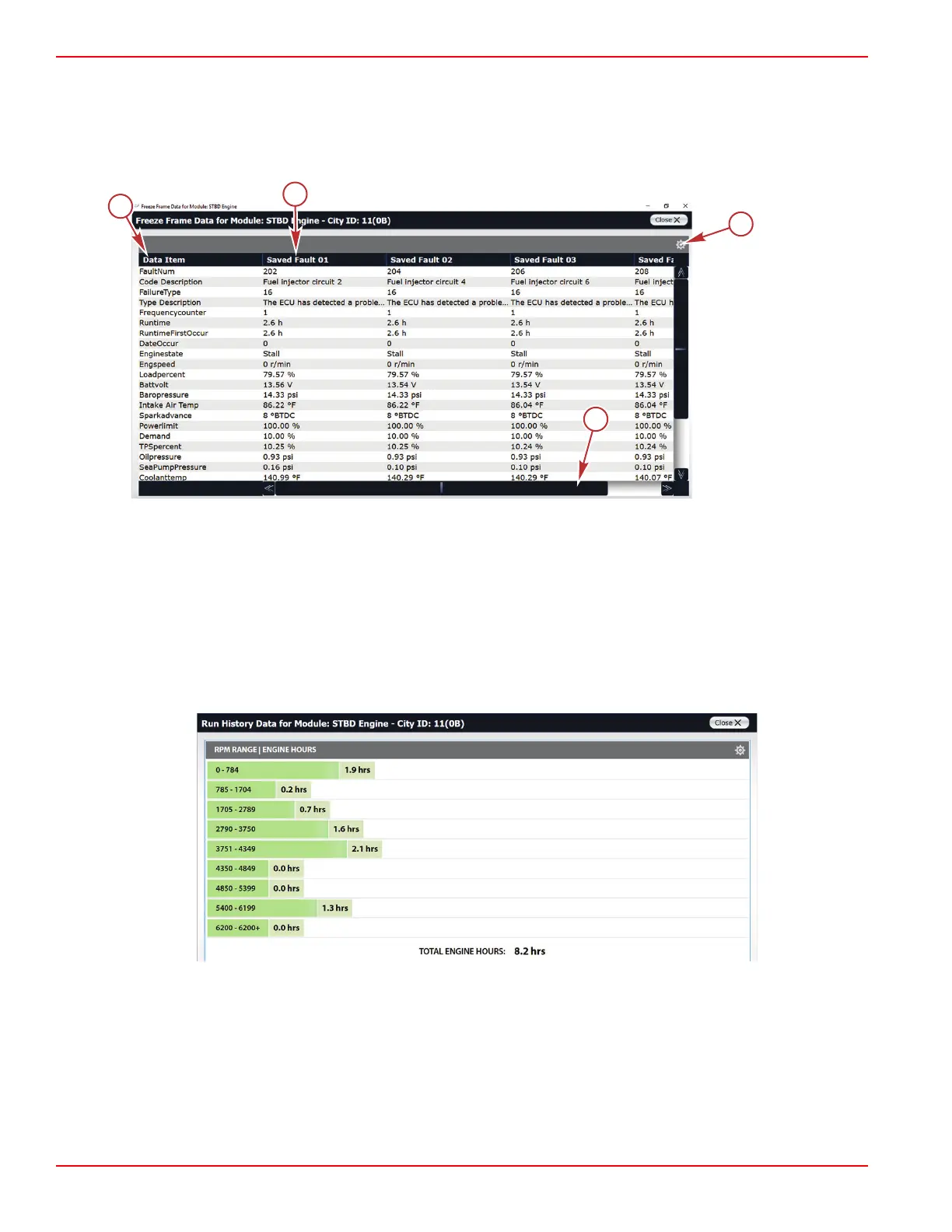

a - Data item recorded
b - Most recent occurred fault
c - Gear icon, click for clear history option
d - Scroll bar to view all recorded faults
Run History Screen
The Run History screen displays a list of RPM ranges and the corresponding run time of the engine inside each of those
ranges. It also displays the total engine run time at the bottom of the screen. The data on this screen cannot be cleared or reset
with the CDS G3 tool.
Run History screen
Troubleshooting with the Computer Diagnostic System (CDS G3)
