Live Data Screen
The Live Data screen, which is available after the eBOM and engine module data screen have been selected, displays
real‑time engine information. The three columns display the sensor name (data items), their values, and a plain‑text description
of each item. Note that the columns can be arranged in different order depending upon the operator's preference.
Preferred units for temperature, speed, flow rate, volume, and pressure may be selected from the tools/options/units tab on the
home screen.

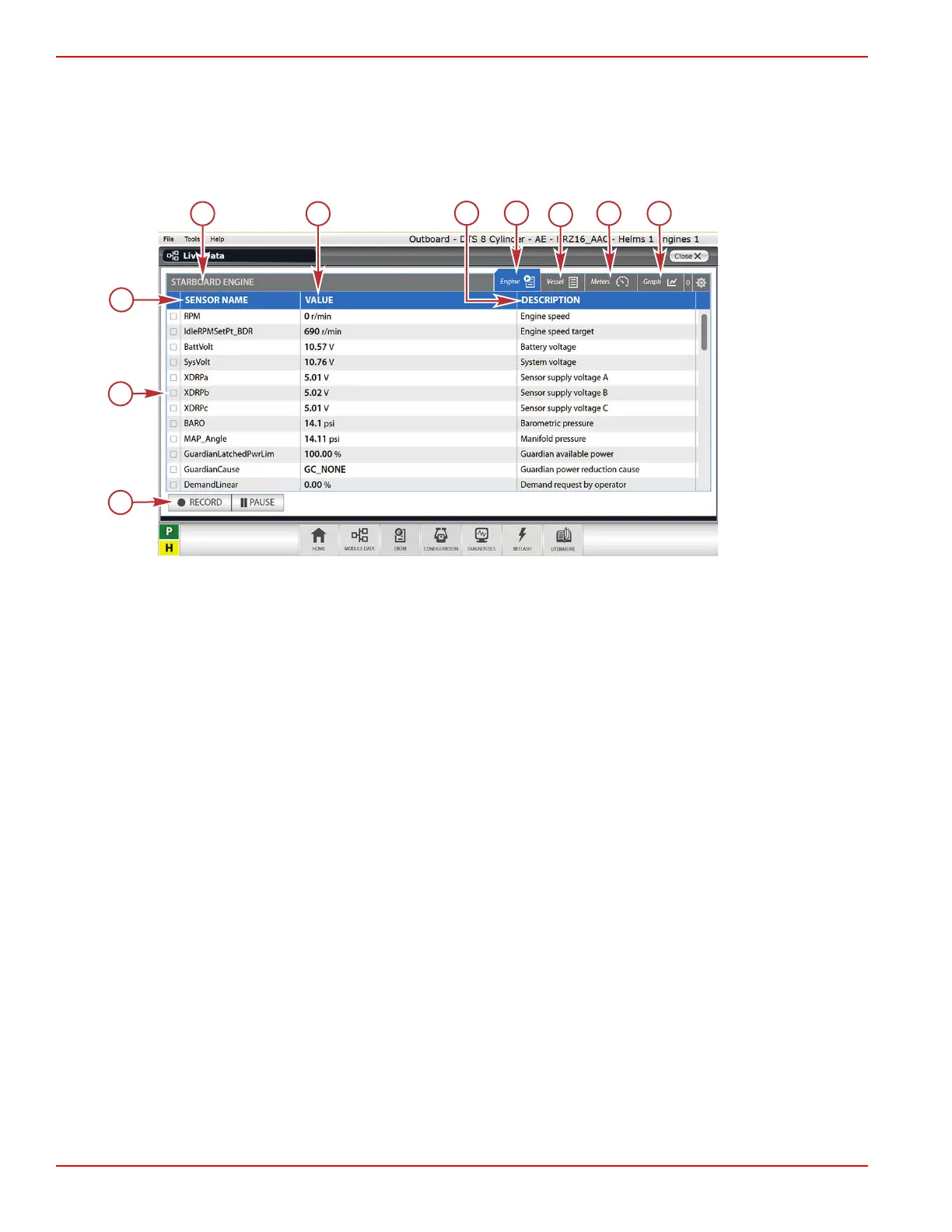

Typical Live Data screen
a - Sensor name
b - Module being referenced, the starboard engine in this example
c - Data value
d - Plain‑text description
e - Engine tab
f - Vessel tab
g - Meters tab
h - Graph tab
i - Record and Pause buttons
j - Check boxes to select data on graph and meters tab
The following table explains the line entries on the Live Data screen. Note that some entries appear on the Engine (Eng.) tab,
and some on the Vessel (Ves.) tab. The information in the Name, Description, and Value columns correspond directly to what
is displayed in CDS G3.
CDS G3—Live Data
