Mercusys MW330HP User Manual

MW330HP
300Mbps High Power Wireless N Router
• Get IPv6 Address - Select Auto or Static according to the information provided by your
ISP.
• Address - The IPv6 address of the router's WAN interface.
• Prefix Length - The IPv6 prefix length of the router's WAN interface.
• Gateway - The default IPv6 gateway for the router's WAN interface.
• Manually set DNS server - The DNS addresses will be automatically assigned to the
router. You can also set manually according to your needs.
• Primary/Secondary DNS - Enter the primary/Secondary IPv6 DNS server address
provided by your ISP.
• Enable Prefix Delegation - Select to get a prefix delegation by DHCPv6 server from the
ISP. Clients in LAN will generate an IPv6 address with this prefix.
5.1.4 IPTV

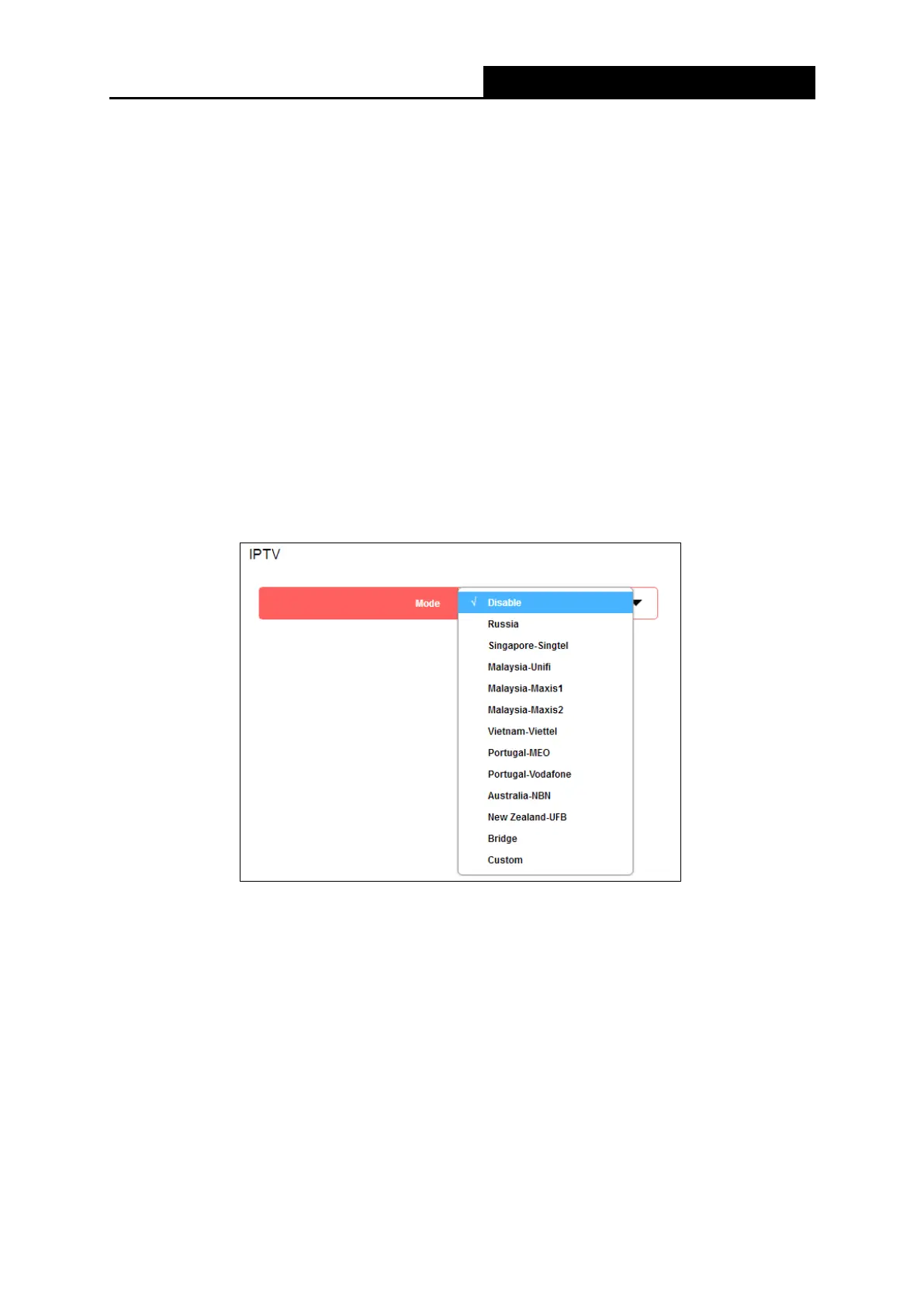

Go to Network→IPTV, you can configure IPTV setup to enable IPTV service provided by your
ISP.
To configure IPTV, follow the steps below.
1. Select the appropriate mode according to your ISP.
• Select Bridge if your ISP is not listed and no other parameters are required.
• Select Custom if your ISP is not listed but provides necessary parameters.
2. After you have selected a mode, the necessary parameters, including the LAN port for
IPTV connection, are predetermined.
3. Click Save.
4. Connect the set-top box to the corresponding LAN port which is predetermined or you
have specified.
- 24 -

Mercusys MW330HP Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	-90 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	-78 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	-74 dBmW
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	9 V
Power source type	AC
Antenna gain level (max)	7 dBi
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	127 mm
Width	192 mm
Height	36 mm
