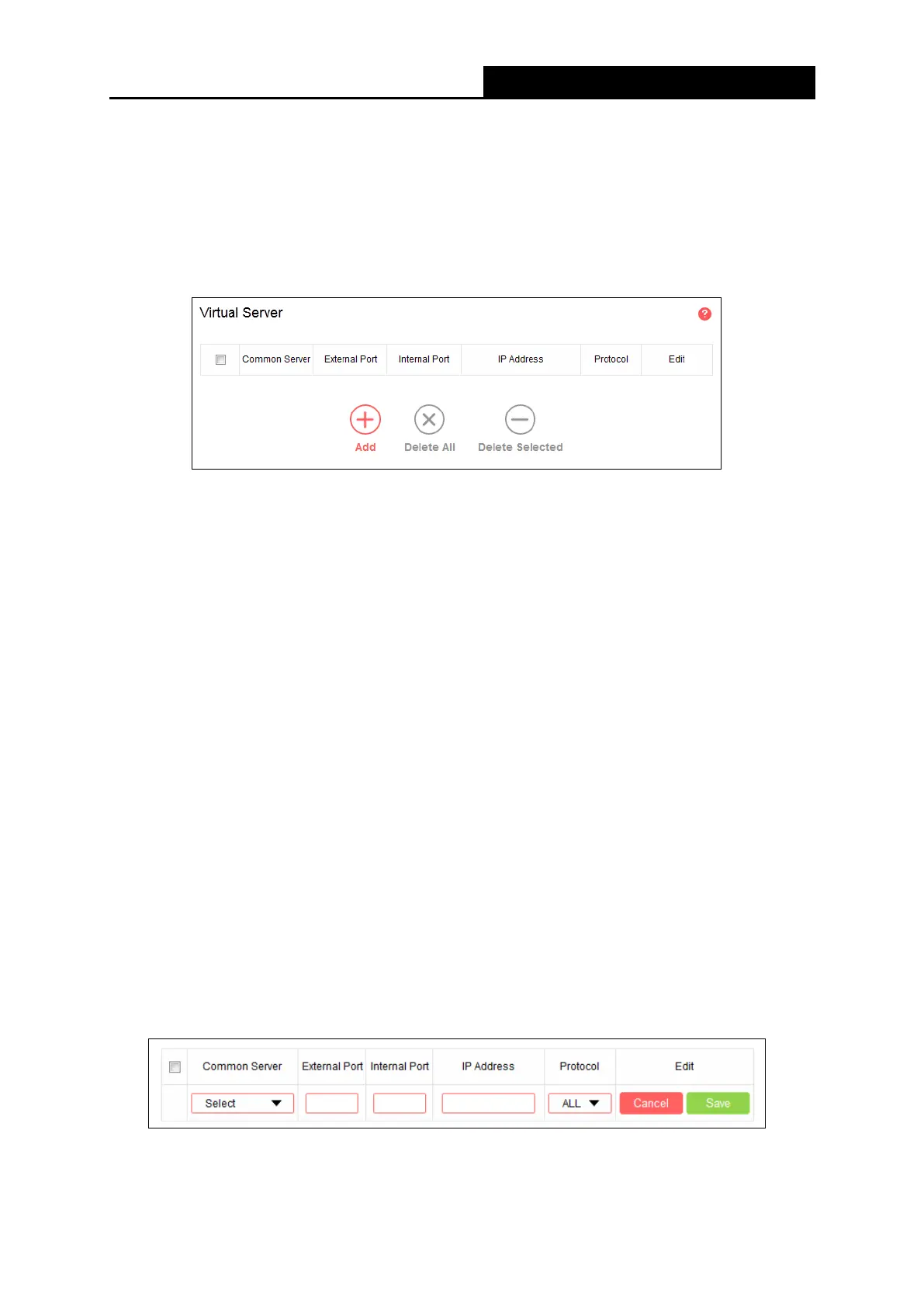

5.4.1 Virtual Server
Go to Advanced Users→Virtual Server, and then you can view and add virtual server on the
page. Virtual server can be used for setting up public services on your LAN.
• Common Server - Some common services already exist in the drop-down list.
• External Port - The numbers of External Service Ports. You can enter a service port or a
range of service ports (the format is XXX - YYY; XXX is the Start port and YYY is the End
port).
• Internal Port - The Internal Service Port number of the PC running the service application.
You can leave it blank if the Internal Port is the same as the External Port, or enter a
specific port number when External Port is a single one.
• IP Address - The IP address of the PC running the service application.
• Protocol - The protocol used for this application, either All (all protocols supported by the
router), TCP or UDP.
• Edit - Here you can edit an existing entry.
• Add - Click to add a new rule entry.
• Delete All - Click to delete all the entries in the table.
• Delete Selected - Click to delete selected entries in the table.
To set up a virtual server entry:
1. Click Add.
2. Select a service from drop-down list to automatically populate the appropriate port
number in the External Port field. If the service that you want to use is not listed, enter the
- 38 -

Mercusys MW330HP Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	-90 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	-78 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	-74 dBmW
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	9 V
Power source type	AC
Antenna gain level (max)	7 dBi
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	127 mm
Width	192 mm
Height	36 mm
