Mercusys MW330HP User Manual

MW330HP
300Mbps High Power Wireless N Router
• Add - Click to add a new rule entry.
• Delete All - Click to delete all the entries in the table.
• Delete Selected - Click to delete selected entries in the table.

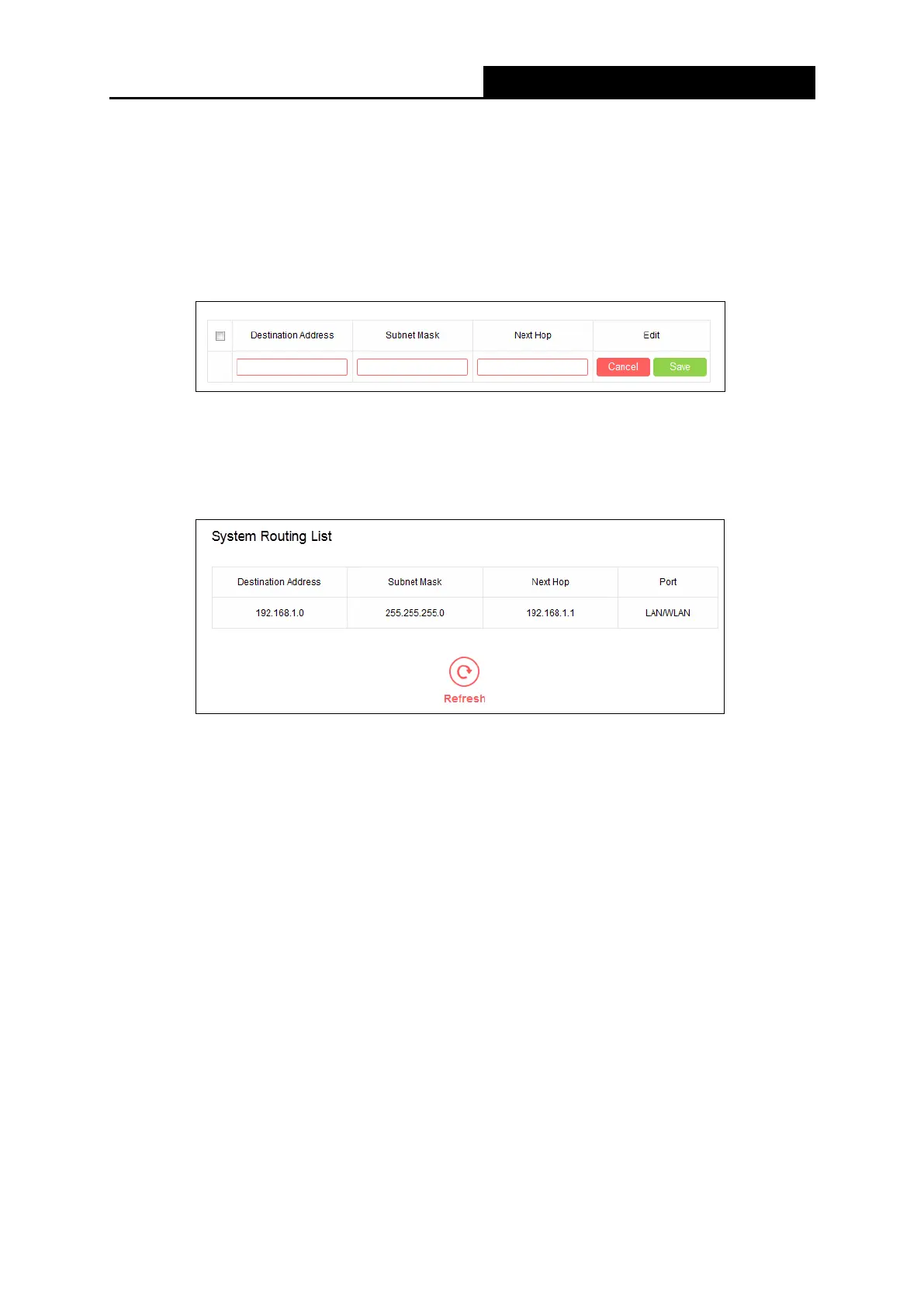

To add a static routing entry:
1. Click Add.
2. Enter the parameters in the corresponding fields.
3. Click Save to make the settings effective.
●
System Routing List
• Destination Address - The address of the network or host to which the static route is
assigned.
• Subnet Mask - The subnet mask determines which portion of an IP address is the network
portion, and which portion is the host portion.
• Next Hop - The IP address of the gateway device that allows for contact between the
router and the network or host.
• Port - Displays either the Destination IP Address is on the LAN/WLAN or on the WAN.
5.4.5 Dynamic DNS
Go to Advanced Users→Dynamic DNS, and you can configure the Dynamic DNS function.
- 41 -

Mercusys MW330HP Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	-90 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	-78 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	-74 dBmW
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	9 V
Power source type	AC
Antenna gain level (max)	7 dBi
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	127 mm
Width	192 mm
Height	36 mm
