Mercusys MW330HP User Manual

MW330HP
300Mbps High Power Wireless N Router

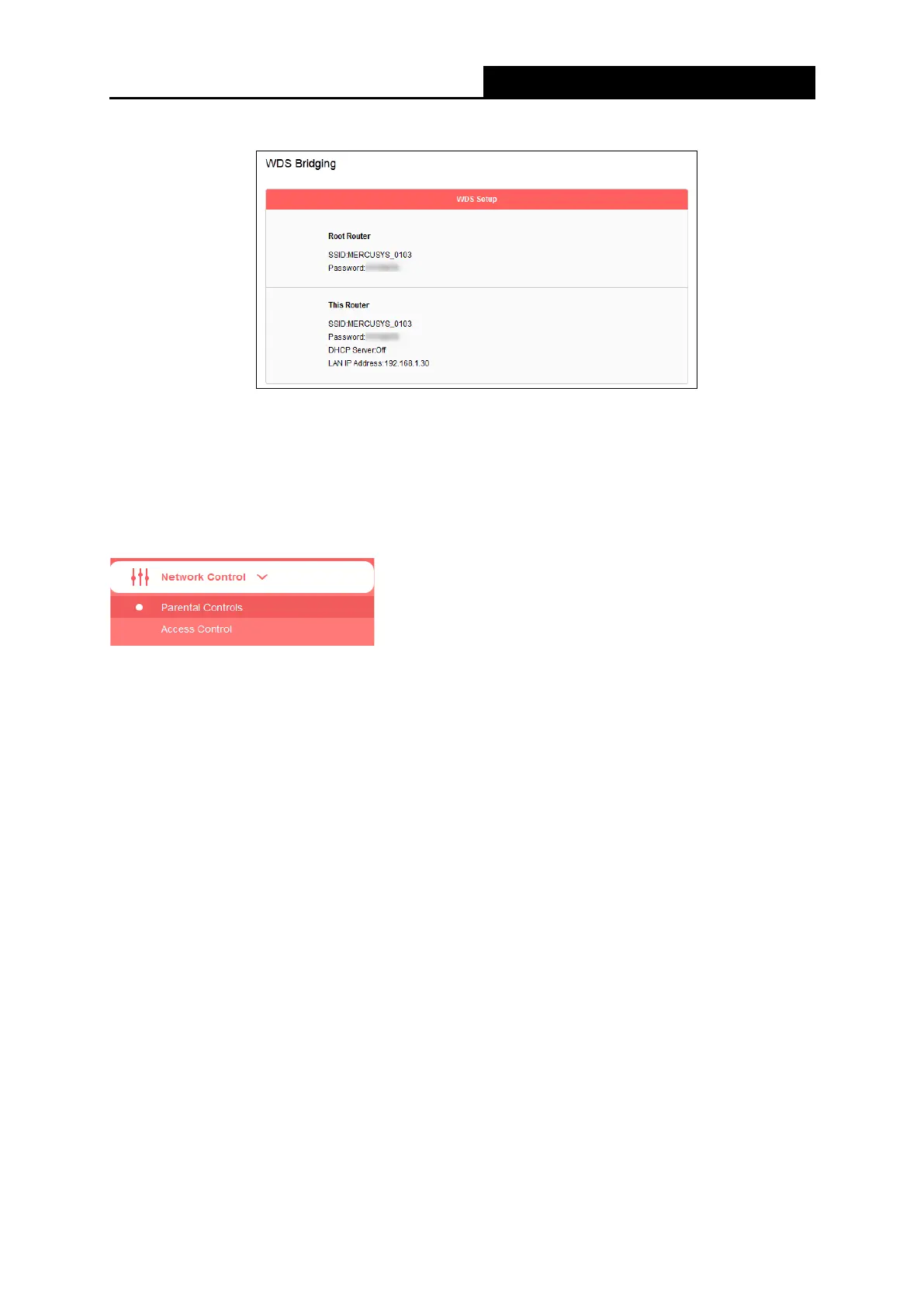

4. Check the parameters and click Finish to complete the setup.
Note: If you have changed the LAN IP address of your router during the setup, you need to log
in to the web management page using the domain name (http://mwlogin.net) or the new LAN IP
you have just set.
5.3 Network Control
There are two submenus under the Network Control menu: Parental Controls and Access
Control. Click any of them to configure the corresponding function.
5.3.1 Parental Controls
Go to Network Control→Parental Controls, and then you can configure the parental controls
in the screen. The Parental Controls function can be used to control the internet activities of
the child, limit the child to access certain websites and restrict the time of surfing.
- 32 -

Mercusys MW330HP Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	-90 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	-78 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	-74 dBmW
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	9 V
Power source type	AC
Antenna gain level (max)	7 dBi
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	127 mm
Width	192 mm
Height	36 mm
