Mercusys MW330HP User Manual

MW330HP
300Mbps High Power Wireless N Router

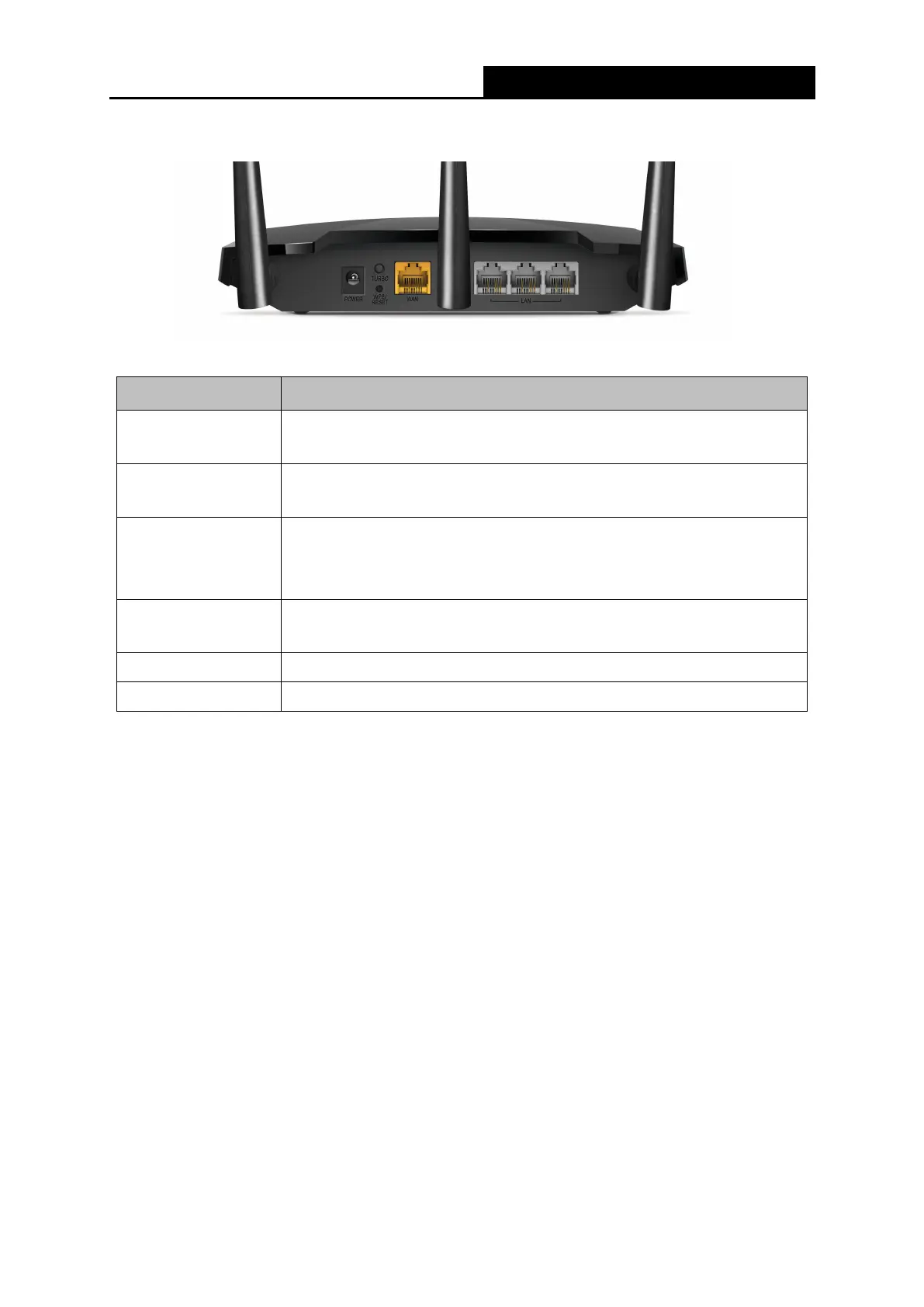

1.2.2 The Rear Panel
The following items are located on the rear panel (View from left to right).
Items
Description
POWER Socket
The power socket is where you will connect the power adapter.
Please use the power adapter provided with this router.
TURBO Button
Press this button to enable Turbo function to enhance your Wi-Fi
signal and expand Wi-Fi coverage.
WPS/RESET Button
Press this button for 1 second to use WPS function.
Press and hold this button for more than 5 seconds to reset the
router.
WAN Port
This port is where you will connect the router to the DSL/cable
modem, or Ethernet.
LAN Ports
These ports connect the router to the local devices.
Wireless Antennas
To receive and transmit the wireless data.
- 3 -

Mercusys MW330HP Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	-90 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	-78 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	-74 dBmW
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	9 V
Power source type	AC
Antenna gain level (max)	7 dBi
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	127 mm
Width	192 mm
Height	36 mm
