Mercusys MW330HP User Manual

MW330HP
300Mbps High Power Wireless N Router

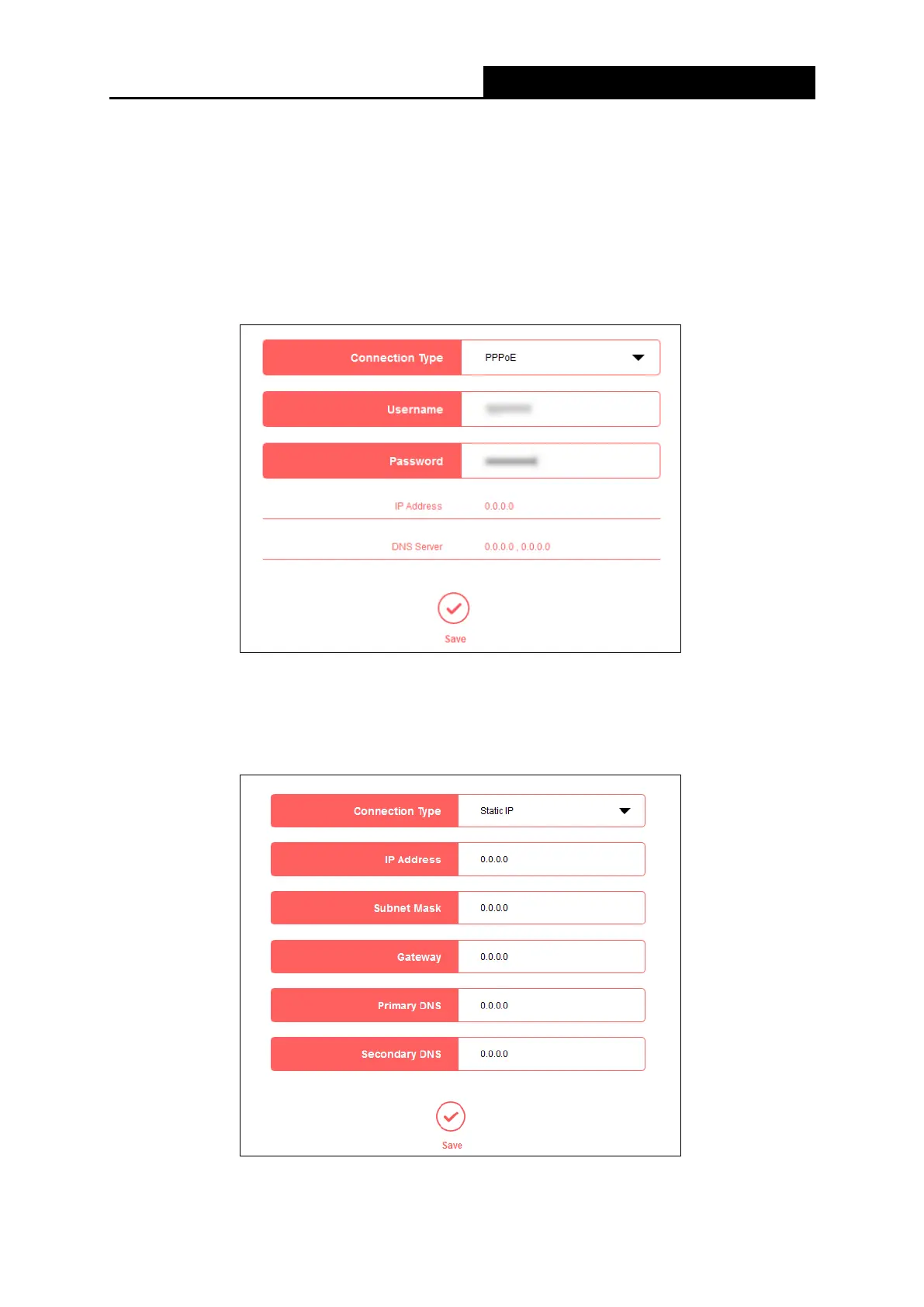

4.2 Network
Choose Network, then you can view and customize the basic internet settings on the page.
1. PPPoE
Select this type if you use DSL (Digital Subscriber Line) service and are provided with a
username and password by the ISP.
2. Static IP
Select this type if your ISP provides a static IP address, subnet mask, gateway and DNS
settings.
- 10 -

Mercusys MW330HP Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	-90 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	-78 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	-74 dBmW
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	9 V
Power source type	AC
Antenna gain level (max)	7 dBi
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	127 mm
Width	192 mm
Height	36 mm
